PVC Curtain Polishing Room Painting Booth
| Price: |
US $ 4000-6000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
YFT- D6000 Standard configuration - working principle
Start cabinet fan, the electric damper on exhaust pipe is opened. The air in work area through the air return system filter, the filtered air exhaust the cabin by fan exhaust pipe, and the small parts air sent into cabin top plenum by fan control.Plenum configure the second filter system(F5 ceiling filter cotton EN779, in the air suspended particles above 10μm filter and clean 100%, for suspended particles 1μm filtration efficiency up more than 20%, for suspended particles 5μm filtration efficiency up to 95%). Airflow run down from top through top filter system filtering and produce airflow in the booth, which made lots of mist, the dust and exhaust air drain away by air return collecting tank, the cycle like this keep booth cleaning.Basic information| STANDARD DESIGN | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |
| CABIN STRUCTURE | |
| Internal Dimension | 6300×3450×2800mm (L×W×H) |
| External Dimension | 7500×3550×3260mm(L×W×H) |
| BASEMENT | Without basement |
| Return air design form | Back oblique flow Exhaust gas collection box |
| Filter area | 2.8m2 |
| CABIN | |
| Back wall panel | 50mm wall panel, wallboard filter material EPS |
| PVC Soft curtain | (Colors: gray, blue, red, yellow) |
| Form of soft curtain | PVC curtain |
| Arrangement and number | 1 set of front, side 2 sets
Color: middle transparent, yellow ends |
| CEILING LIGHTING | |
| Quantity and power | 8 sets the boxes, each 4X36W, a total of 1152W |
| Lighting arrange way | On both sides |
| Lighting description | Protection grade IP55, CE certified electronic ballasts, OSRAM lamp |
| Total light intensity | >1000Lux |
| FILTRATION SYSTEM | |
| Pre-filter | Fiberglass paint-resistance filter, G2 grade |
| Ceiling filter | F5 grade filter cotton, SP-600G model |
| Bottom paint mist collecting | Fiberglass paint-resistance filter, G2 grade |
| EXHAUST SYSTEM | (Half-cycle) |
| Exhaust fan | Direct-type turbine fan |
| Exhaust fan power and motor description | 1×5.5KW,970RPM,380V,50HZ
Motor through the CE standard |
| Parameter of exhaust fan | 18000m3/h ;650pa |
| PIPELINE CONFIGURATION | |
| Straight | 4 pieces |
| 90° | 1 piece |
| Reducers | 1 piece |
| CONTROL SYSTEM | |
| Implementation of standards | BS EN 60204:2006+A1:2009 |
| Features | Fan start, emergency stop switch, failure indication |
| Special Item | Rated power:6.5KW |

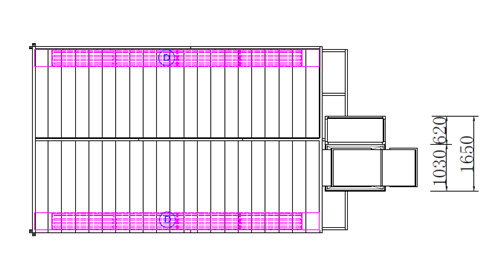

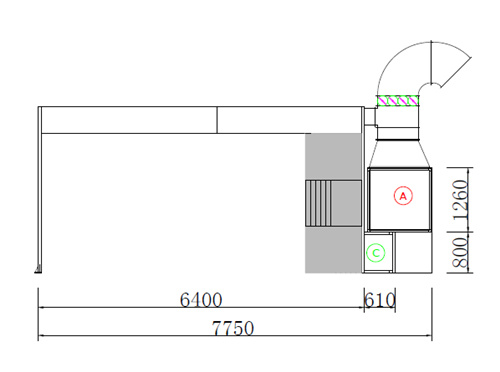

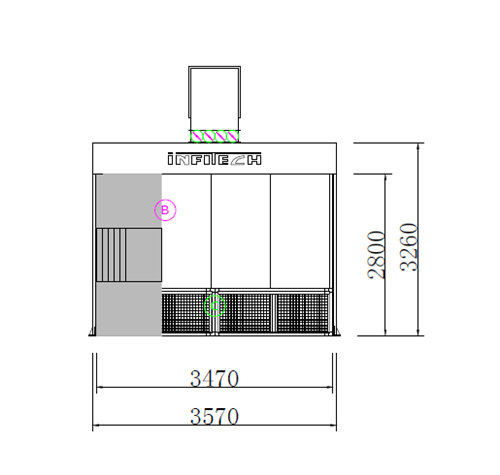

DESIGN DIAGRAM
