Premium Paint Spray Booth It-701 with IR Heating System
| Price: |
US $ 12000-18000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Premium paint spray booth IT-701 with IR heating system
Basic information
| STANDARD DESIGN | BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 |
| BOOTH DIMENSIONS | |
| Internal dimensions | 7000 X 4000 X 2800mm (L X WX H) |
| External dimensions | 7110 X 5560 X 3810mm (L X W X H) |
| BASEMENT | |
| Base design | Galvanized sheet bending forming, full grids
Basement(H): 350mm and can be adjustable |

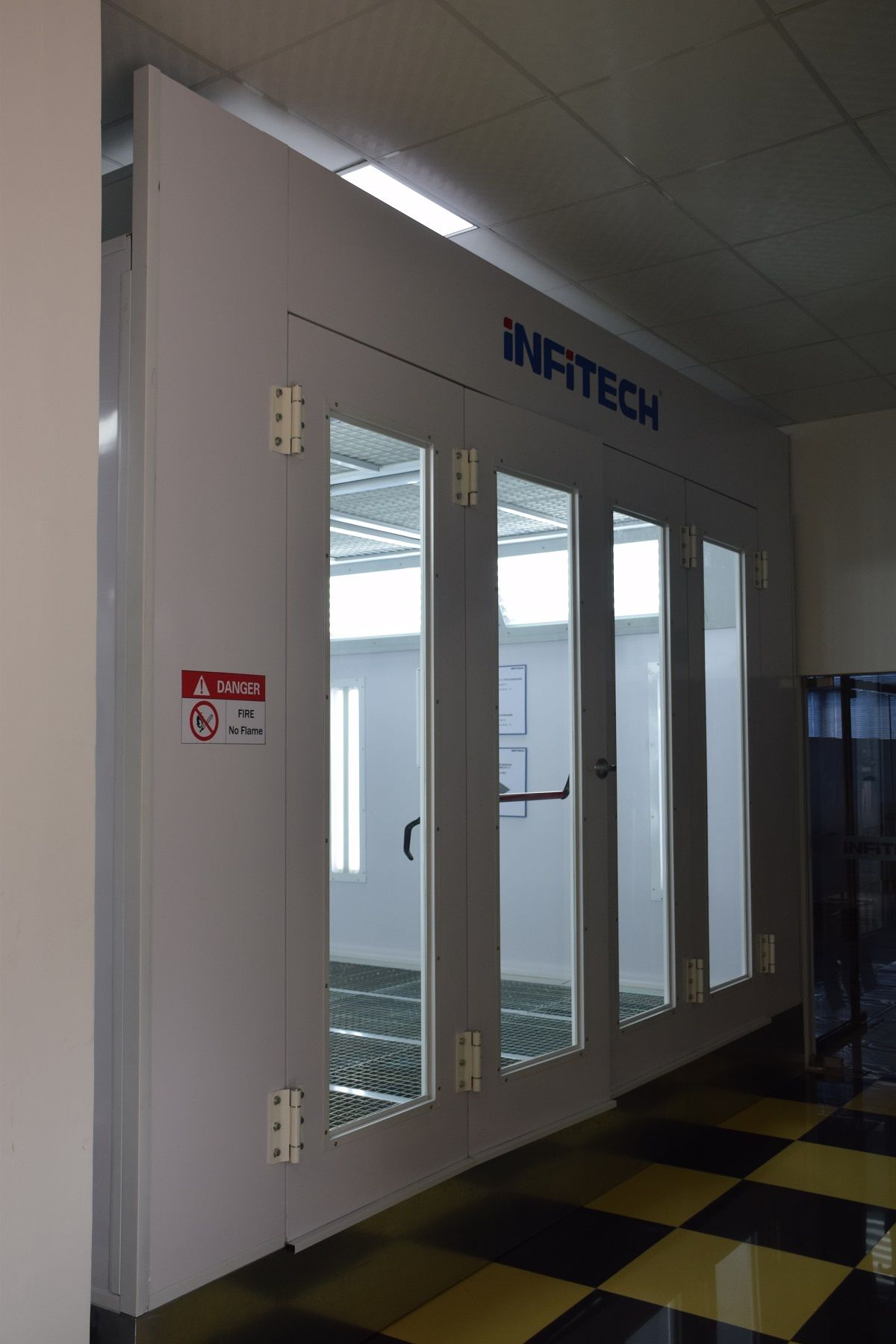

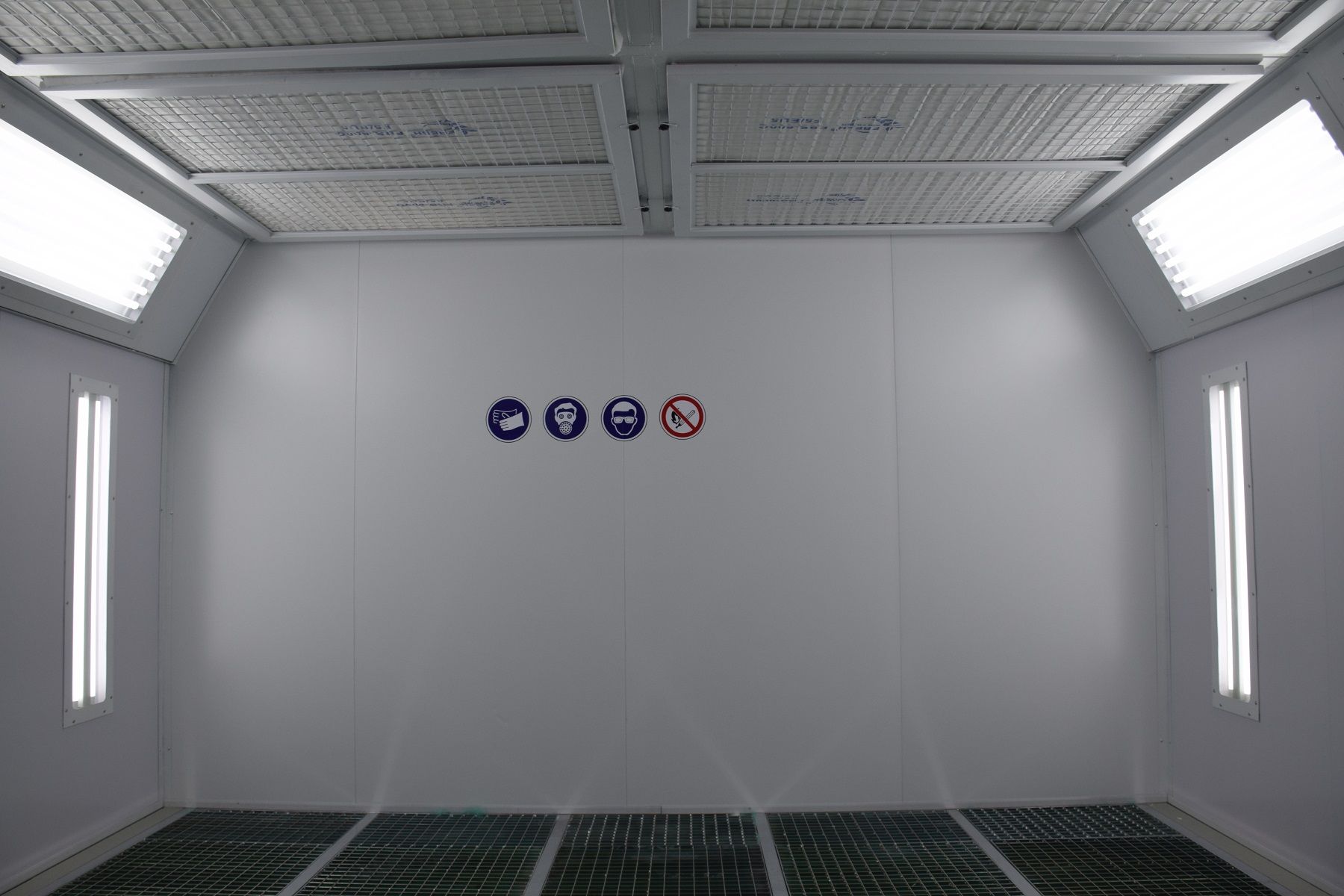

| Carrying capacity of the grids | 650 kg/wheel |
| Filter area | 28m2 |
| Drive-in-ramps | optional |
| Grid description | Size: 997X756mm, 40X3mm, pressed steel grating grille instead of traditional twisted steel for the rail steel grating. Aesthetics, durability, stress resistance are the most important features of such steel grating. |
| CABIN | |
| Cabin structure | Vertical wall insert |
| Plenum height | 600mm |
| WALL PANEL | |
| Wall panel | 50mm wall panel, wallboard filler material: heat-resistant rock wool panel |
| Top panel | 50mm wall panel, wallboard filler material: heat-resistant rock wool panel |
| Edge material | 1.2mm galvanized steel plate bending forming |
| ENTRANCE DOOR | |
| Form | Manual door, 2 + 1 structure |
| Size | 3200 X 2700mm (W X H) |
| Arrangement and quantity | 1 set |
| Door description | Containing frame, with safety glass observation window |
| PERSONNEL DOOR | |
| Form | Frame structure |
| Size | 800 X 2000 mm (W×H) |
| Quantity | 1 set |
| Door description | With safety glass observation window |
| CEILING LIGHTING | (LED lamp) |
| Quantity and power | 10 sets of light fixtures, each 6 X 18W, 1080W total |
| Lighting arrangement | On both sides |
| Lighting description | Protection grade IP55 |
| Brightness | > 900Lux |
| FILTRATION SYSTEM | |
| Pre-filter | EU3 grade pre-filter pocket filter |
| Ceiling filter | F5 class filter cotton, Model SP-600G |
| Bottom paint mist-collection | Fiberglass paint-resistance filters |
| Exhaust filter | Simple activated carbon filter mat, M type |
| INLET SYSTEM | |
| Inlet fan | Direct-type turbine fan |
| Power and motor description | 7.5KW, 970rpm, 380V, 50Hz, SIEMENS |
| Parameter of inlet fan | 28,000m3/h, 650pa |
| EXHAUST SYSTEM | |
| Exhaust fan | Direct-type turbine fan |
| Power and motor description | 7.5KW, 970rpm, 380V, 50Hz, SIEMENS |
| Parameter of exhaust fan | 28,000m3/h, 650pa |
| Empty loaded air speed | +/- 0.28m/s |
| NOISE | <78db |

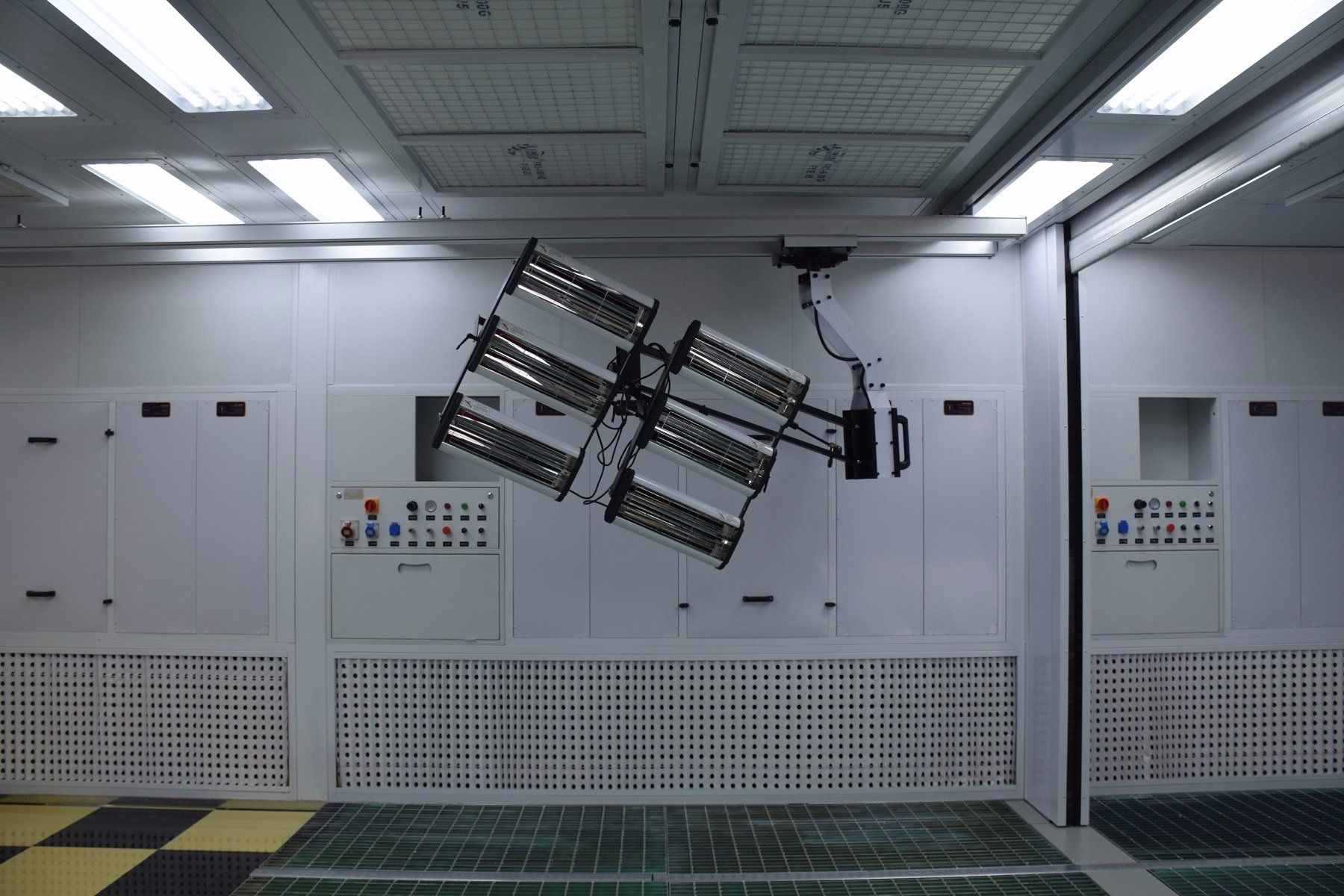

| INFRARED RAY HEATING SYSTEM | |

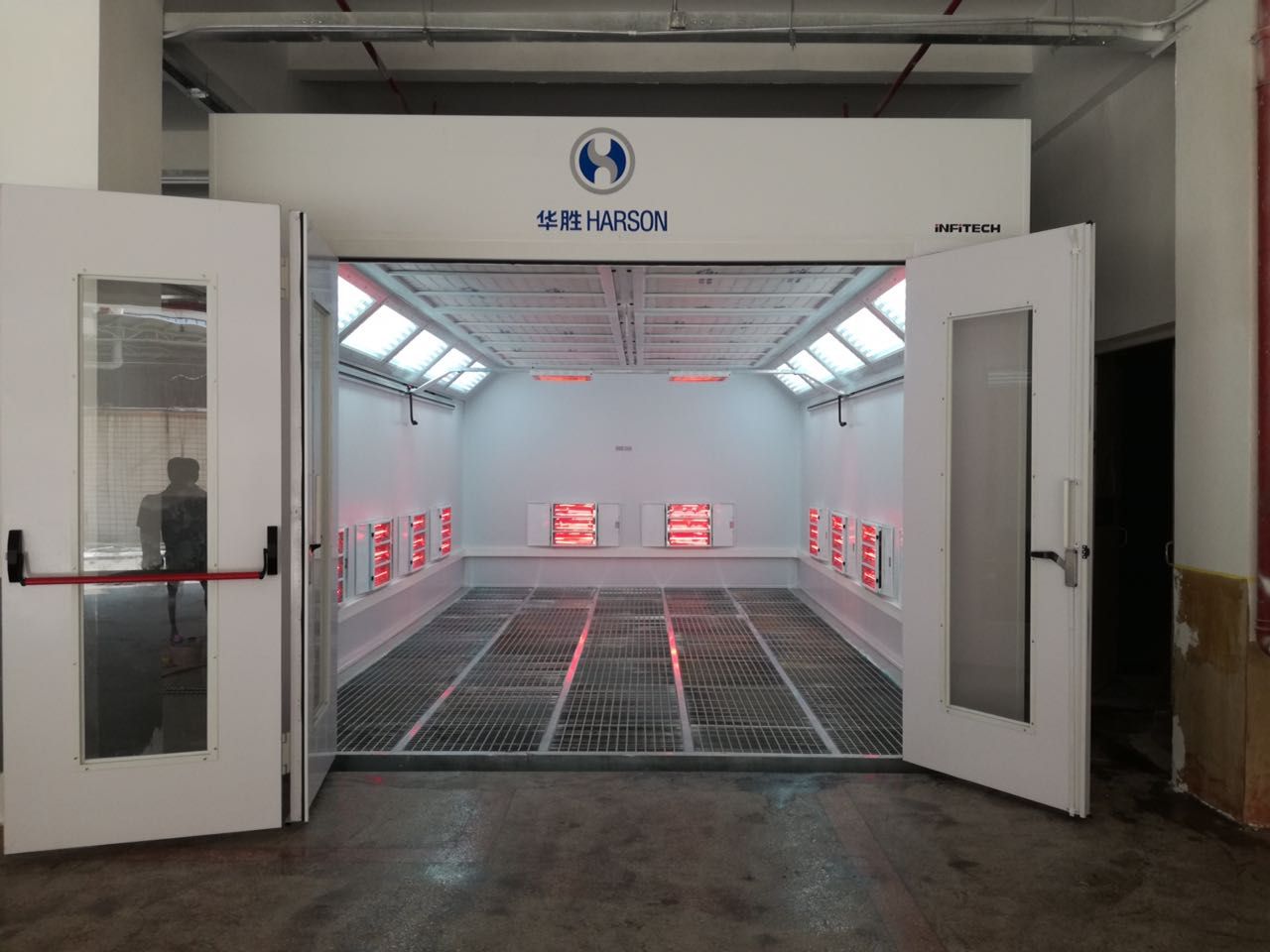

| Drying form | Infrared ray |
| Power | 10 units,3X1kW/unit,total 30kW |
| Arrangement | 2 x 4 sets on both sides, 2 sets at the rear wall |
| PIPELINE CONFIGURATION | |
| Straight | 4 pieces |
| 90°elbow | 1 piece |
| 45°elbow | 1 piece |
| Rain hat | 1 piece |
| Reducer | 2 pieces |
| MANUAL DAMPER | 1 piece |
| ELECTRIC DAMPER | 1 piece |

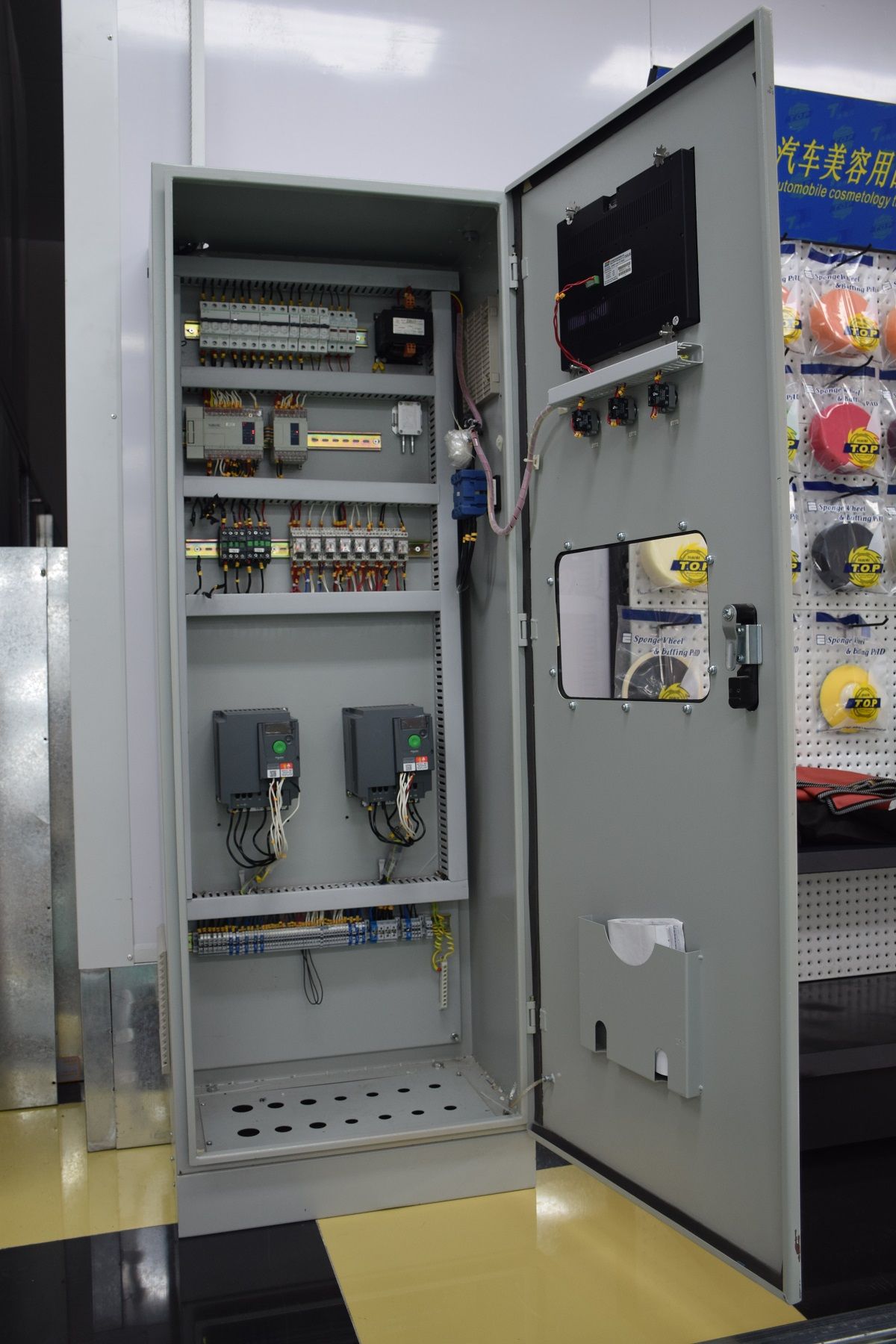

| CONTROL SYSTEM | |
| Implementation standards | Standard Y/Δ step-down start control system |
| PLC programmable logic controller | PLC control, higher reliability, lower failure rate |
| Pressure detection | Pressure gauge indicates pressure inside the booth. |
| Features | Painting, levelling, baking, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection |
| SPECIAL ITEM | Rated power: 48KW |
Show room:
| Prod Model: |
IT-701 |
| Empty Loaded Air Speed: |
+/-0.28m/S |
| Voltage: |
380V, Your Special Voltage Is Accepted. |
| Fan Capacity: |
28000 M3/H |
| Brightness: |
>900lux |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Infrared Ray |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
