Popular Water-Based Paint Machine
| Price: |
US $ 5000-15000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Empty Loaded: |
Greater Than or Equal to 0.25m/S |
| Motor Brand: |
Ce |
| Voltage: |
380V Your Speical Voltage Is Accepted. |
| Warranty Time: |
2 Years |
| Total Fan Capacity: |
28000m3/H |
| Brightness: |
1000lux |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
Product Description

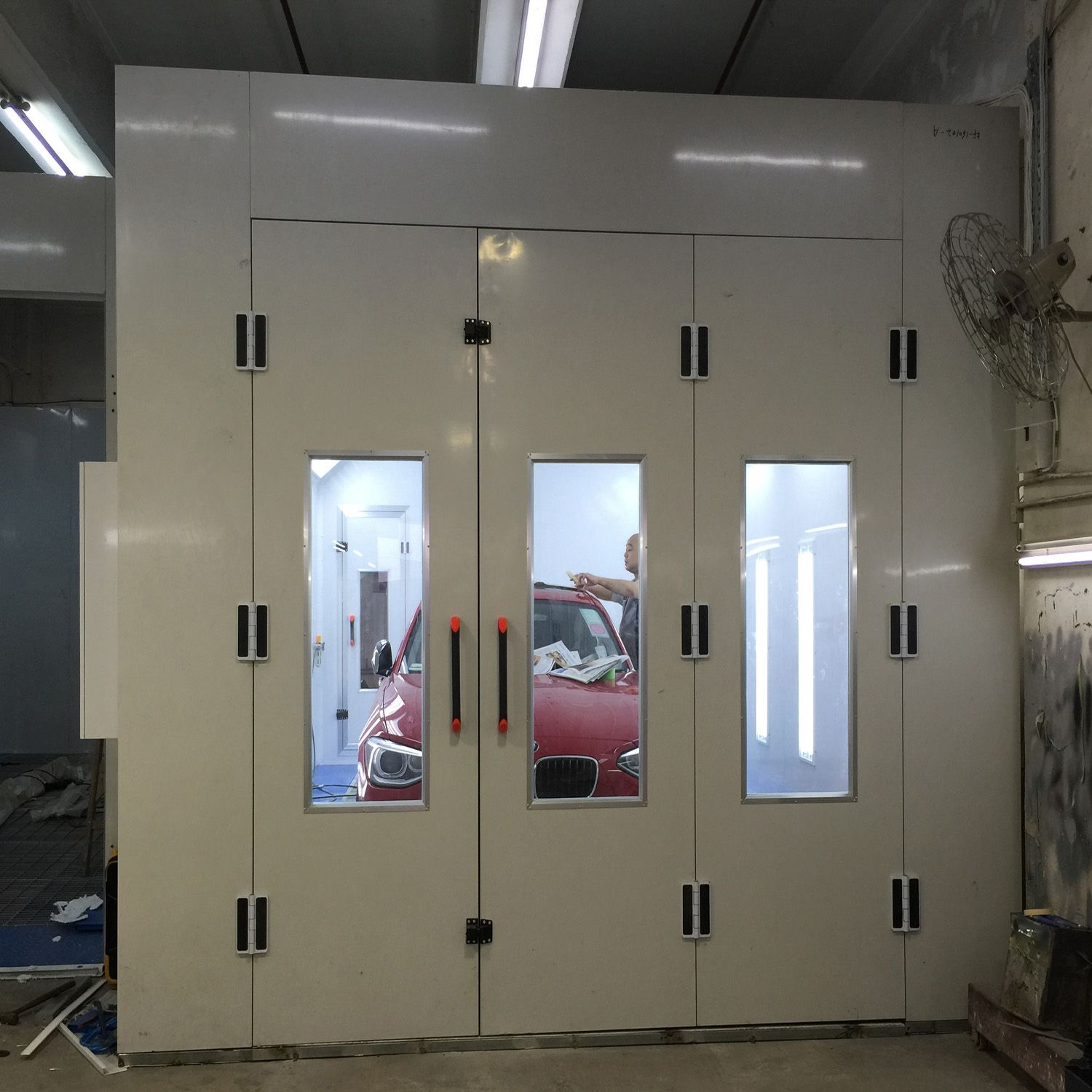

Popular water-based paint machine
Why choose Infitech:1. High quality and competitive price, our main partners are BMW, Audi, Land Rova, Toyota, Hitachi etc.
2. Excellent pre-sales and after-sales service.
3. Schneider brand components for the control system.
4. Timely delivery.Specifications:| Internal size | 7500×3900×2500 mm(L×W×H) |
| External size | 7600×5556×3150 mm(L×W×H) |

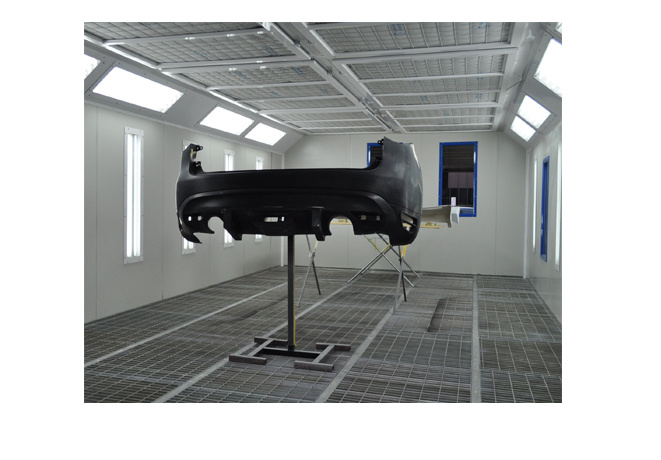

| Basement | 300mm height metal basement assembled by corrosion resistant steel frame and galvanized steel sheet, four rows flat steel grids with 5cm suppressive type of steel grating and 10mm twisted steel, two rows metal non-slip diamond plates.
Air-operated ramp, L3000×W2900mm, double lifting airbag |
| Entrance door | 2+1 structure, Double Construction with Insulations EPS, 0.6mm color steel plate, 2900×2700mm(W×H), tempering glass observation window, snowy white |
| Working door | 1 set, 800×1800mm(W x H), aluminium alloy edge wrapping, tempering glass observation window, with mechanical pressure lock |
| Wallboard | High quality double construction fireproof insulation rock wool panel, thickness: 50mm, 1150mm wide, 0.476mm color steel plate, color: snowy white, powder coated |
| Roof panel | Single-layered galvanized steel plate bending forming
|
| Lighting | Ceiling lighting: 10 units: each 4 x 16W
Side lighting: 10 units: each 2 x 16W, 4 units on the left, 4 units on the right and 2 units on the back; illumination: 1000LUX |
| Inlet/Exhaust system | 2 sets of inlet centrifugal fan, belt drive, electric motor power: 5.5kw, total pressure: 700Pa, total air volume: 30000m3/h, with simple manual damper |
| 1 set of exhaust centrifugal fan, belt drive, total air volume: 28000m3/h, electric motor power: 11kw, total pressure: 700Pa, with electric damper |
| Pipeline | 0.8mm galvanized steel plate for the pipeline |
| Heating system | Adopt Italy RIELLO single-stage diesel burner G20(180.000kcal/H), with air-operated damper |
| Water-based device | At 4 top corners of cabin installs 4 sets of 0.25kw centrifugal fans, increase system air supply capacity to dry quicker, air volume: 1000m3/h
Install 4 rows of luxury air nozzles at 4 corners of the cabin, totally 32 pieces. |
| Filtration system | Primary filter, 600G high efficient filter, fiber glass filtration, square activated carbon filtration |
| Control system | Schneider brand components
Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, round pressure gauge, power supply switch
Water-based switch, Water-based device time control, electric damper, digital display for the time control |
| Voltage frequency | 380V Your special voltage is accepted. |
| Max. working temperature | 80ºC |
| Empty loaded air speed | ≥0.25m/s |
| Gross power | 24KW |

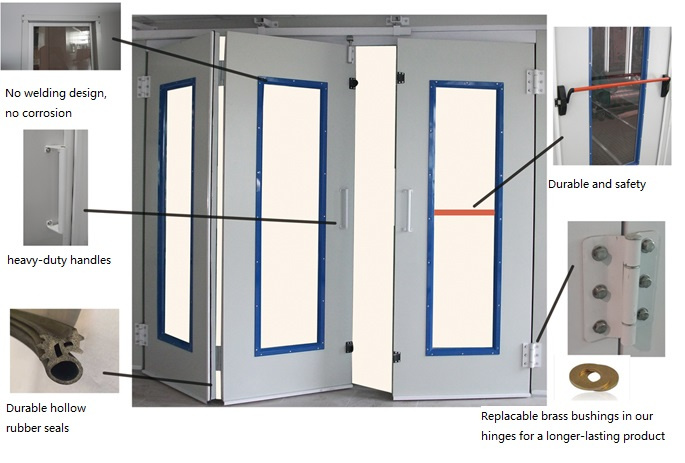

Entrance door:
Lighting: in line with CE specifications of the electronoic rectifier, grade of lighting box's dustproof and waterproof reach IP54 grade

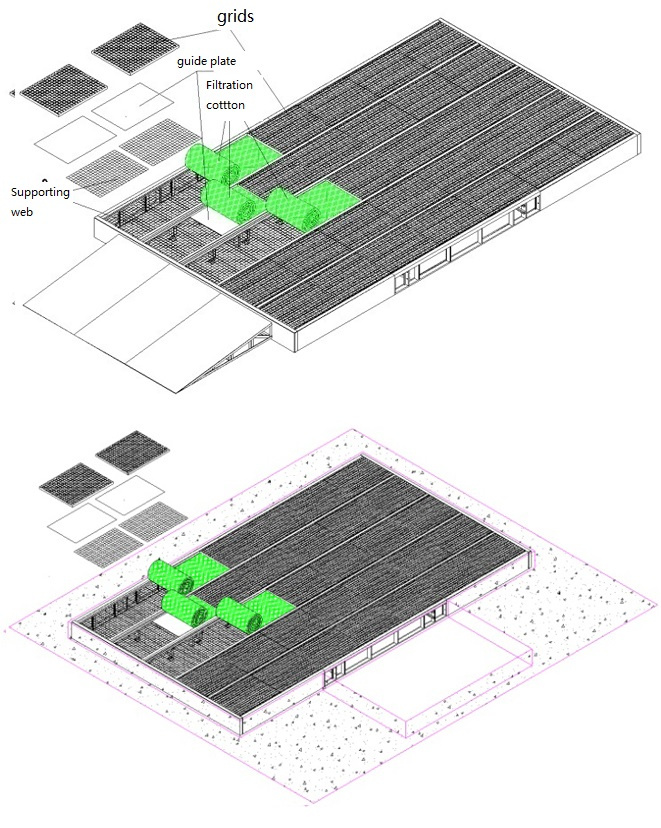

Base air return system:

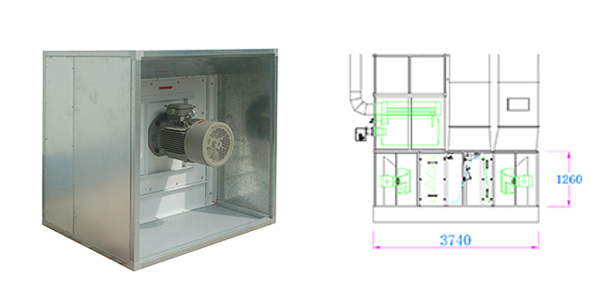

Inlet / Exhaust Fan: Fan is in line with non-sparking design, and perfectly conforms to the EN13355-2004 requirements.
Company Profile: Guangzhou Infitech Mechanical and Electrical Equipment Co.,Ltd. is a high-tech enterprise, focusing on industrial coating equipment research and development, design, manufacturing, technical consultation, sales and installation. We have a professional and experienced technical team, and perennial exchanges and cooperation with design institutes, universities. Our main products include pretreatment, sandblasting, electrophoresis equipment; grinding, drying equipment; dust removal, levelling drying equipment, spray booths, and dust-free spray and automatic spraying production line.
Factory address: No.2, TaiGuang Road, BaiYun District,Guangzhou, Guangdong, China (22 minutes drive from GZ Baiyun Airport)
Welcome to vist our plant!
Service commitment:
Pre-sales:
Product quality commitment:
1. Have quality record and testing files of product manufacturing and testing .
2. Product performance test. Customers will be invited to attend the complete test procedure. Once product is qualified, then we proceed with package and delivery.
Product price commitment:1. Use famous brand raw materials to ensure high reliability and advancement of product.
2. Under the equal race condition, our company sincerely provides the most favorable price, but won't be at the cost of reducing product performance and changing product components. Delivery time commitment:
Product delivery time: comply with customer's requirement. If the goods need to be finished in advance, we will arrange production and erection to satisfy the customers. After-sales:
After-sales service commitment:
1. Service purpose: fast, decisive, exact, considerable, thorough.
2. Service target: service quality to win customer satisfaction.

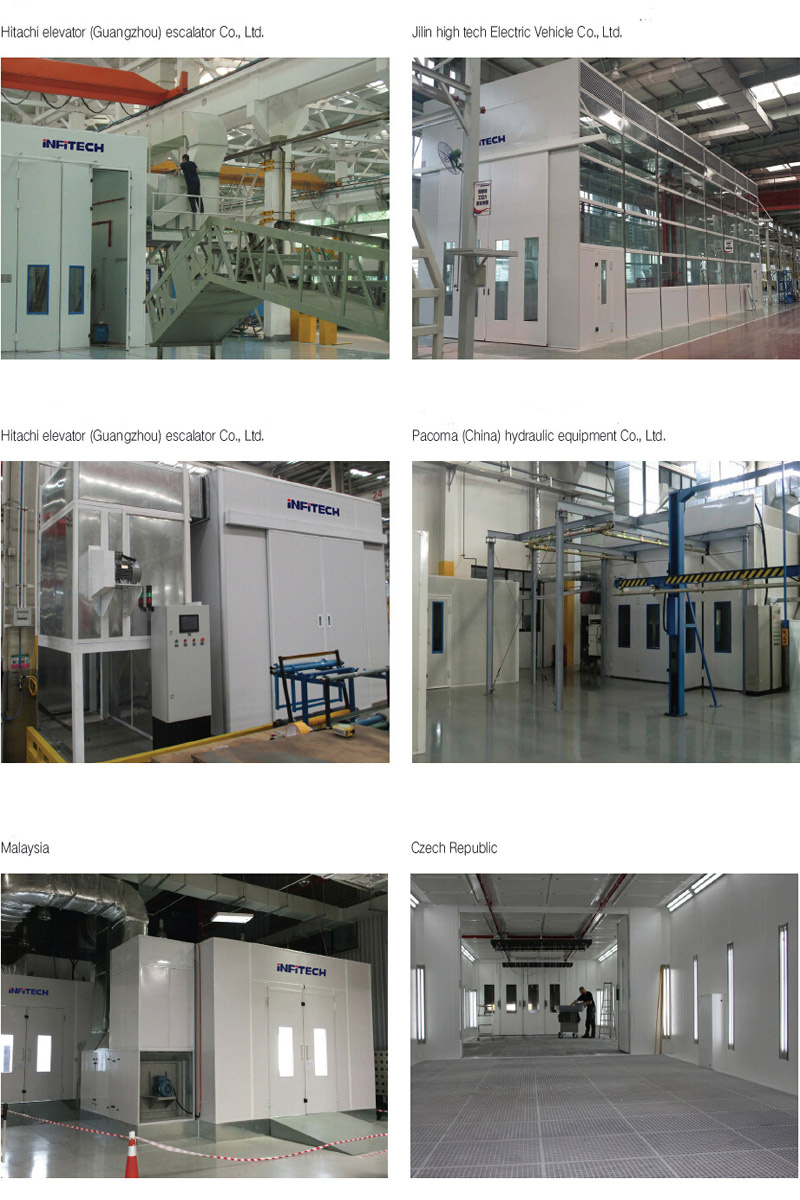

3. Service principle: 2-year warranty, the supplier freely replaces damaged parts caused by quality reason within warranty. Beyond the warranty, the supplier provides spare parts at cost. If the equipment damages are caused by human factors, the supplier repairs or provides spare parts at cost. Our service people shall provide technical support in 24 hours after receiving your feedbacks on the problems.Successful cases:
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.
Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
