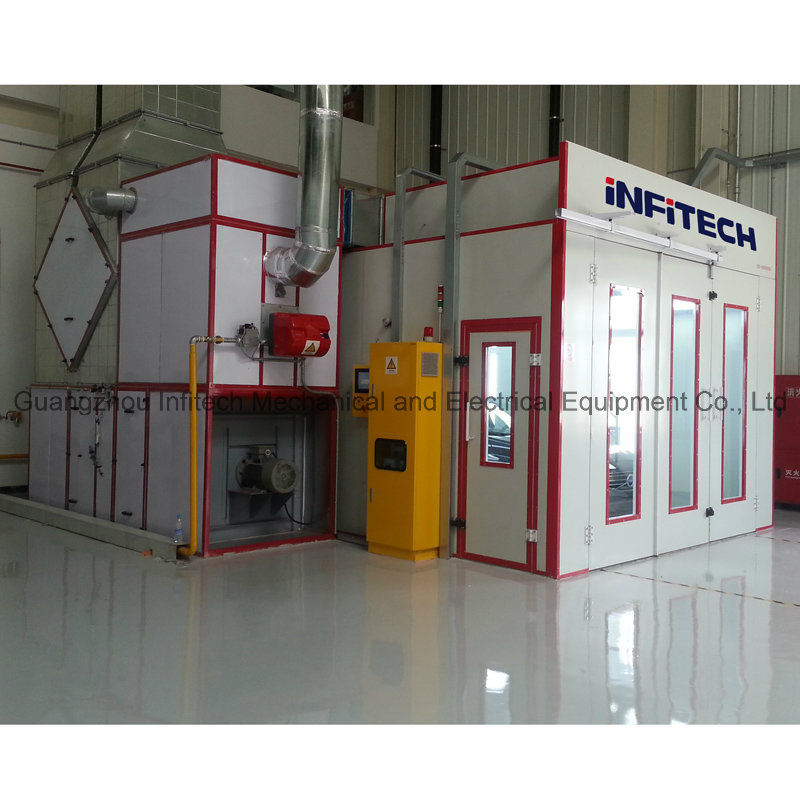

Popular Auto Water-Based Paint Spray Booth
| Price: |
US $ 11500-12500/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
Popular Auto Water-Based Paint Spray Booth
Certification: CE
Management Certification: ISO9001:2000
Warranty: 2 Years
Parameter: | Airflow | Internal Size(mm) | External Size(mm) | Heating Modes | Inlet/Exhaust fan | LED Ceiling Lights | LED Side lights | Empty Loaded
Air Speed |
| Full downdraft | 7000X4000X2800 | 7110x5760x3810 | Oil/Gas | 2X7.5KW | 8 set/4X24W | 8 set/2X24W | 0.28 m/s |
| 8000X4000X2800 | 8110X5760X3810 | Oil/Gas | 2X7.5KW | 8 set/4X24W | 10 set/2X24W | 0.24m/s |
Airflow
1. Full downdraft for spray.
2. Innovative high efficient big impeller fan, sparkproof design(SIEMENS).
Entrance door & Personnel door
1. 2+1 structure, 3 observation windows of armoured glass(WXH:3200X2700mm).
2. Personnel door, observation windows of armoured glass, emergency lamp, door closer.
Cabin structure
1. Full grids, 650kg/wheel
2. Heat-resistant rock wool panel, base plate thickness: 0.426mm
3. 600mm height plenum chamber, 350mm height basement
4. European bulge roof design
Heating system
1. 200KW high efficient, energy-saving heating exchanger
2. Double protection with over temperature alarm
Control system
1. Double protection with over temperature alarm.
2. PLC intelligent controller.
3. Motor-driven pressure balance valve
4. Self troubleshooting

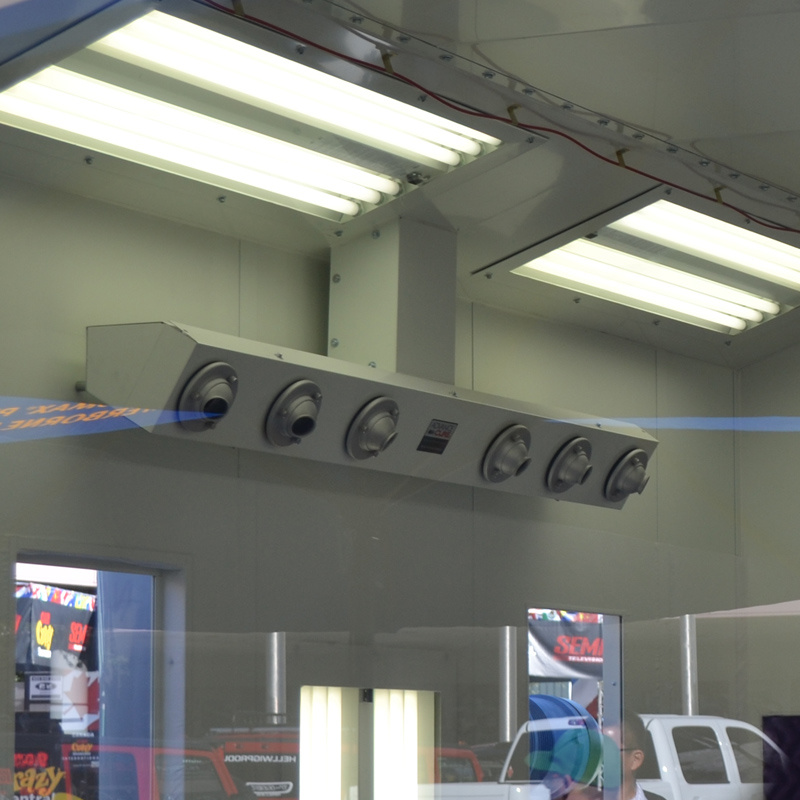

5. Water-based model.Water-based device
A. Total air volume: 28000m3/h.
B. The installation of the water soluble circulating device greatly speeds up the internal airflow.
C. Thanks to the nozzles, much greater airflow is concentrated around the workpiece, which considerably helps achieve the effect of rapid drying.

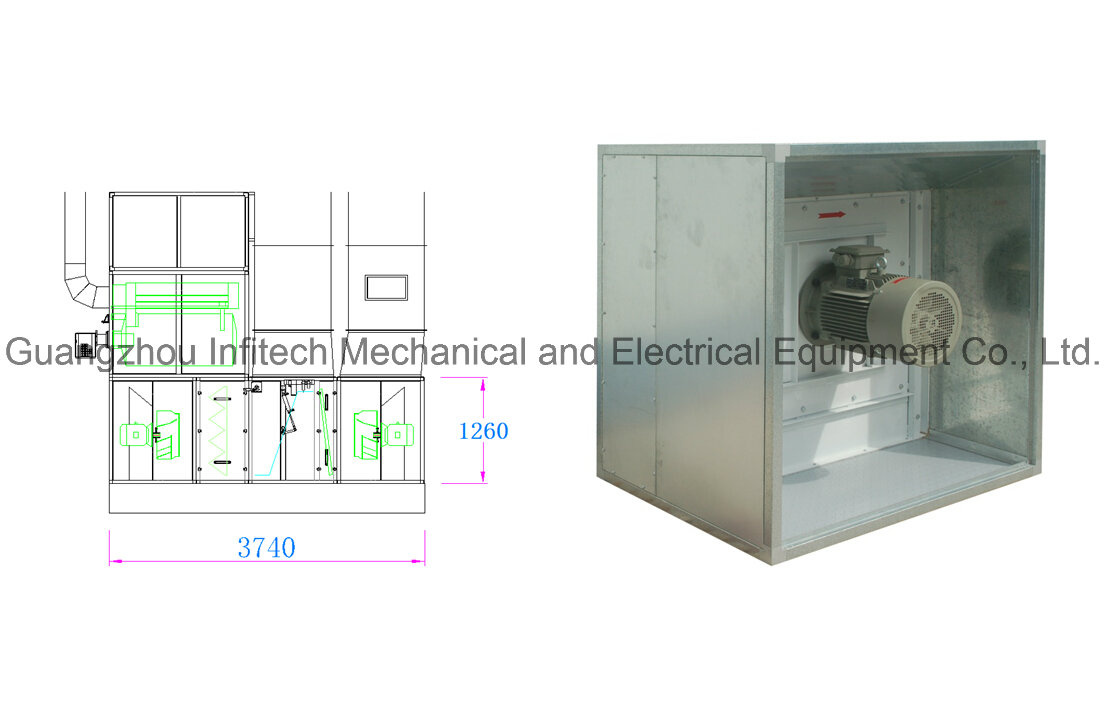

Airflow system | Inlet motor | Exhaust motor | Inlet fan | Exhaust fan | Air volume | Drying system | Frequency Power Control | Air hose |
| 7.5KW SIEMENS | 7.5KW SIEMENS | CRF backward centrifugal fan, direct linkage | 28000m³/h | 200KW | / | Inlet 6 meters from the ground
Exhaust 10 meters off the ground |
- Fan is in line with non-sparking design, and perfectly conform to EN 13355-2004 requirements to the fan.
- Fan and motor are completely separated, which is compulsory for fans according to EN 13355-2004.
- The design can overcome resistance of 600Pa.

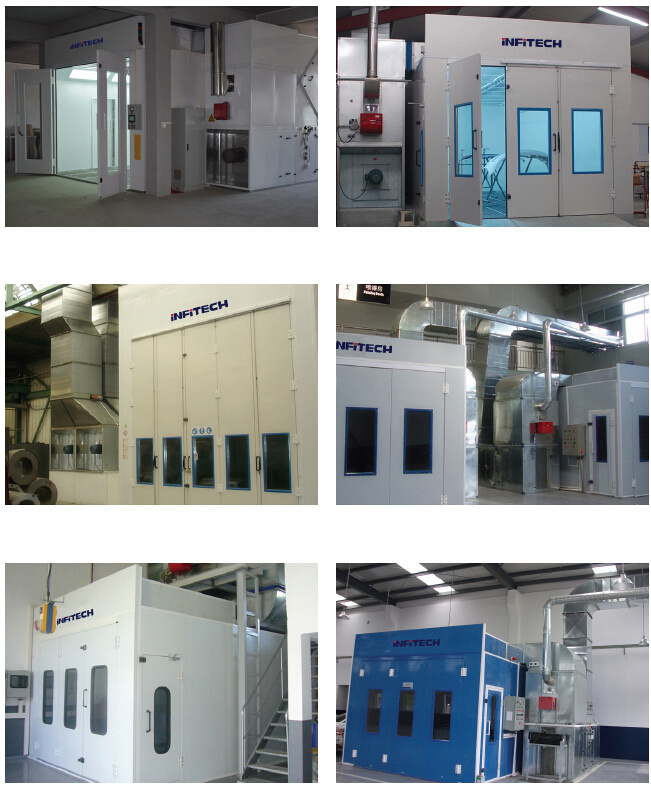

- Adopting cylinder-drive paint-bake conversion damper, more quickly and accurately.Sussessful Story
Service Commitment
Before you buy
Product quality commitment:
1. Product manufacturing and testing have quality record and test files.
2. Product performance test. User will be invited to attend the complete test procedure. Once product is qualified, then proceed with package and delivery.
Product price commitment:
1. Use well-known brand raw materials to ensure high reliability.
2. Provide the most favorable price and will not be at the cost of reducing product performance.
Are buying
Delivery commitment:
Product delivery time: comply with client's requirements. If the goods need to be finished in advance, we will arrange production and erection to satisfy clients.
After purchase
After-sales service commitment:
1. Service purpose: fast, decisive, exact, considerable, thorough.
2. Service target: quality service to win customer satisfaction.
3. Service principle: 2-year warranty, the supplier freely replaces damaged parts caused by quality reasons within warranty. Beyond the warranty, the supplier provides spare parts at cost. If the equipment is damaged due to human factors, the supplier repairs or provides spare parts at cost; our service people provide technical support in 24 hours after receiving your report of the problems.
| Prod Model: |
YFT-W701 |
| Total Fan Capacity: |
28000 M3/H |
| Brightness: |
>1500 Lux |
| Empty Loaded: |
+/- 0.28m/S |
| Heating Exchange Capacity: |
200kw |
| Burner Model: |
Rg5s |
| Airflow: |
Full Downdraft |
| Color: |
as Requst |
| Model: |
Water-Based |
| Voltage: |
380V/400V/415V, Your Special Voltage Is Accepted |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
