Prod Model: |
PC-EU-3A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty Time: |
2 Years |
Popular Market: |
Europe |
Configuration Level: |
High-End Spray Booth |
Service Time: |
Lifelong Maintenance |
Color: |
White or Blue |
Voltage Requires: |
380V/3p, 220V/3p Or220V/1p |
Loading Container: |
3sets Full in 40 Container |
Paint Mist Treatment: |
Dry-type |
Heating Mode: |
Diesel |
Airflow Direction: |
Fully Undershot-type |
Certification: |
CE |
Condition: |
New |
Type: |
Car Spray Booth |
Product Description
Spray booth PC-EU-3A configuration table
Automotive spray booth/painting room/car oven/paint booth/car paint
1. CE standard
2. Professional spray booth manufacturer
3. Competitive price with best quality
4. Timely sell service and lifelong after service work
5. Prompt delivery and effective loading
Outside size | 7000 x 5356 x 3430 mm (L x W x H) | Inside size | 6900 x 4000 x 2650 mm (L x W x H) | Total power | 17KW |
Room body | Wallboard | Fireproof insulation rock wool panel, thickness: 50mm, High quality double color sheet 0.6mm construction |
Roof panel | Galvanized sheet |

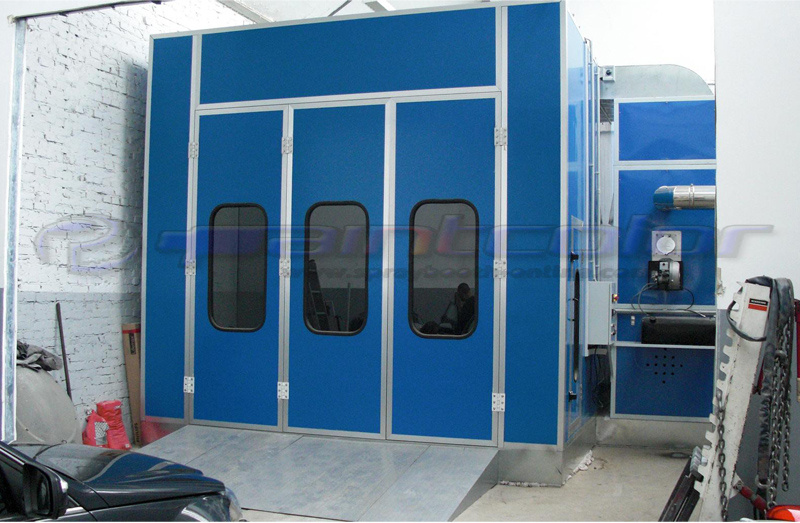

Entrance door | 1set, 3-fold with size: 3000x2650 mm (W x H), observation safety glass window |
Operator's door | 1set, 800x2000mm (W x H), observation safety glass window, the door closed automatically |
Basement | Foundation | Solid steel structure platform, full twist grids |
Surface area of foundation | 27 M²(full galvanized grids) |
Metal basement | 330mm height with better the ventilation effect |
Drive-in ramps | 5pcs big drive-in ramps, with size: 900x2300mm(W x L), diamond plate structure. |
Lighting system | Ceiling lighting | 8units, each 4 x 36 W, total 1152w , Philips Lamp, IP54 grade. |
Side lighting | 8units, each 2 x 36 W, total 576w , Philips Lamp, IP54 grade. |
Illuminance | ≥900 LUX |
Filtration system | Pre-filter | EU3 grade system |
Ceiling filter | EU5 grade high efficient filter |
Bottom filter | Fibreglass paint-stop filter |
Exhaust filter | Active carbon bag filter |
Ventilation system | Inlet fan (Direct drive motor) | Big impeller turbo fan, 7.5KW-6P, 380V, 3P, 50HZ, Original Germany Siemens motor |
Outlet fan (Direct drive motor) | Big impeller turbo fan, 7.5KW-6P, 380V, 3P, 50HZ, Original Germany Siemens motor |
Paint to bake exchange system | Pressure adjustment control cylinder driven damper exchange |
Total fan capacity | 25.000m³/h |
Air flow speed | 0.23m/s in empty booth, 0.25-0.35m/s in loaded booth |
Heating system | Heating exchanger material | SUS304 high efficient heat-resistant stainless steel |
Heating exchanger capacity | 230KW(200.000Kcal/H) |
Burner model | Italy REILLO one-range diesel burner G20(200.000kcal/H) |
Heating time | 5-7 minutes( from 20°C to 60°C) under baking status, the max baking temperature is 80°C |
Control system | Control system | Standard Y/Δ step-down start control system |
Pressure testing | The pressure gauge indicate the pressure inside cabin |
Function | Painting, warm painting, baking, emergency stop switch, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection, fault resistance switch |
|
