New Style Ce Approved Customized Spray Baking Booth for Vehicle

Name: New Style Ce Approved Customized Spray Baking Booth for Vehicle
Brand: ibuyautoparts.com
SKU: 733892242
Availability: InStock
Rating: 4.6 (142 reviews)

Price:	US $ 9999-20000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

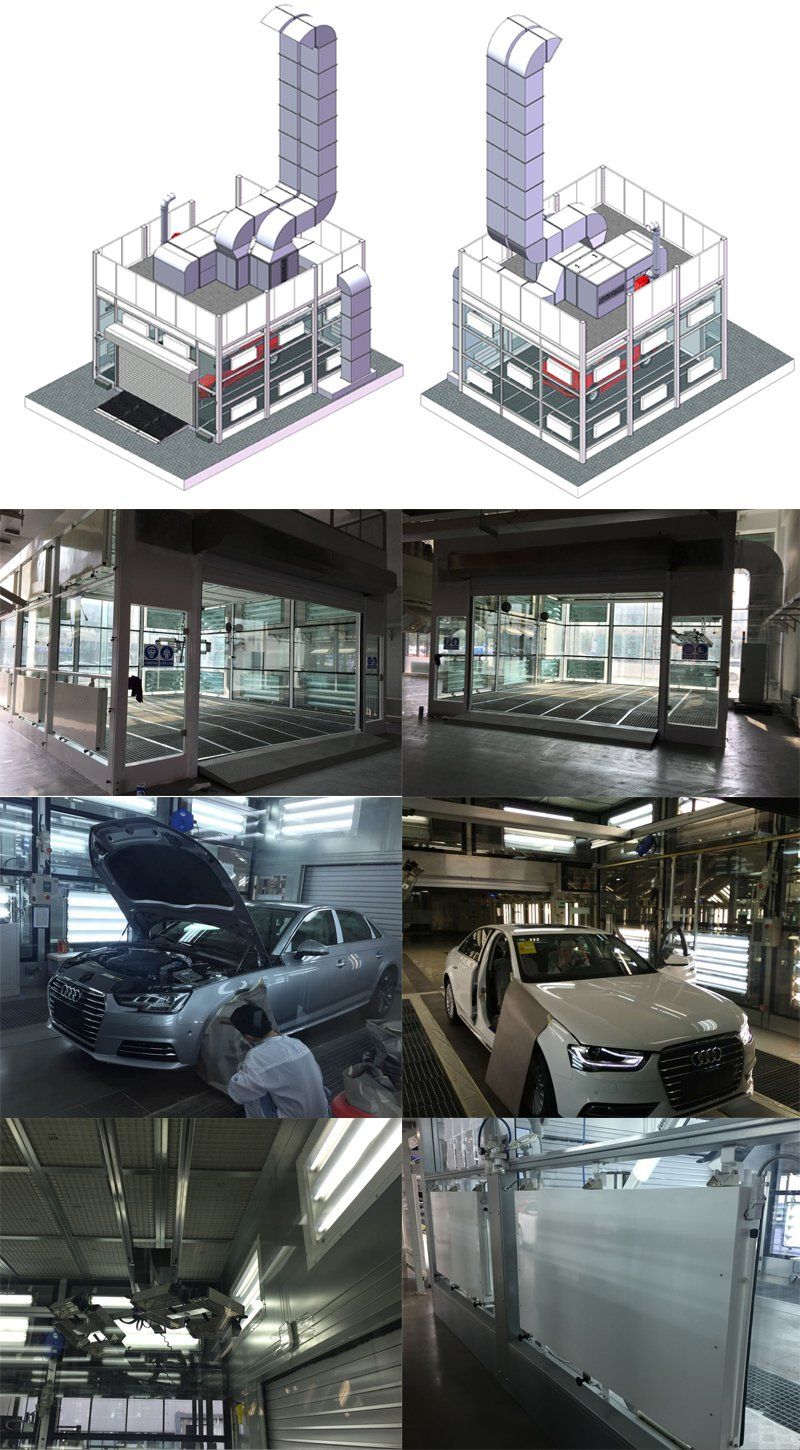

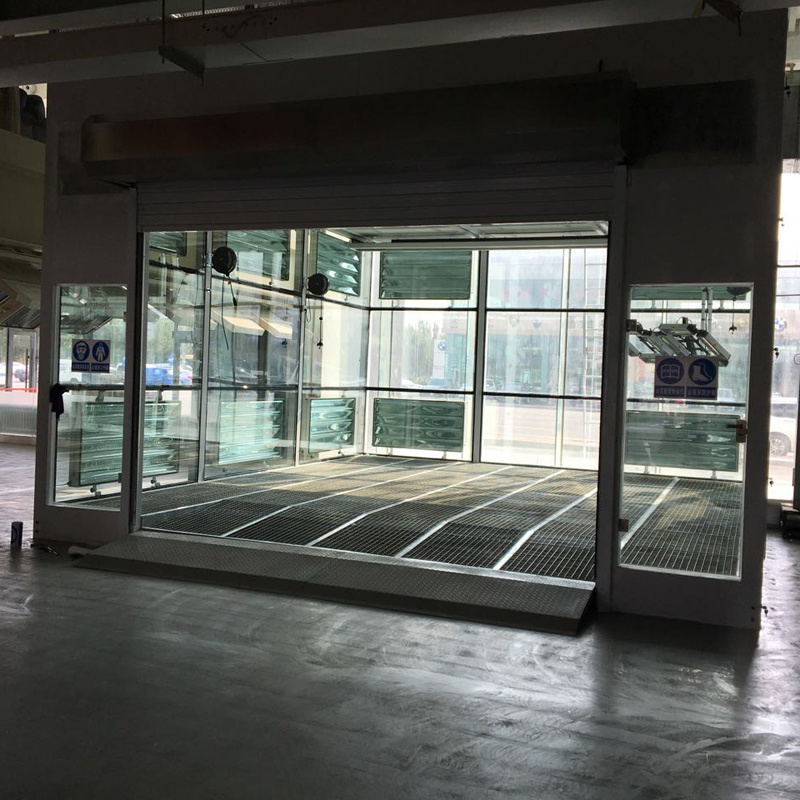

New style CE approved customized spray baking booth for vehicle

Technical parameters

INFITECH Customized Auto Spray Booth(7x6x3.5M)
Design standard	BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009
Internal dimensions	7000×6000×3500mm(L×W×H)
External dimensions	7350×7400×5760mm(L×W×H)
Basement	Galvanized sheet bending form, full grids, basement height 350mm
Carrying capacity of grids	700kg/wheel
Plenum height	400mm
Cabin structure	Sheet metal column structure, double layer vacuum thermal insulation glass
Drive-in-ramp	3 pcs, diamond plate
Entrance door	Electric roller shutter door, 1 set, 3980×2700 mm (W x H) 550W, maximum lifting weight: 800kg, lifting speed: 0.2m/s
Personnel door	2 sets, 800×2000 mm (W×H)
Ceiling lighting (LED lamp)	16 sets of light fixtures, each 4 X 36W, 2304W total; IP55 protection grade
Intake system	Direct-type turbine fan, 11KW, 380V, 50Hz
Exhaust system	Direct-type turbine fan, 11KW, 380V, 50Hz
Air volume	35,000m³/h
Empty loaded air speed	+/- 0.23m/s
Noise	<78db
Heating system	RIELLO diesel burner RG5S
Heat exchanger power	232KW
Maximum working temperature	80ºC
Filtration system	Pre-filter, ceiling filter, floor filter, exhaust filter
Control system	Inverter, PLC, touch screen control, ceiling and floor filter change reminder function
Rated power	28KW

Company Introduction
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.

Prod Model:	IT-L7-W6
Warranty:	2 Years
Power:	28kw
Empty Loaded Air Speed:	0.23m/S
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.

Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
