| Prod Model: |
WLD-12000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wld12000 |
| External Size: |
12150*6600*5600mm |
| Internal Size: |
12000*5000*4800mm |
| Air Flow: |
31000 X 2m3 /H |
| Air Speed: |
0.3-0.5m/S |
| Power: |
41kw |
| Vehicle Suited: |
Saloon Car/Jeep/SUV |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS |
| Brand: |
Weilongda |

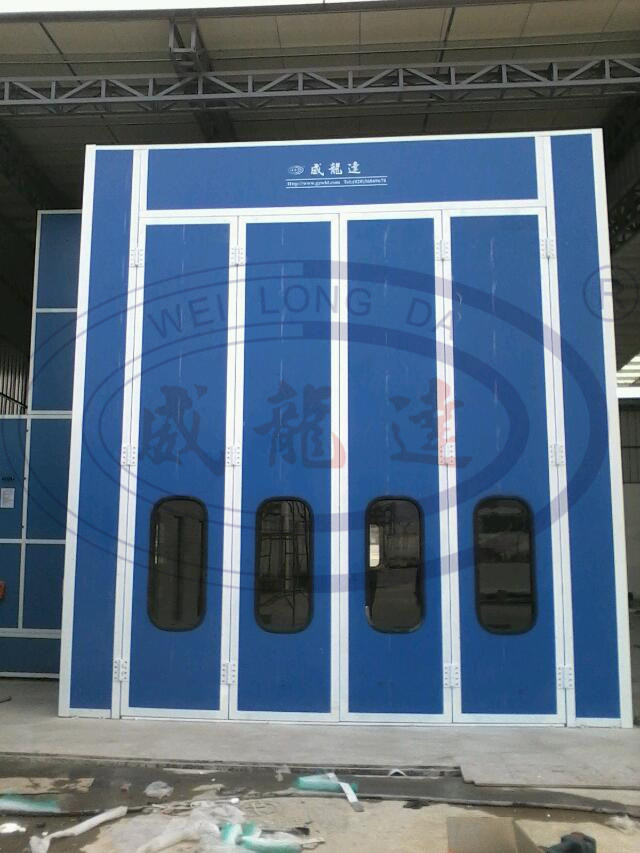

Product Description
1. CE, ISO, AS about bus spray booth
2. Real spray booth manufactory in China
3. Welcome to visit our factory any time
| External Size | 12150(L)×6600(W)×5600(H)mm |
| Internal Size | 12000(L)×500(W)×4800(H)mm |
| Main Door Size | 4000(W)×4800(H)mm |
| Air Flow | 31000m³/h ×2 |
| Air Speed | 0.3-0.5m/s |
| Operating Temperature | 60-80ºC |
| Power | 41KW |
| Vehicle Suited | bus & truck |
Main features:
1. Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
2. Door: 4 PCS of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 PCS of emergency doors.
3. Air Intake System (2sets): Each set consists of 2x5.5kw intake fan. Total 4 units of 5.5kw intake fan. BELIMO 20N electric damper.
4. Air Exhaust System (2sets): Each set consists of 1x7.5kw exhaust fan. Total 2 units of 7.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.
5. Heating System (2sets): Each set consists of 1 unit Italy Riello G20 diesel burner, 200000Kcal/h. Total 2 units of burners, 400000Kcal/h. The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.
6. Lighting System: Ceiling light has 16 units x 3 PCS of 36W lamps. Side light has 18 units x 2 PCS of 36W lamps. Total 84 PCS of 40W lamps. 900 Lux.
7. Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
