Isolating Switch Fuse Good Quality

Name: Isolating Switch Fuse Good Quality
Brand: ibuyautoparts.com
SKU: 690085645
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

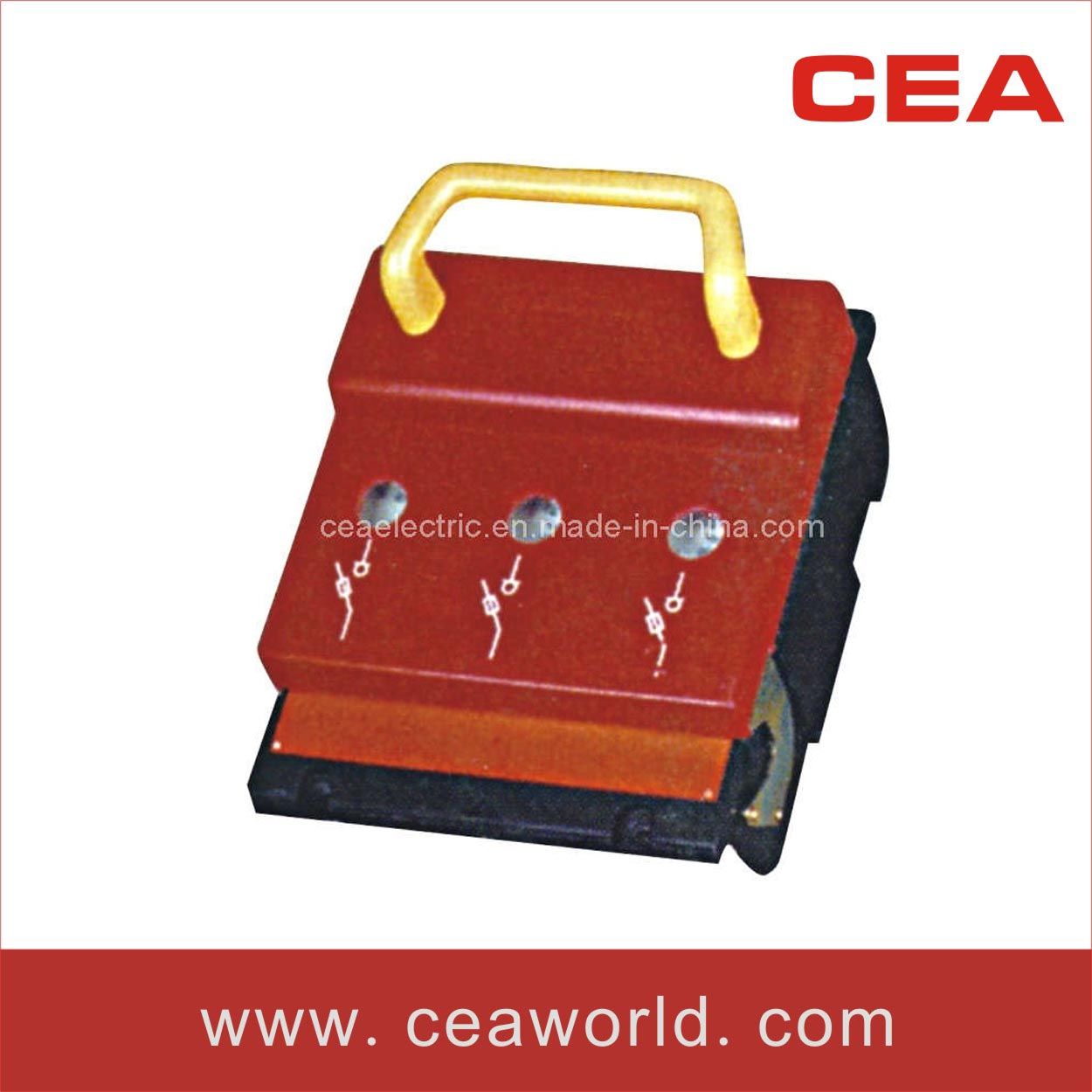

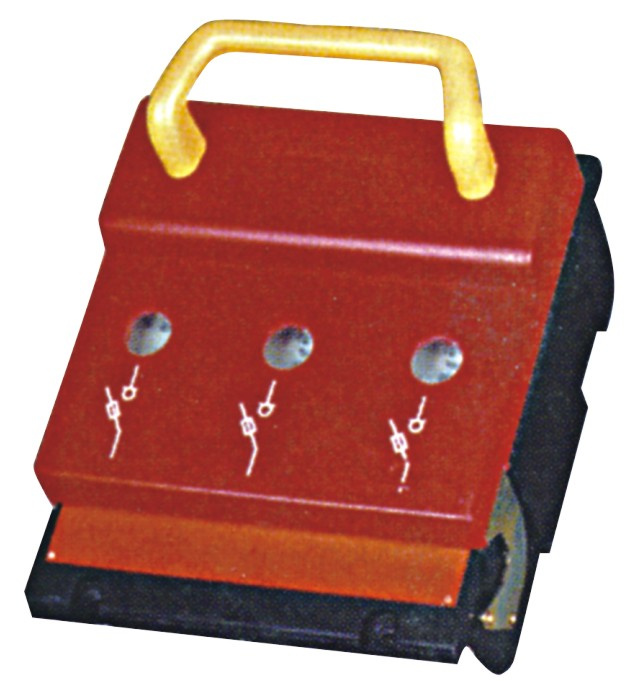

The product is used in distribution circuit and motor circuit of current 50Hz, rated operational frequency 660V under, and rated current 100-630A, also used in high-short-circuit as power switch, isolating switch and emergency switch protecting circuit. Fitted with NT(RT16)fuse. It conforms to IEC60947-3.

type	100	200	400	630
pole no	3	3	3	3
rated insulation voltage AC(V)	690	690	690	690
rated operational voltage AC(V)	380 690	380 690	380 690	380 690
rated operational current(A) 380V AC-23	100	200	400	630
rated operational current(A) 660V AC-22	100	200	315	426
rated fuse short circuit current(KA rms) 380V AC-23		100	100
rated fuse short circuit current(KA rms) 660V AC-22		50	50
Max. fuse-link(A)	160	250	400	630
fuse type(NTO)	00	1	2	3
mechanical(electrical) endurance(operations)	3000	3000	3000	1000
auxiliary switch(380VAC-15) VA	300	300	300	300

Prod Model:	100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Arc-Extinguishing Medium:	Air
Certification:	Ce,CCC
Number Of Main Poles:	3
Rated Insulation Voltage AC(V):	690
Rated Operatuion Voltage AC(V):	380,690
Rated Operational Current(a):	100 200 400 630
Max. Fuse- Link(a):	160 250 400 630
Type:	Isolating Switch Fuse

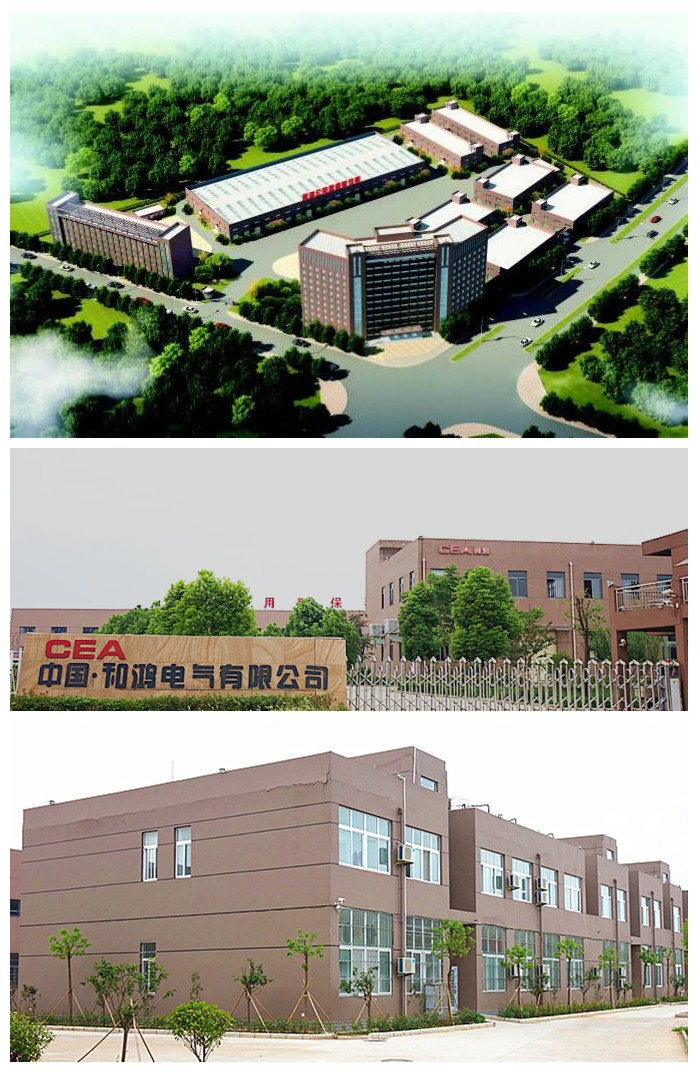

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

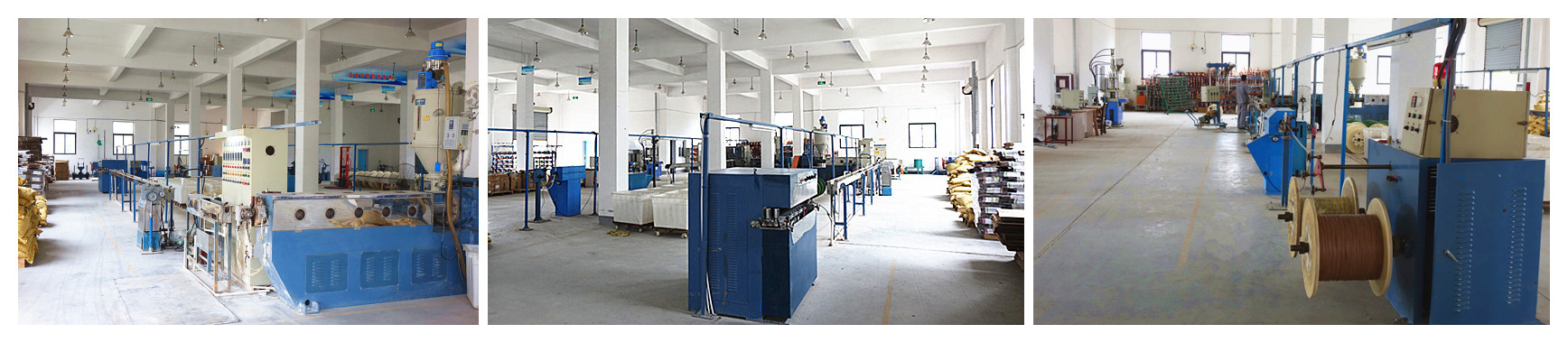

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
