Bolt Fuse Link with Good Quality

Name: Bolt Fuse Link with Good Quality
Brand: ibuyautoparts.com
SKU: 690032185
Availability: InStock
Rating: 4.5 (98 reviews)

Price:	NegotiableTEP
Trade Terms:	FOB
Min Order:	10TEP
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

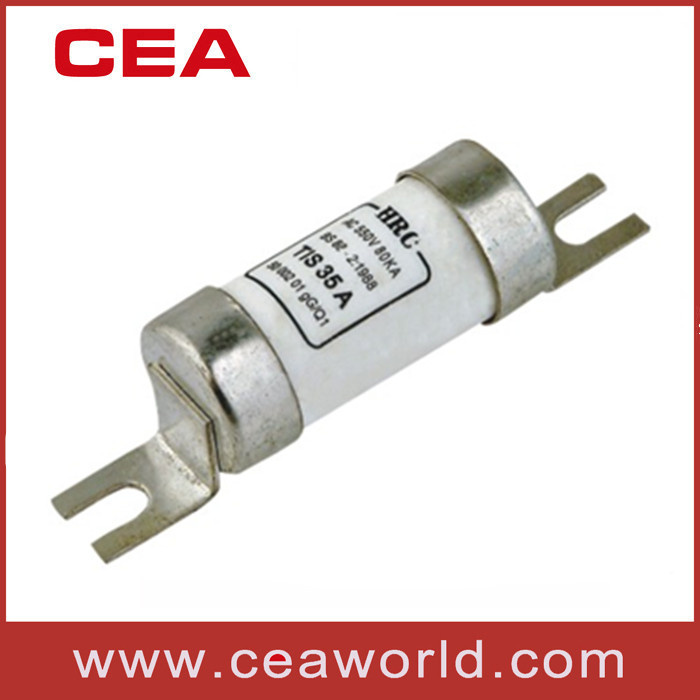

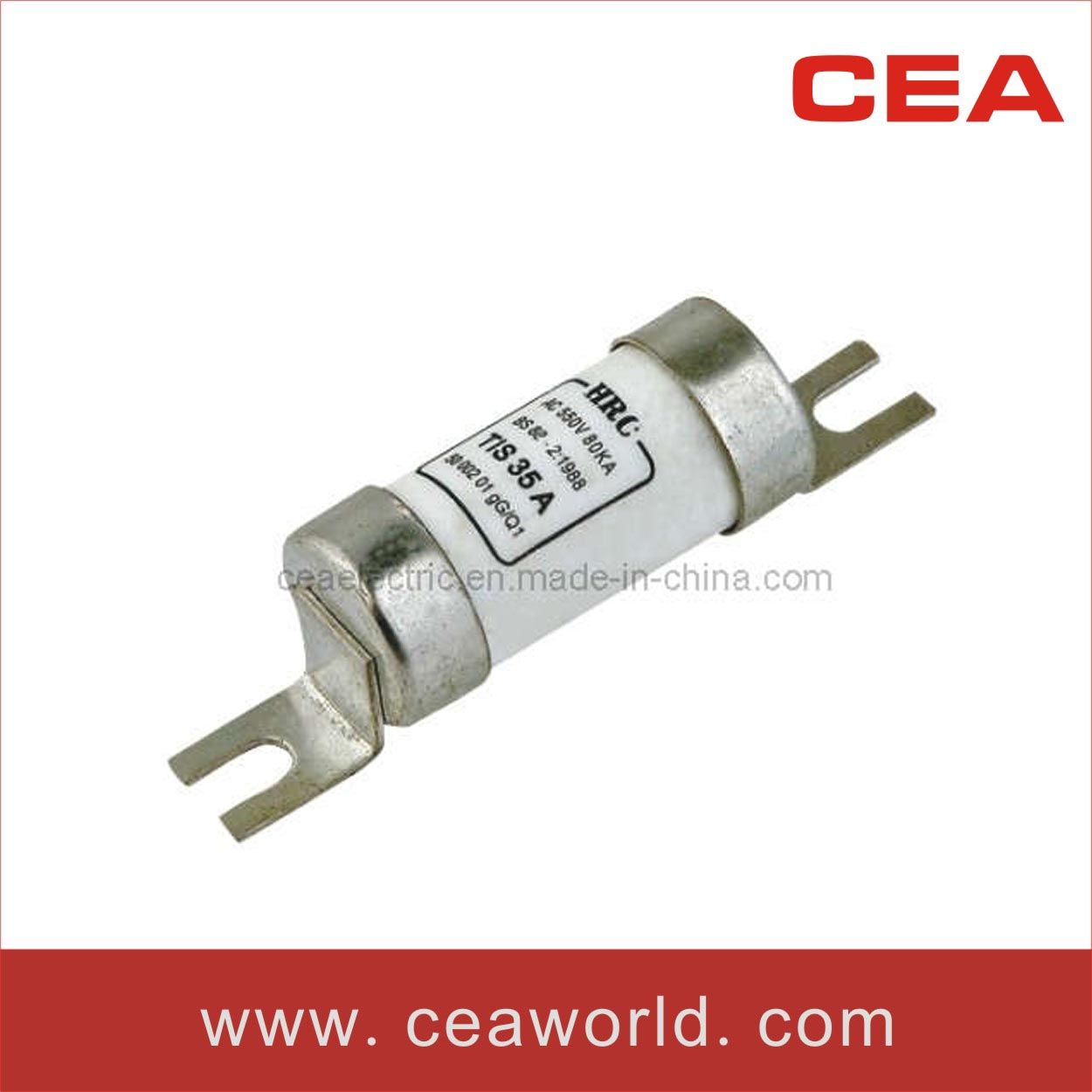

The bolt fuse link, the variable cross-section fuse element made from pure silver sheets are sealed in the melting tube.

The bolt fuse link, the variable cross-section fuse element made from pure silver sheets are sealed in the melting tube made of high-density porcelain; The fuse tube I filled with chemically treated high-purity quarts as arc-extinguishing medium; The two ends of the melting body are connected to the (knife)contactor by DOT welding; Both knifecontactors and board contacts are available; A striker/indicator may be installed to the fuse link; When the fuse link breaks, signals are sent out in the case of an indicator, or the switch is pushed to cut the circuit in the case of a striker.

It meets the requirements of BS88 and IEC 60269. The rated voltage is up to 690V AC and 500V AC.

type	rated current(A)
NIT	2 4 6 10 16 20 25 32
TIS	32 40 50 63
AAO	2 4 6 10 16 20 25 32 35 40 50 63 80 100
TIA	2 4 6 10 16 20 25 32 35 40 50 63 80 100
CD	80 100
TCP	63 80 100
TEP	125 160 200
SSD	2 4 6 10 16 20 25 32
NSD	2 4 6 10 16 20 25 32 40 50 63
TBC	2 4 6 10 16 20 25 32 40 50 63
TC	80 100
TKF	250 300. 355.400
SF8	200.400
TF	125.160.200
TMF	315 355 400
TM	400
76J	20 25 32 40 50 63 80 100 125 160 200
83J	20 25 32 40 50 63 80 100 125 160 200 250 315 355 400
96J	20 25 32 40 50 63 80 100 125 160 200 250 315 400

Prod Model:	TIS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Arc-Extinguishing Medium:	Air
Function:	Ovp(Overvoltage Protection)
Certification:	Ce,CCC
Current:	32,40,50,63A
Type:	Fuse

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
