Hg2b Fuse Disconnector

Name: Hg2b Fuse Disconnector
Brand: ibuyautoparts.com
SKU: 690069695
Availability: InStock
Rating: 4.4 (127 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

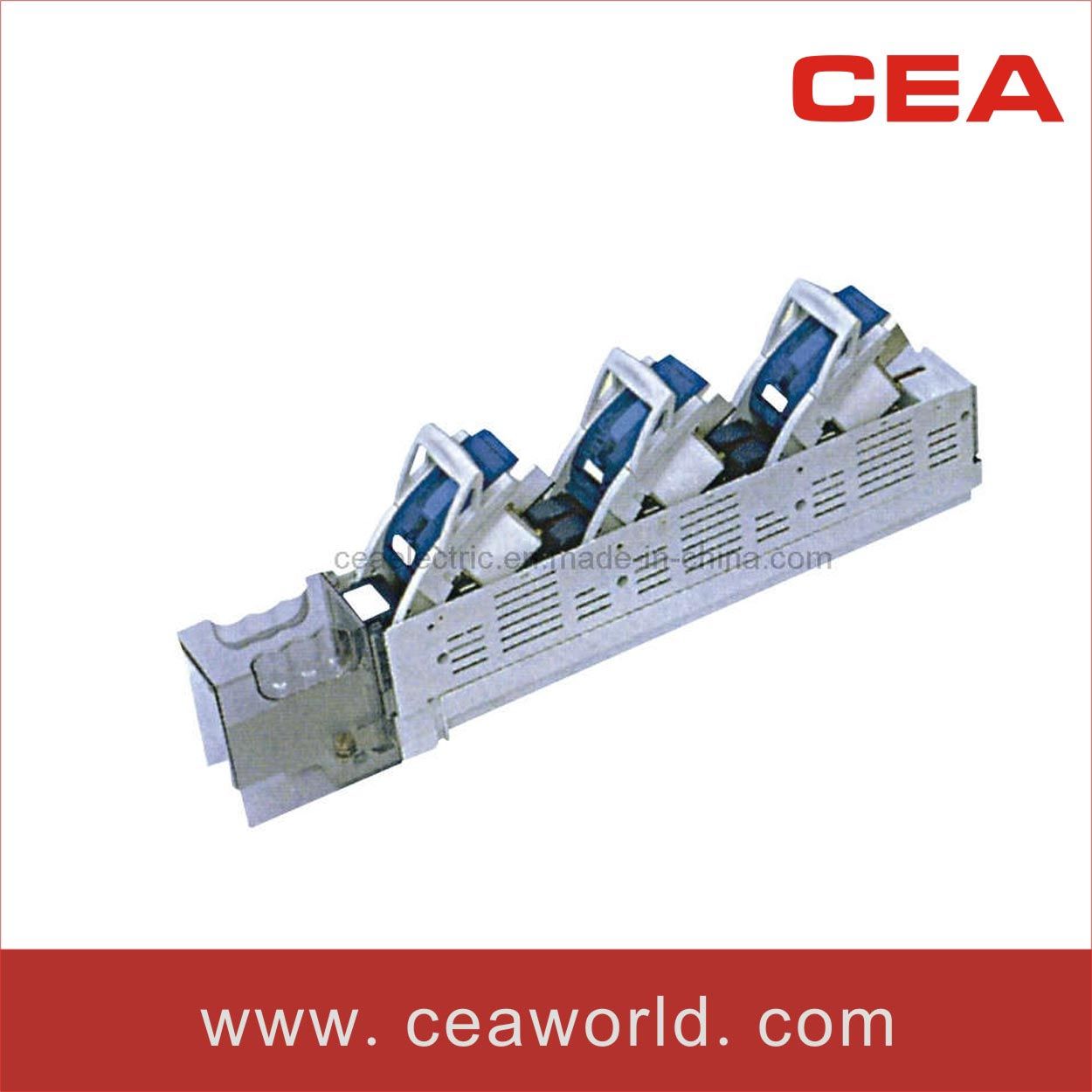

HG2B bar fuse switch disconnector with switch rating heat current 160A, 250A, 400A, 630A

HG2B bar fuse switch disconnector with unique process engineering
1. Integration of current transformer and fuse switch initiated domestically
2. With knife-edge entry and arc extinguishing equipment, it is safe for operation.
3. The islating knife blade, full-range protection and semiconductor protection fusible core are optional.
4. Fuse wire monitor and signal switch can be additionally mounted; With self-closing fuse wire monitoring hole.
5. It can be used as primary switch, instantaneous breaking capacity reaches
6. Capacity of operating with load reaches 1.3 times of rated current.

HG2B-A and HG2B-S for your choice
Switch Rating Heat current up to 630A
Stand specifications: IEC

type	assorted fuse	switch rating heat current(A)	rated current(A)
HG2B-160A	NT00	160	4 6 10 16 20 25 32 35 40 50 63 80 100 125 160
HG2B-250A	NT1	250	80 100 125 160 200 224 250
HG2B-400A	NT2	400	125 160 200 224 250 300 315 355 400
HG2B-630A	NT3	630	315 335 400 425 500 630

Prod Model:	HG2B-160A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Arc-Extinguishing Medium:	Air
Certification:	CE,CCC
Type:	Fuse

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

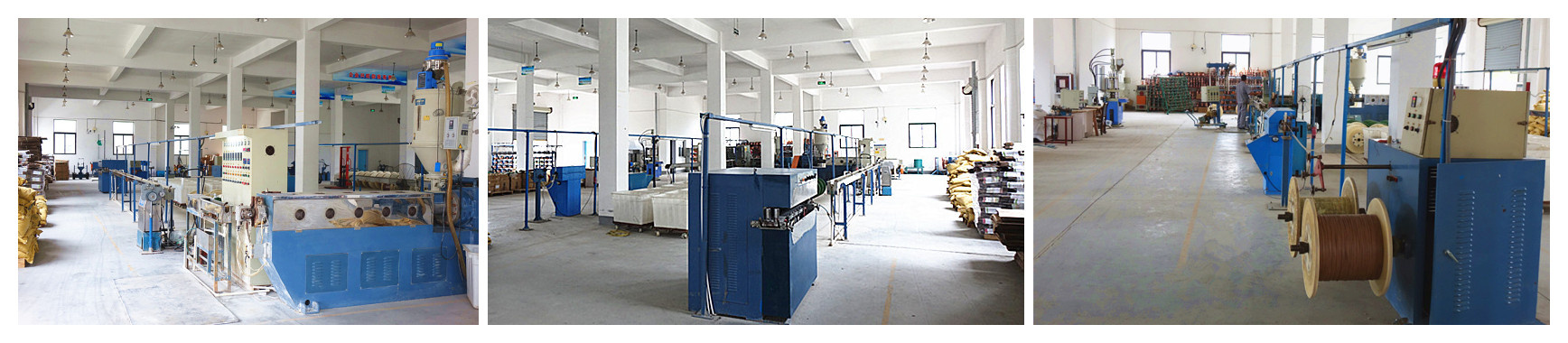

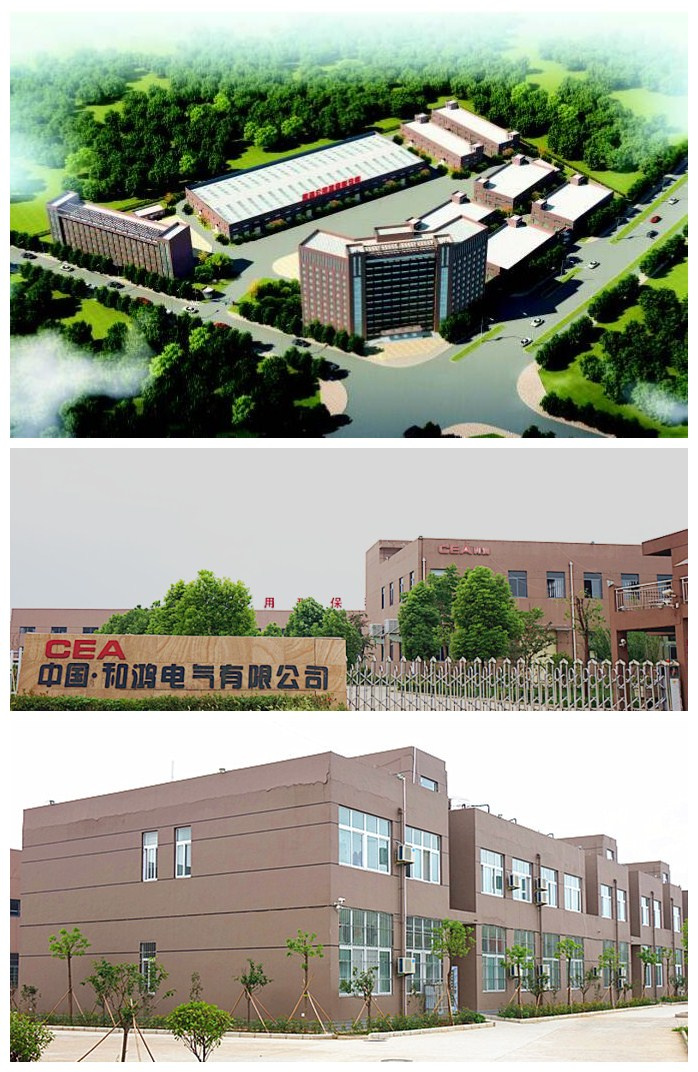

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
