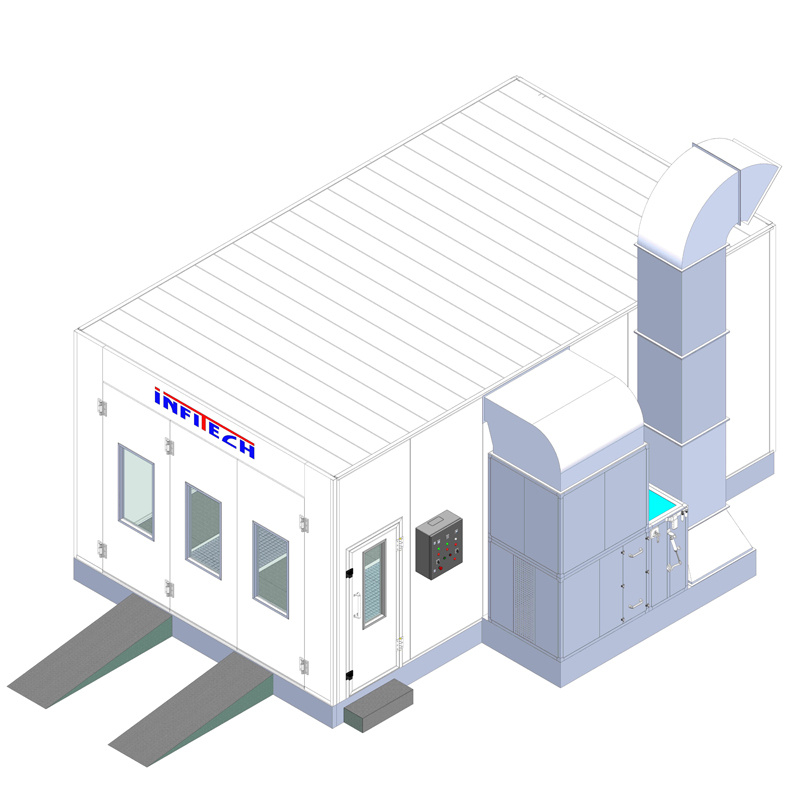

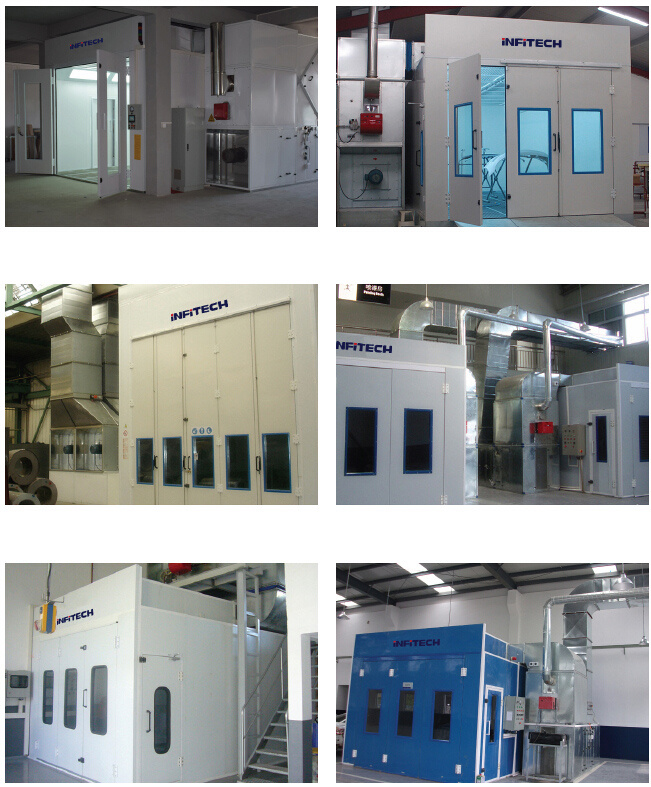

IR Heating System Paint Spray Booth
1.Advantages of control system of the IR heating system
A. Temperature control
B. Time control
C. Grouping control
D. Power adjustment
E. Slow start2.Specification
| DESIGN STANDARD | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |
| Cabin structure | Internal Dimension | 6900×3900×2650mm (L×W×H) |
| External Dimension | 7010×5470×3350mm(L×W×H) |
| Basement | Base Design Forming | Two rows flat steel grids, three rows of metal anti-skip
diamond Plate, floor(h):300mm, can not adjust |
| Carrying capacity of grid | 650kg/wheel |
| Filter area | 10.4m2 |
| Drive-in-ramps | X2 ; size: 2000*530mm |
| Grid description | Size: 997X756mm, 40X3mm,
pressed steel grating grille |
| Cabin | Cabin structure | Vertical wall plug |
| Plenum height | 400mm |
| Wall panel | Wall panel | 50mm wall panel filled with heat-resistant rock wool |
| Roof panel | Single layer galvanized plate bending forming |
Door
| Entrance Door | 3200×2550 mm (W×H); 2 + 1 structure; Containing
frame, filled with heat-resistant EPS |
| Working door | 800×2000 mm(W×H); frame structure working door;
with safety glass observation window |
Ceiling light
| QTY and power | 8 sets of light fixtures, each 4X36W, 1152W in total |
| Lighting arrangement | On both sides |
| Lighting description | IP55 lighting boxes, CE certified electronic rectifier,
OSRAM lamp |
| Brightness | > 800Lux |
Filtration System | Pre-filter | G2 grade pre-filter plate filter |
| Ceiling filter | F5 class filter cotton, Model SP-600G |
| Bottom paint mist collecting | Fiberglass paint-resistance filters |
| Inlet System | Inlet fan | Adopt big impeller turbo fan |
| Fan power and motor | 7.5KW, 970 rpm, 380 V, 50 Hz |
| Parameter of inlet fan | 25000m3/h , 650pa |
| Empty loaded air speed | +/- 0.25m/s |
| Noise | <78 db |
Infrared system | Drying System form | Infrared ray |
| Power | 10 units, 3X1KW/unit, total 30KW |
| Arrangement | 4 units on both sides, 2 units on back wall |
| Control system | Implementation of standards | BS EN 60204:2006+A1:2009 |
| Features | painting, baking, lighting, emergency stop switch,
temperature display, failure indication |
| Special Item | Rated power:40KW |
