Quick Details
Type: Spray Booths
Power: 37KW
External Size: 7000x5430x3300(mm)
Internal Size: 6900x3900x2600(mm)
Voltage: 3phase 380V / 220V/415V 50Hz 60Hz
Certification: ISO9001:2008
Disc Dia.: None
No Load Speed: None
Place of Origin: Guangdong, China (Mainland)
Brand Name: Weilongda
Model Number: WLD6000
Exhaust filter: Multilayer glass fiber fixed in the air outlet
Ceiling light: 24 pieces of 36w lamps
Packaging & Delivery
Packaging Details: | Polyfoam and carton,1 set in a 20GP container;4 sets in a 40HQ container |
|---|
| Delivery Detail: | 7-10 days after receiving 30% deposit |
|---|
Specifications
16 years paint booth factory
Cheap price and high quality
Furniture use available
Good service and timely delivery
Established in 2000,our factory is a very big and professsional spray booth,prep station
and mixing room manufacturer in Guangzhou,China.Welcome to visit us.
WLD6000 Infrared Heating Car painting Oven (Economic Type) Specifications:
| External Size:(mm) | 7000x5430x3000 | Front Door:(mm)
Aluminum Frame |
3000(w)x2600(h) |
| Internal Size:(mm) | 6900x3900x2600 | Total Power:(kw) | 37 |
| Cabin System | Wallboard | Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, EPS foam Density is 14kg/m³ ; The colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting. It keeps high insulation performance. Four colors for your choice, including blue, red, orange and white. High quality galvanized steel roof panel.
|
| Basement | No. |
| Door | 3 pieces of aluminum front doors. Size: 3000(w)*2600(h). 1 piece of emergency door. |
| Air Circulation System | Intake Fan | 2x4kw intake fan. Manual damper. Siemens technology production, large air volume and low noise. Air flow: 24,000m3/h.The wire core of our fans is full cooper so our fans are very durable. |
| Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of straight pipe750*750*1000, and 1piece of elbow. |
| Filtering | Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The floor filter can capture paint and dust emission when painting. The air cleanliness in the working environment can reach 98%. |

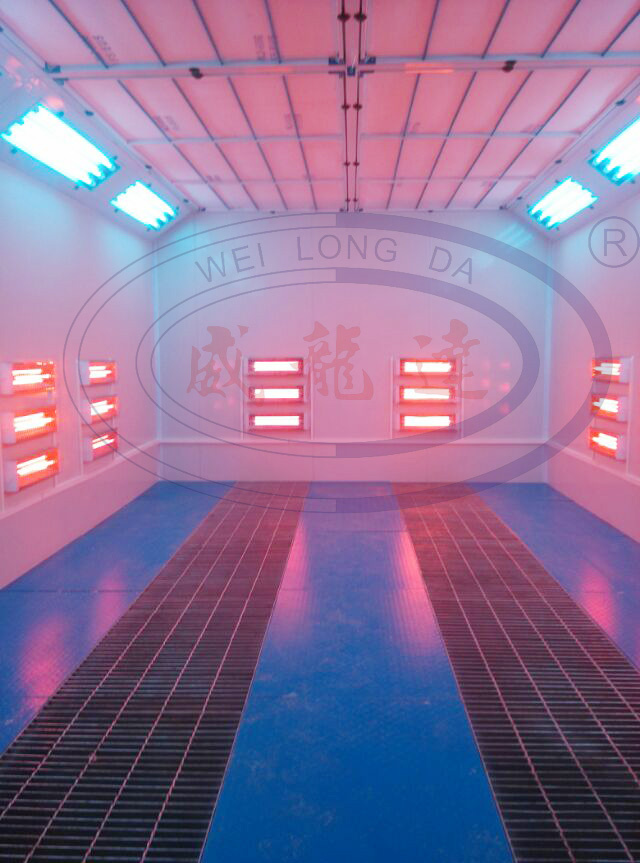

| Heating System | Infrared lamp | Consist of 28 set of infrared lamp. Each set of infrared lamp have protected net.(Optional infrared lamp :consist of 10set,each set have a cover, a stainless steel mirror reflector and 3 tubes, total 30 tubes. ) Infrared Heat radiation have a feature of high penetration, efficient, no noise, pollution free etc. |
| Air make up cabinet | The surface plate is powder coated galvanized plate, antirust, strong and beautiful;The frame is treated by hot-dip, antirust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity. |
| LED Lighting System | Light tube | Ceiling light has 24 pieces of 16w LED lamps. 800 Lux. the grade of lighting box's dustproof and waterproof reach IP54 grade. |
| Light box | Welded galvanized plate, powder coated treatment, surface brightness, color uniformity. |
| Filtering System | Pre-filter | Grade G2 plate type fiber glass filter; Dual filtering structure. The
Pre-filter can capture granules larger than 10μm. |
| Ceiling filter | EU5 grade high efficient filter; Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98%. |
| Ceiling filter support | Made of tube steel frame, thickness of 1.2mm, epoxy powder coating, antirust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton. |
| Pollution Control System | Multi-layer fiberglass filter to filter paint and dust emission. |
| Control system | Control panel | Microcomputer control system |
| Function | Painting, constant temperature painting , drying, lighting, painting time and
drying time setting ;emergency stop switch, failure indication etc, especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe. |
Customize---Basement: Galvanized steel sheet and square pipe construction. 2 rows of grids with floor filter and 3 rows of checkered plates, 2 pieces of ramps.
