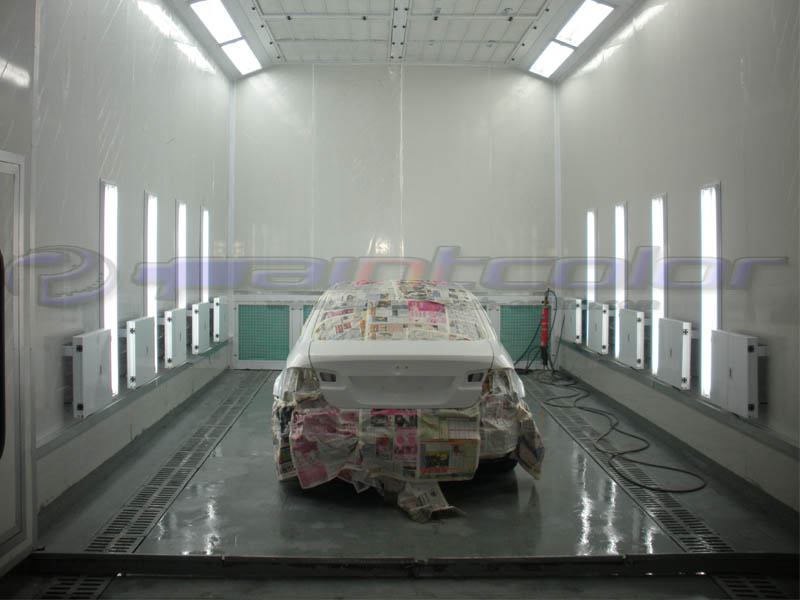

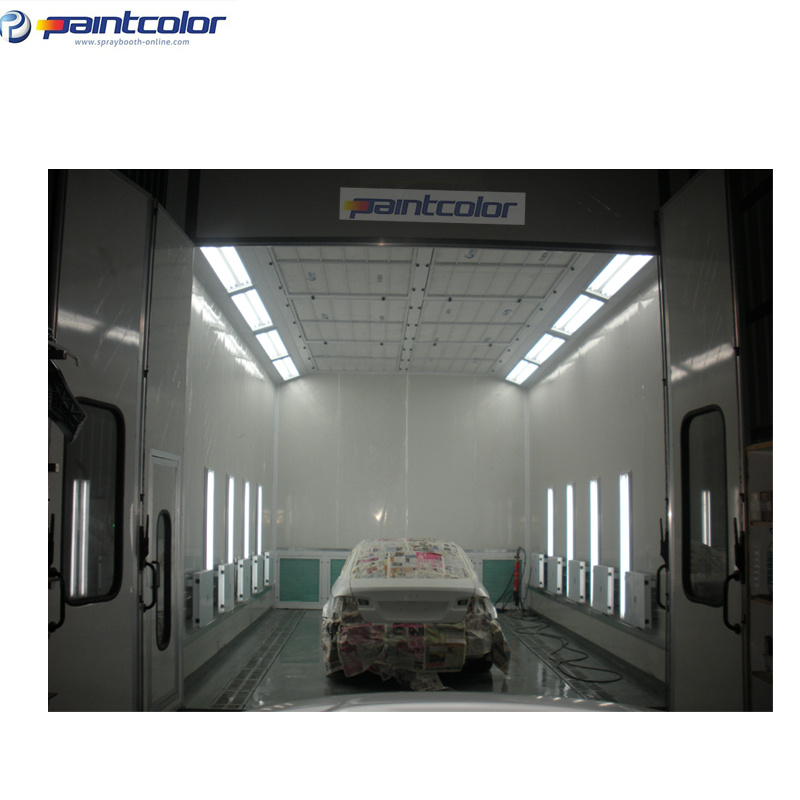

Infrared Baking System Europe Standard Spray Booth (PC14-IB1S)
| Price: |
US $ 8000-15000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union,Money Gram |
Model No: PC14-IB1S spray booth
High level with Infrared rays short wave heating system, environmental friendly and energy conservation.
1. Outside Dimension(L×W×H)mm:7000×5360×3430
2. Inside Dimension(L×W×H)mm:6900×4000×2650
3. Door Dimension(W×H)mm:3000×2600
4. Blast Volume: 25000 m3/h/set
5. Loaded Airflow Velocity m/s:0.3
6. Air Replacement Frequency time/h:320
7. Maximum Working Temperature:80ºC
8. Luminance: 800(Lux)
9. Noise: ≤85dB
10. TSP:≤1.4
11. Total Power:47.5kw

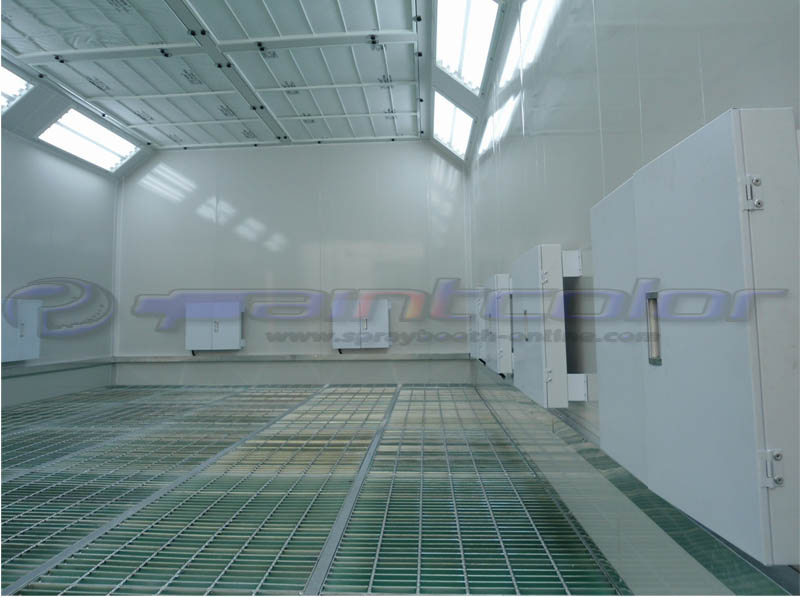

1) Outside dimension: 7000*5360*3150mm(L*W*H);2) Inside dimension: 6900*4000*2650mm(L*W*H);3) Basement: complete zinc steel assemble, height is 300mm, all grilles; all ramps, support weight: 300kg-500kg; 4) Front main door: 3-fold( 3 leaf), 3000*2600 mm (W*H);with new locking system; Personal door: 800*2000(W*H), 1pcs5) Wall Panels: thickness is 50mm, and insulation is flame-resistant and heat-preserving rock wool panel 0.6mm double skinned sheet

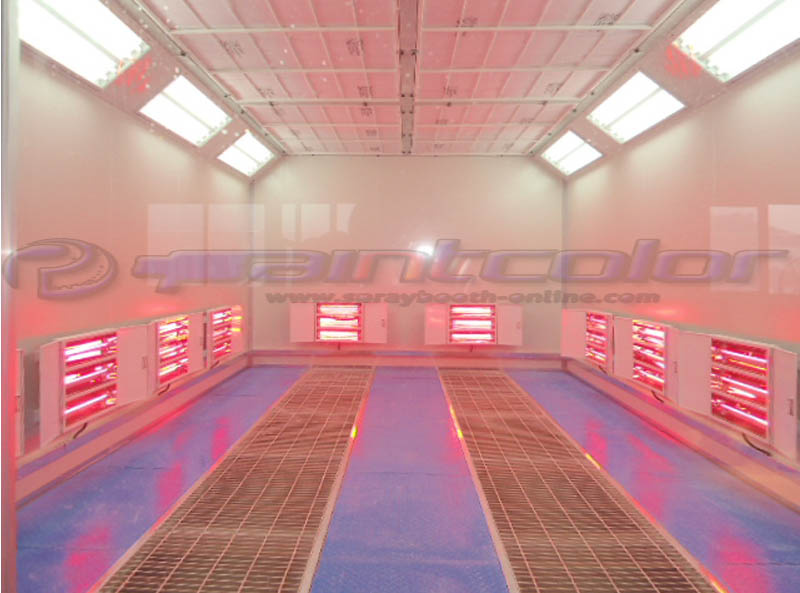

;galvanized sheet roof plate;6) Lighting: Ceiling Lights: 8Groups*4Pcs=32Pcs *36W;Side Lights: 8Groupsx2Pcs=16Pcs x36W; Philip tube; with electric ballast;7) Glass: all glass is toughened glass;8) Generator: back upper intake air, back upper extract air, quadrate steel frame, coated steel;9) Intake and exhaust air system: Intake fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000m3/h, with Siemens motor;Extract fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000m3/h, with Siemens motor;Air intake pipe: 4m straight pipe from the cabin and 1 elbow, with manual damper;Air exhaust pipe: 4m straight pipe from the cabin and 1 elbow, with rain proof hat;with manual damper;10) Heating system: 10 units short wave infrared lamp, 3pcs/unit, 1KW/pcs, total power: 30KW, electric button to control each group (3pcs IR lamps in a group) with circuit switch in control box; 11) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter, bag filter, active carbon pockage filter;12) Control box: spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter;Control box details:A. triangle drive, the fan works step by step; all lines contacts with the floor wire;B. CE electrical componentsThe Total Power: 47.5KW
| Prod Model: |
PC14-IB1S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V/3p, 220V/1p, and Special Voltages |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White or Blue |
| Air Intake: |
1X7.5kw Big Impeller Fan |
| Air Exhaust: |
1X7.5kw Big Impeller Fan |
| Heating: |
Infrared Rays Short Wave |
| Wall Panel: |
50mm or 70mm EPS, Rock Wool or PU |
| Heating Mode: |
Infrared Ray |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CE |
| Condition: |
New |
| Airflow Direction: |
Full Downdraft Airflow Way |
| Type: |
Automotive Spray Booth |
