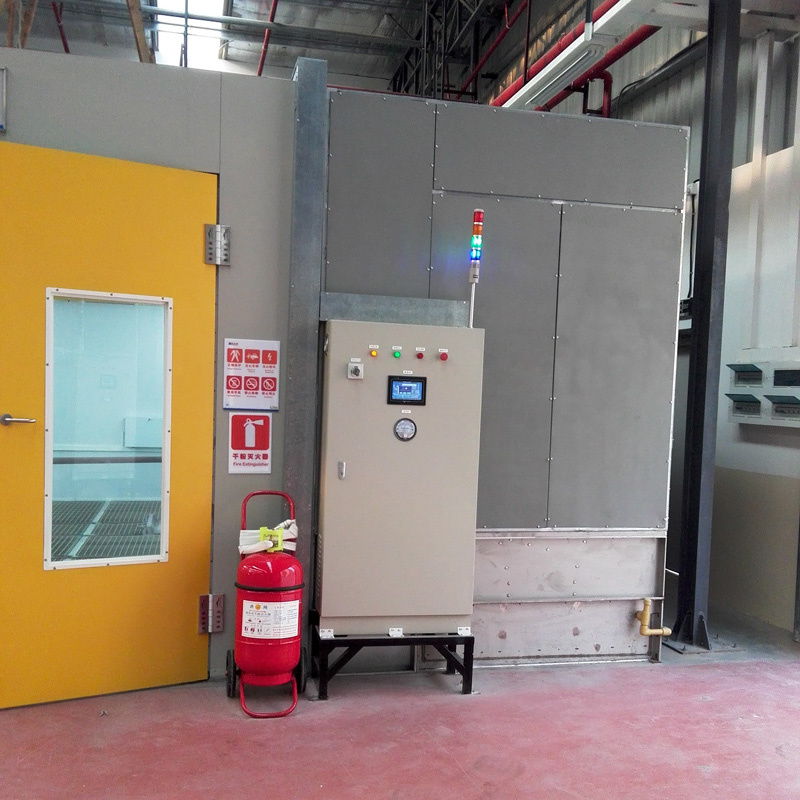

Infitech Water Curtain Spray Painting Room

The equipment mainly consists of: room body, air supply system, air exhaust system, air filtration system, lighting system, paint mist treatment system, waste gas treatment system, electronic control system and safety, fire control system, etc..

No.	Specification	Item	Specification	note
1.	The internal dimension	mm	7000×4000×2800
2.	Airflow Direction		Fully Undershot-type
3.	Paint mist treatment		Water rotation treatment
4.	Exhaust gas treatment		Activated carbon filter+Pulafei filter
5.	Equipment empty loaded	m/s	≥0.28
6.	Total discharge volume	m³/h	28000
7.	Inlet fan	KW/Set	*7.51**
8.	Exhaust fan	KW/Set	*7.51;151*
9.	Air filtration efficiency		>98%
10.	Luminance	LUX	≥1200
12.	Noise	dB(A)	≤85
13	Rate power	KW	25

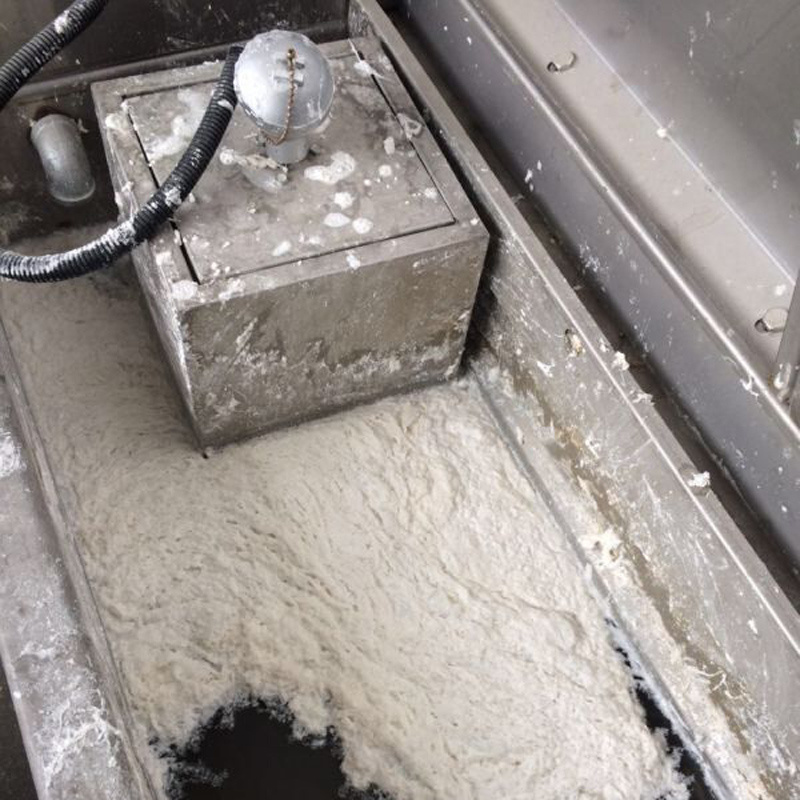

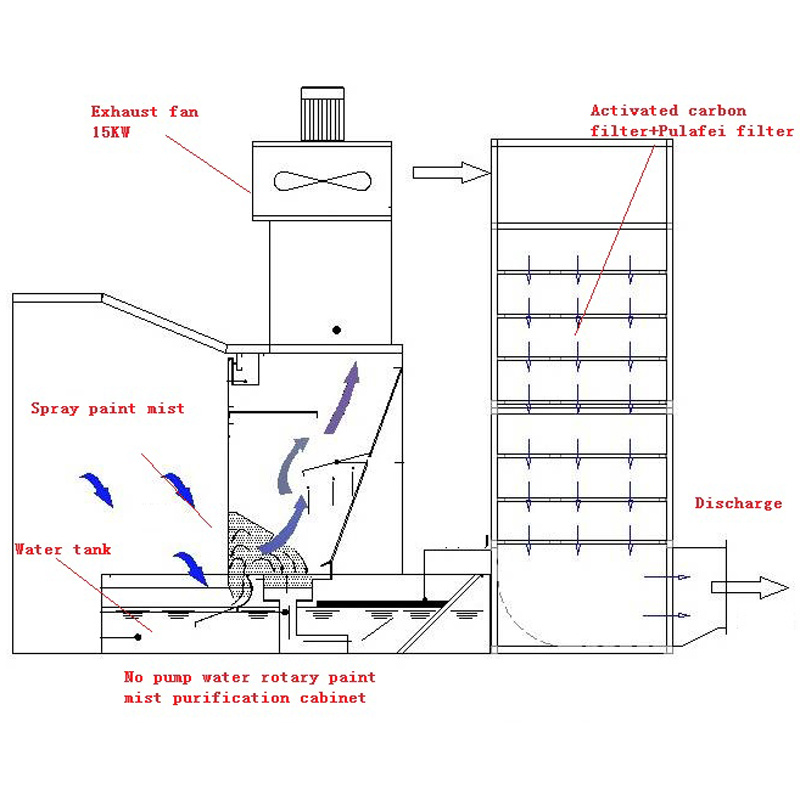

Paint mist collection and processing system

Through a layer of filter 97% of paint mist, Sheshan lacquering through flame-retardant glass fiber materials, paint mist particles under the interception, collision, absorption of accommodating in the material, and gradually weathered into powder, in through the early effect filter to filter out the dust particles, in the exhaust gas is harmful gas, formaldehyde, benzene, xylene, and other adsorbed by activated carbon to make the gas be purified, the purified gas can be directly discharged.

If you wish to discuss any aspect of your project

...Please feel free to contact us..

Thank you for your viewing !

Prod Model:	YFT-C701
Color:	Blue, Orange, White, and So on
Warranty Time:	2 Years
Popular In:	Europe, Australia
Technology:	German Techology
Inside Size:	7000X4000X2800mm(Lxwxh)
Configuration Level:	Medium Configuration Spray Booth
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Wet-type
Condition:	New
