Infitech Water-Curtain Spray Booth for Small Parts

Name: Infitech Water-Curtain Spray Booth for Small Parts
Brand: ibuyautoparts.com
SKU: 732683312
Availability: InStock
Rating: 4.3 (66 reviews)

Price:	US $ 1000-5000/Piece
Min Order:	2/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

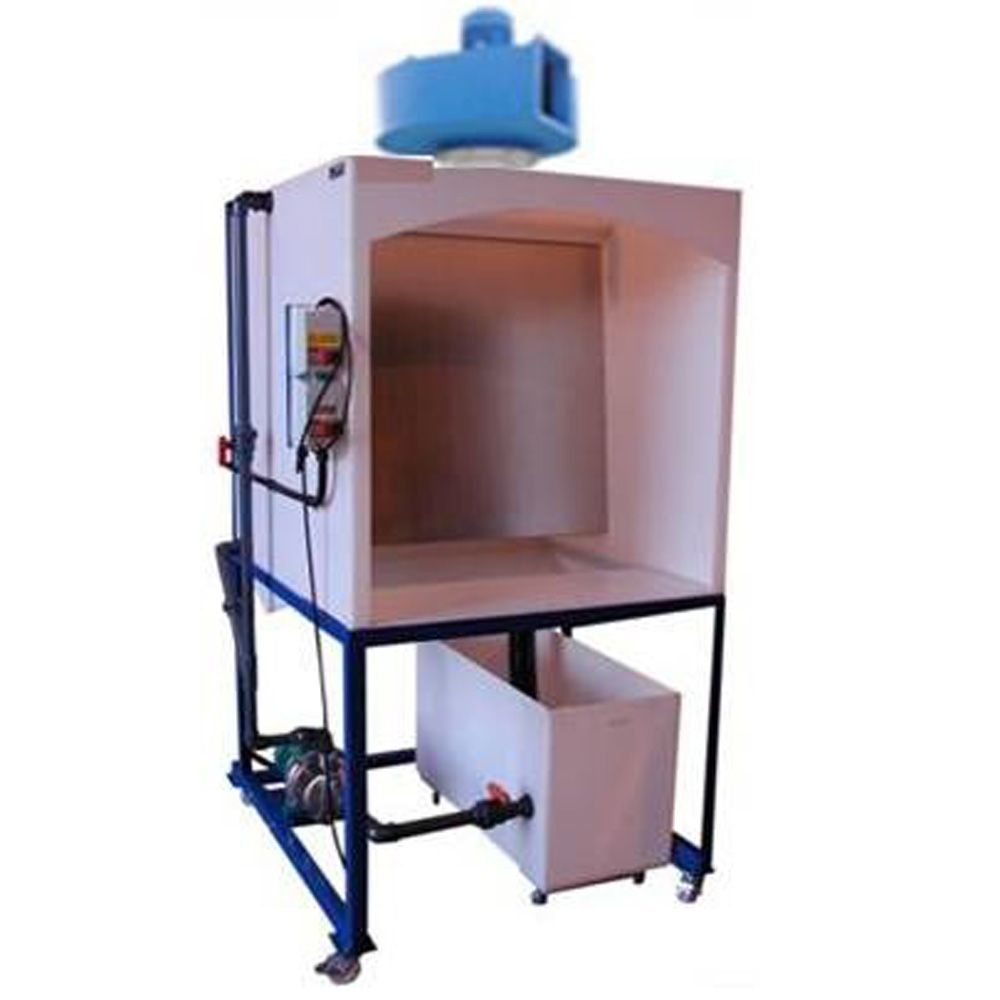

INFITECH water-curtain spray booth for small parts

Overall introduction

The water-curtain plate of the environmental water-curtain spray booth is made from stainless steel. It is easy to clean and anti-corrosive. The water can be used circularly, and paint slag can be collected and fished out, which does not pollute the environment.
The water-curtain spray booth is reliable and easy to operate, with large air volume and good filtration effect. The water volume is adjustable.
It can be used to paint small hardware products and small work-piecees.

Technical parameters

Item	Specifications
Dimensions	1500 x 1200 x 2100mm(L X W X H)
Working area	1400 x 1100(W x H)
Height of water tank	800mm
Ceiling light	1 unit x 2pcs, 36W each IP54 Flame-proof
Pump	0.75kW, 1 set
Water pipe	PVC pipe valve
Water supply system	Equipped with float switch
Drainage system	Equipped with a draining float
Motor and fan	1 set, axial flow fan with belt drive motor, 1.1 kW
Air volume	7,500 m³/h
Empty air speed	0.3m/s
Paint mist treatment	Wet type, by water
Rated power	2 kW

Company introduction

Guangzhou Infitech is professional manufacturer of spray booth. What we supply is not only limited to manufacturing, but the whole solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your individual needs, both in terms of size and performance.

Prod Model:	IT-W1
Usage:	Painting Small Parts
Warranty:	2 Years
Empty Loaded Air Speed:	0.3m/S
Voltage:	220V/60Hz
Certification:	CE
Airflow Direction:	Cross-flow Type
Heating Mode:	Diesel
Paint Mist Treatment:	Wet-type
Condition:	New

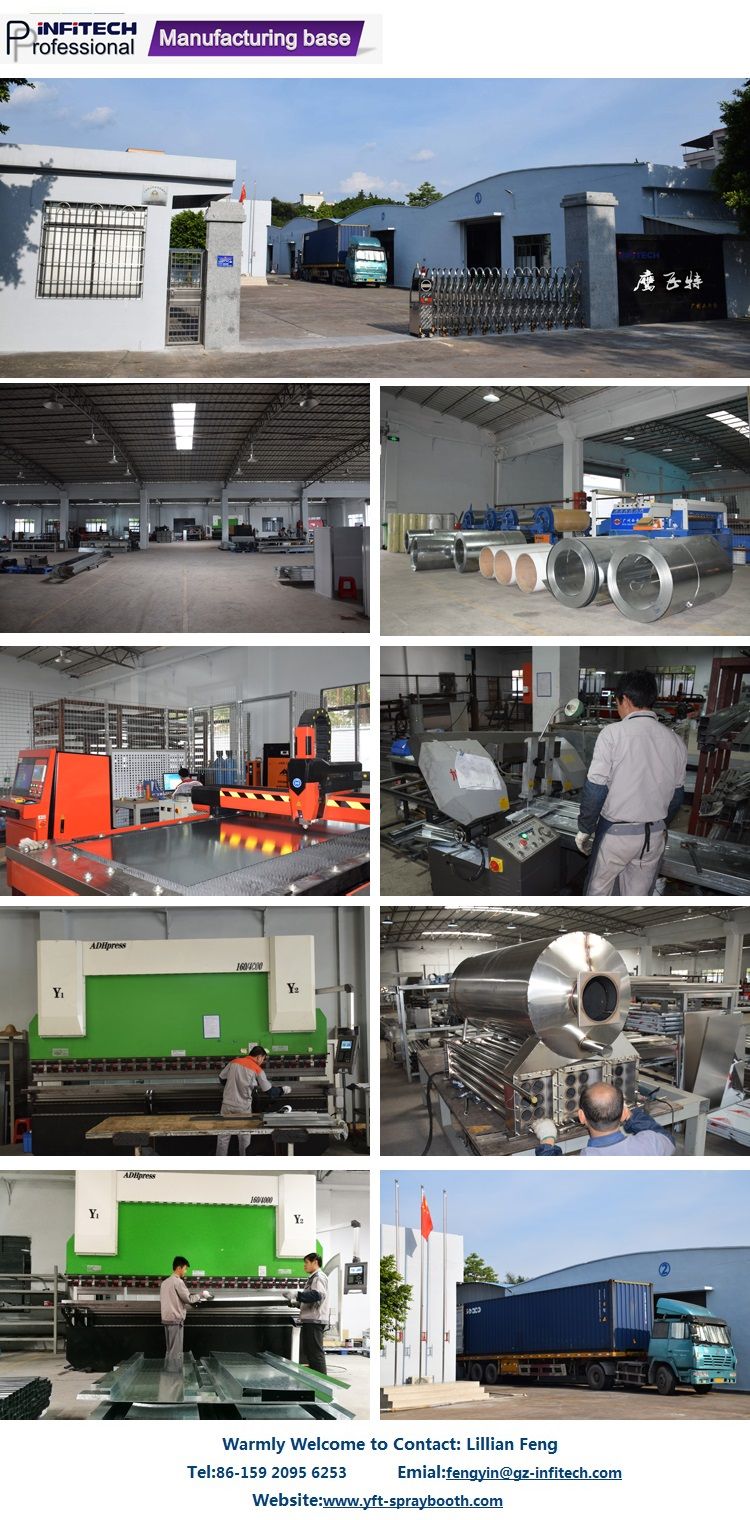

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.

Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
