Infitech Spray Paint Booth of Australian/New Zealand Standard
Price: |
US $ 15000-80000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
Customized |
Air Volume: |
18, 000m3/H |
Empty Loaded Air Speed: |
+/- 0.45m/S |
Motor: |
5.5kw, Siemens Motor |
Brightness: |
>1000lux |
Certification: |
CE |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Airflow Direction: |
Rear Semi Downdraft |
Product Description
INFITECH spray paint booth of Australian/New Zealand standard
Spray Booth |
STANDARD DESIGN | AS/NZS 4114.1:2003 |
BOOTH DIMENSIONS | |
Internal dimensions | 8000 X 4000 X 2800mm (L X W X H) |
External dimensions | 10170 X 4110 X 3460mm (L X W X H) |
BASEMENT | |
Basement design | No basement, with rear air extraction plenums |
Air extraction type | Rear semi down draft extraction type |
Air extraction plenum description | Frame structure, size: 2000 X1200 X 660mm |
Filtration area | 4.8m2 |
CABIN | |
Cabin structure | Wall panel vertical insert |
Plenum height | 600mm |
WALL PANEL | |
Wall panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
Top material | 50mm dual-skin insulated panels filled with heat resistant rock wool |
Edge material | 1.2mm galvanized plate bending forming |
ENTRANCE DOOR | |
Form | Manual door, 3 wing entry door (2 + 1 structure) |
Size | 3200 X 2700 mm (W X H) |
Quantity | Product entry door, 1 set |
Door description | Containing frame, with safety glass observation window |
PERSONNEL DOOR | |
Form | Frame structure |
Size | 800 X 2000 mm (W X H) |
Quantity | 3 sets |
Door description | With safety glass observation window |
SIDEWALL LIGHTING | (Accessible from outside the booth) |
Quantity and power | 10 sets of light fixtures, each 2 X 18W, total 360W |
Lighting arrangement | On both sides |
Lighting description | Protection grade IP55, CE certified |
CEILING LIGHTING | (Accessible from outside the booth) |
Quantity and power | 10 sets of light fixtures, each 4 X18W, total 720W |
Lighting arrangement | On both sides |
Lighting description | Protection grade IP55, CE certified |
Brightness | > 1000Lux |
FILTRATION SYSTEM | |
Pre-filter | G3 grade pre-filter bag filter |
Ceiling filter | F5 class filter cotton, Model SP-600G |
Floor filter | Pleated andreae filter + Fiberglass paint arrestor filters |
Exhaust filter | Fiberglass paint arrestor filters |
INTAKE SYSTEM | |
Intake fan | Direct-type turbine fan |
Intake fan power and motor description | 5.5KW, 970rpm, 380V, 50Hz, SIEMENS |
Parameter of intake fan | 18000m3/h, 650pa |
EXHAUST SYSTEM | |
Exhaust fan | Direct-type turbine fan |
Exhaust fan power and motor description | 5.5KW, 970rpm, 380V, 50Hz, SIEMENS |
Parameter of exhaust fan | 18,000m3/h, 650pa |
Equipment empty loaded air speed | +/- 0.45m/s |
NOISE | <78db |
MANUAL DAMPER | 1 piece |
ELECTRIC DAMPER | 1 piece |
CONTROL SYSTEM | |
Implementation standards | Standard Y/Δ Drop Starting Control System |
PLC programmable logic controller | PLC control, higher reliability, lower failure rate |
Pressure detection | Pressure gauge indicates pressure inside the booth. |
Features | Painting, levelling, lighting, emergency stop switch, failure indication |
SPECIAL ITEM | Rated power:12.5KW |
Mixing Room |
STANDARD DESIGN | AS/NZS 4114.1:2003 |
BOOTH DIMENSIONS | |
Internal dimensions | 8900 X 2500 X 2800mm (L X W X H) |
External dimensions | 9010 X 2610 X 2850mm (L X W X H) |
WALL PANEL | |
Wall panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
Top material | 50mm dual-skin insulated panels filled with heat resistant rock wool |
Edge material | 1.2mm galvanized plate bending forming |
OBSERVATION WINDOW | |
Size | 300 X 1100mm (W×H) |
Quantity | 4 sets |
Window description | 5mm thick; Tempered glass |
PERSONNEL DOOR | |
Form | Frame structure |
Size | 800 X 2000 mm (W×H) |
Quantity | 2 sets |
Door description | With safety glass observation window |
CEILING LIGHTING | (Accessible from outside the booth) |
Quantity and power | 4 sets of light fixtures, each 4 X 18W, total 288W |
Lighting description | Protection grade IP55, CE certified |
Brightness | > 650Lux |
FILTRATION SYSTEM | |
Pre-filter | Plate type fiberglass filters |
VENTILATION SYSTEM | |
Direct drive motor (Exhaust Air) | 1 X 1.5KW, 1450RPM, 380V, 50HZ, SIEMENS |
Parameter of exhaust fan | 5,000m³/h |
SPECIAL ITEM | Rated power:2KW |
Drying Room |
STANDARD DESIGN | AS/NZS 4114.1:2003 |
BOOTH DIMENSIONS | |
Internal dimensions | 8050 X 9000 X 2800mm (L X W X H) |
External dimensions | 8110 X 9000 X 3460mm (L X W X H) |
WALL PANEL | |
Wall panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
Top material | 50mm dual-skin insulated panels filled with heat resistant rock wool |
Edge material | 1.2mm galvanized plate bending forming |
PLATE ROLL UP DOOR | |
Door size | 4000 x 2800mm(BxH) |
Quantity | 2 sets |
Door description | - Door filled with polyurethane foam, with reinforced ribs;
- With observation window;
- Anti-crash protection device: intelligent wireless airbag anti-pressure sensor, when the bottom edge contacts obstacles, the door immediately moves in opposite direction, which provides safety protection for vehicles below the door;
- Anti-sagging device: when the drive mechanism fails, the safety protection device will block the door automatically, preventing the door from falling down.
|
CEILING ANGLED LIGHTING | (Accessible from outside the booth) |
Quantity and power | 10 sets of light fixtures, each 4X18W, total 720W |
Lighting arrangement | On both sides |
CEILING LIGHTING | (Accessible from outside the booth) |
Quantity and power | 6 sets of light fixtures, each 2X18W, total 216W |
Lighting arrangement | Distributed evenly at the ceiling |
Lighting description | Protection grade IP55, CE certified |
Brightness | >250Lux |
FILTRATION SYSTEM | |
Pre-filter | Plate type fiberglass filters |
VENTILATION SYSTEM | (FOR WASTE GAS) |
Direct drive motor (Exhaust Air) | 1×1.5KW, 1450RPM, 380V, 50HZ, SIEMENS |
Parameter of exhaust fan | 5000m³/h |
SPECIAL ITEM | Rated power:3KW |
Sanding Room |
STANDARD DESIGN | AS/NZS 4114.1:2003 |
BOOTH DIMENSIONS | |
Internal dimensions | 4290 X 7000 X 2800mm (L X W X H) |
External dimensions | 5000 X 7100 X 3460mm (L X W X H) |
FOUNDATION AND FLOOR | |
Foundation | Without metal foundation, with air extraction plenum chambers installed at rear wall of the cabin |
Filtration area | 3.5 m² |
WALL PANEL | |
Wall panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
Top material | 50mm dual-skin insulated panels filled with heat resistant rock wool |
Edge material | 1.2mm galvanized plate bending forming |
ELECTRIC CURTAIN DOOR | |
Form | Electric drive |
Size | 5800 X 2650 mm (W X H) |
Quantity | 1 set |
Door description | -Three sessions, the middle part is transparent, the upper and bottom part is gray, rising speed is 0.2m /s; Can be controlled internally and externally; - Anti-flaming cloth, tidy, compressed, good sealing effect |
CEILING LIGHTING | (Accessible from outside the booth) |
Quantity and power | 9 sets of light fixtures, each 4 X18W, total 648W |
Lighting arrangement | Distributed evenly at the ceiling |
Lighting description | Protection grade IP55, CE certified |
Brightness | >800Lux |
FILTRATION SYSTEM | |
Bottom filter & exhaust filter | Pleated andreae filter + Fibreglass paint arrestor filter |
VENTILATION SYSTEM | |
Direct drive motor (Exhaust Air) | 2 X 1.5KW, 1450RPM, 380V, 50HZ, SIEMENS |
Parameters of exhaust fan | 10,000m³/h |
ELECTRIC CONTROL CABINET | - Fan start, emergency stop switch, failure indication; - Lighting switch; - 1x380V16A explosion-proof power supply; 2x 220V explosion-proof power supply; - 2 compressed air connectors, configure the gauge, regulator valve; - TOOL CABINET, easy job material storage, sorting, provide efficiency; |
SPECIAL ITEM | Rated power:3KW |

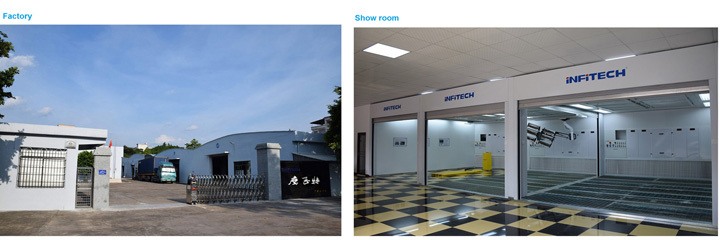

Safety deviceFactory photos

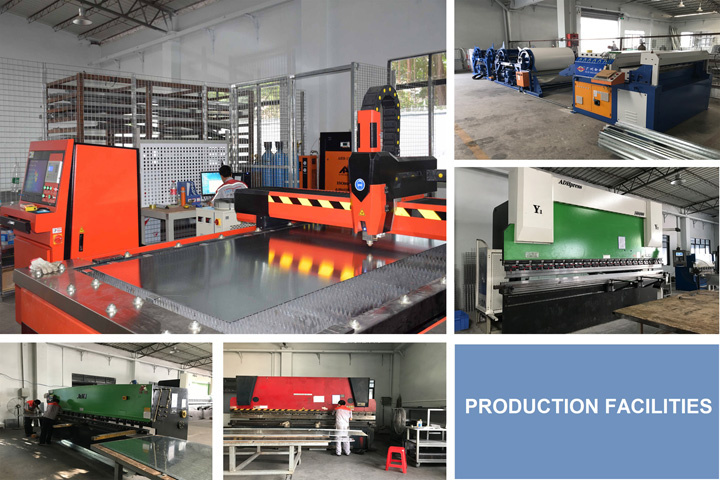

Production equipment
