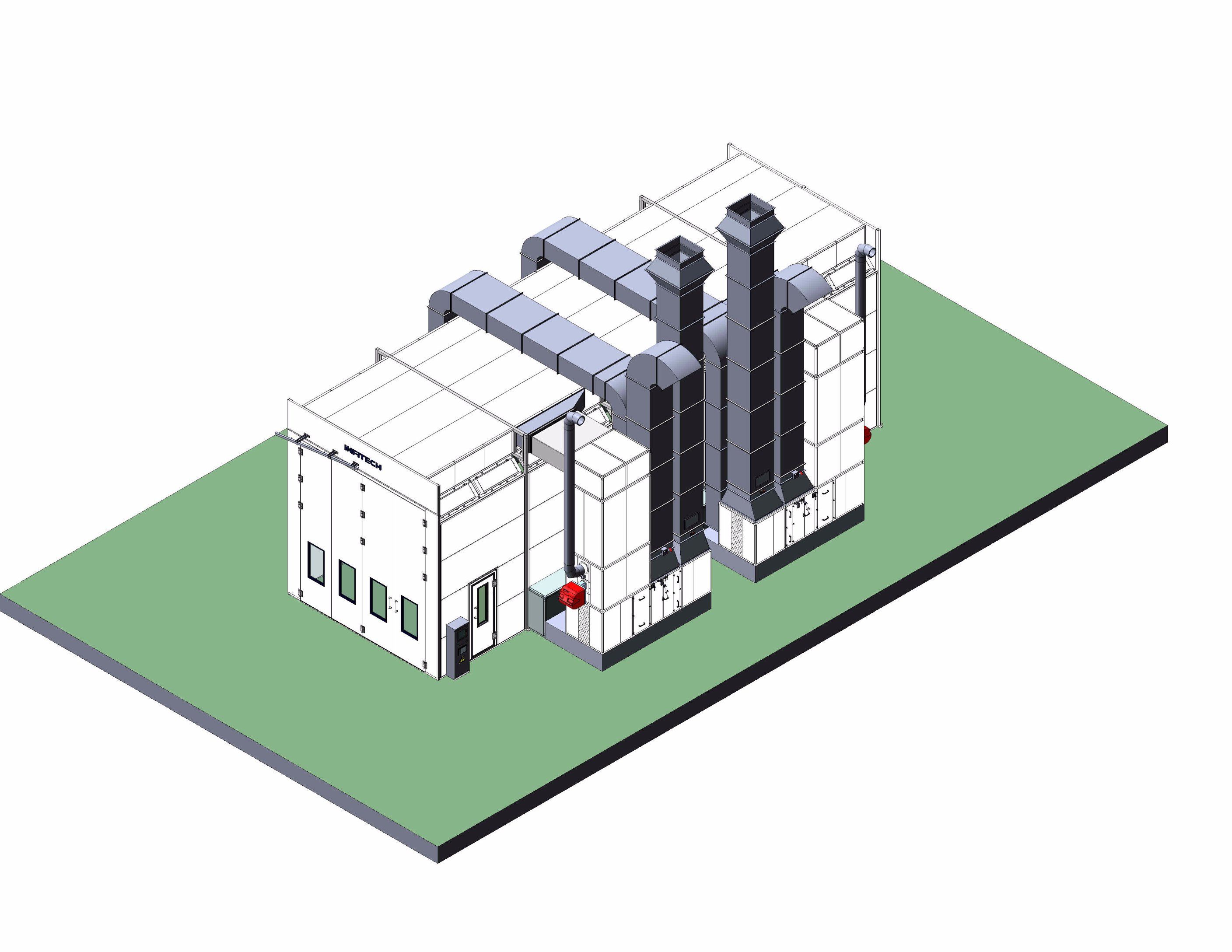

INFITECH premium paint spray booth for bus/truck

Product: IT-15-5B(side downdraft)

Basic information

DESIGN STANDARD	BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009
BOOTH DIMENSIONS
Internal dimensions	15000 X 5000 X 5000mm (L X WX H)
External dimensions	15170 X 8320 X 5800mm (L X WX H)
BASEMENT
Basement design type	No base, with two rows of air exhaust plenums
Air extraction type	Side down draft extraction type
Air exhaust plenums	Frame structure, size: 9000 × 660 ×1200mm (L×B×H)
Filtration area	21.6m²
CABIN
Cabin structure	80 x80 3.0 thick square tube frame, gantry structure Wall panel horizontal insert
Plenum height	800mm
WALL PANEL
Wall panel	60mm dual-skin insulated panels filled with heat resistant rock wool
Top material	50mm dual-skin insulated panels filled with heat resistant rock wool
Edge material	1.2mm galvanized plate bending forming
ENTRANCE DOOR
Form	Manual door, 4 wing entry door (3+1 structure)
Size	4270 X 4800mm (W X H)
Quantity	Product entry door, 1 set
Door description	Containing frame, with safety glass observation window
PERSONNEL DOOR
Form	Frame structure
Size	800×2000 mm (W×H)
Quantity	2 sets ***4 sets as optional
Door description	With safety glass observation windows
SIDEWALL LIGHTING	(LED lamp)
Quantity and power	18 sets of light fixtures, each 4 X 18W, total 1296W
Lighting arrangement	On both sides
Lighting description	Protection grade IP55
CEILING LIGHTING	(LED lamp)
Quantity and power	20 sets of light fixtures, each 4 X 18W, total 1440W
Lighting arrangement	On both sides
Lighting description	Protection grade IP55
Brightness	> 1000Lux
FILTRATION SYSTEM
Pre-filtration	G3 grade pre-filter bag filter
Ceiling filter	F5 class filter cotton, Model SP-600G
Floor filtration	Pleated andreae filters + Fiberglass paint arrestor filters
Exhaust filtration	Activated carbon filter mat, M style
INTAKE SYSTEM
Intake fan	Direct-type turbine fan
Intake fan power and motor description	2 X11KW, 970rpm, 380V, 50Hz, CE
Parameter of intake fan	2 X 35,000m³/h, 650pa
EXHAUST SYSTEM
Exhaust fan	Direct-type turbine fan
Exhaust fan power and motor description	2X11KW, 970rpm, 380V, 50Hz, CE
Parameter of exhaust fan	2 X 35,000m³/h, 650pa
Equipment empty loaded air speed	+/- 0.26m/s
NOISE	<78db
HEATING SYSTEM
Heating exchanger material	Stainless steel 1Gr18Ni9Ti(SUS304)
Heating exchanger capacity	2 X 232KW(340.000Kcal/H)
△T temperature increase ability	25° C (from -5°C to 20°C, in painting phase)
Maximum working temperature	80° C
Burner Model	RIELLO RG5D X 2
Heating Time	10-18 minutes (from 20° C to 60° C) in baking phase
DUCTWORK
Straight ducting	20 pieces
Rain hat	2 pieces
90°elbow / 45°elbow	2 pieces / 2 pieces
Reducers	4 pieces
Manual damper/ Electric damper	2 pieces/2 pieces
CONTROL SYSTEM
Implementation standards	Standard Y/Δ drop starting control system
PLC programmable logic controller	PLC control, higher reliability, lower failure rate
Pressure detection	Pressure gauge indicates pressure inside the booth.
Power distribution facilities	CE standard electric cable, terminal box, wiring tubes and accessories
Features	Painting, heating painting, flash-off, baking, emergency stop switch, failure indication, baking delay stop protection, motor over-load and over-current protection, over-temperature alarm indication, fan and heating system interlock control
OPTIONAL
3 axis lifter with platform	It allows painter to reach all around the workpiece, greatly increase efficiency and save labor cost.
Inverter control	Inverter control, energy-saving, more economical
Touch screen control system	Touch screen control, easier to operate
Overhead steel platform
Fire-proof rolling shutter door
Plate roll-up door
SPECIAL ITEM	Rated power: 50KW

Deatiled information

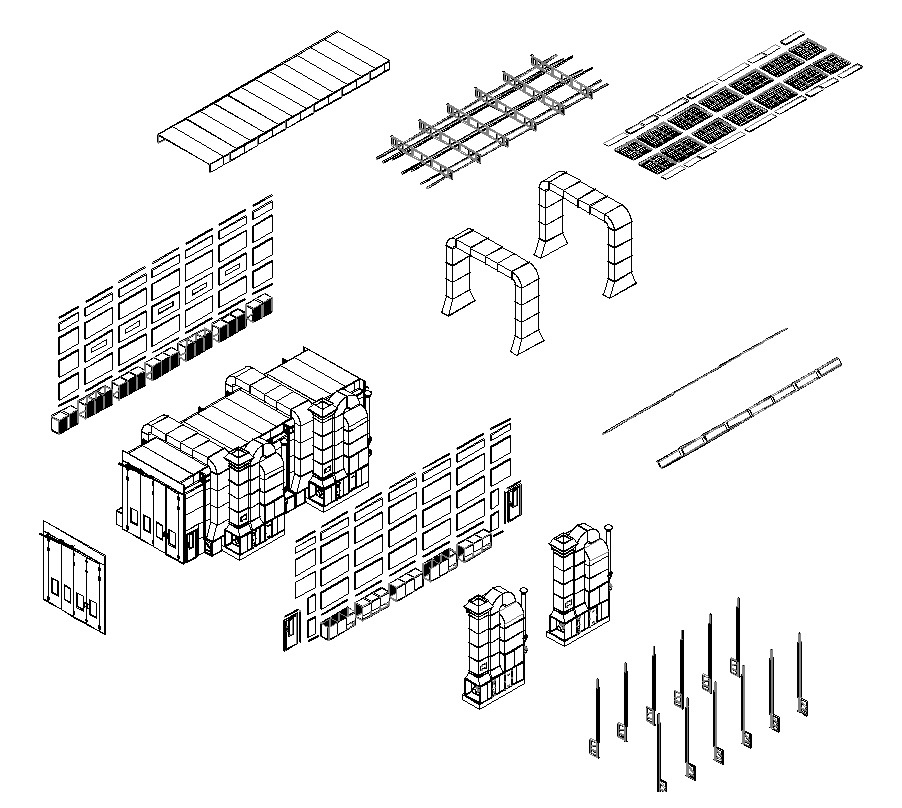

Cabin structure - Gantry structure: rigid, stable, durable, and asthetics

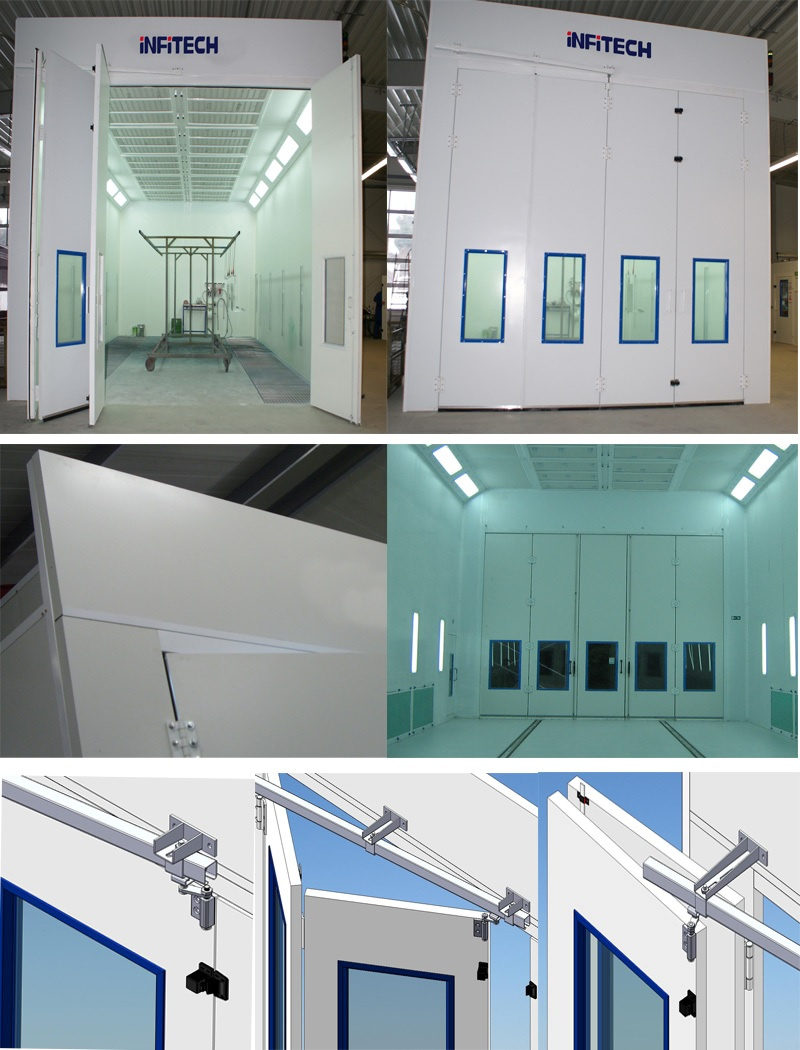

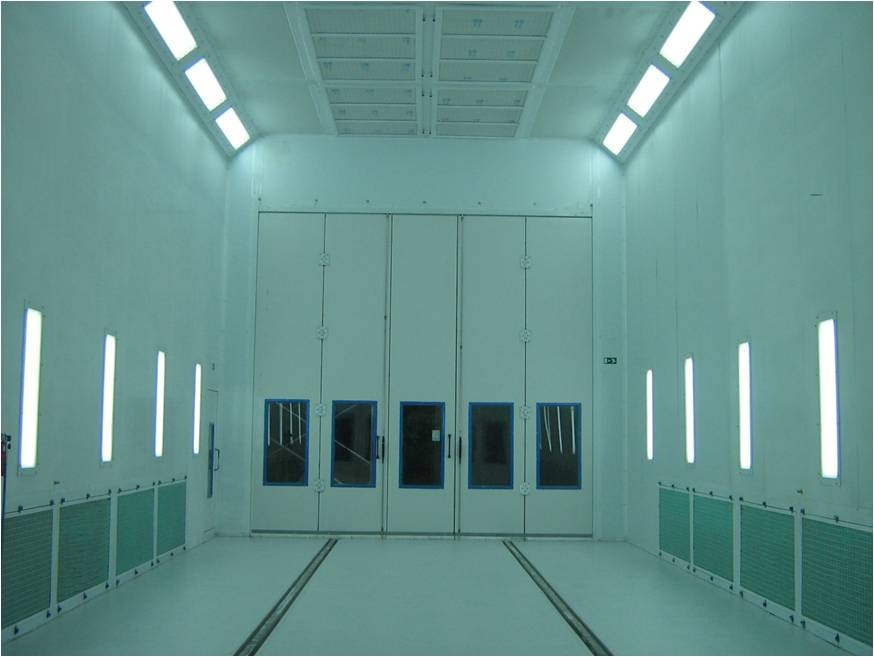

Entrance door - 4-wing entry doors with tempered observation window, equipped with anti-sagging means

Air exhaust plenums - on both sides, made of high quality galvanized steel plate, anti-corrosion capacity: over 20 years.

Lighting system
- Money saving energy efficient T-8 fixtures
- Sealed fixtures fitted with tempered glass
- IP55 protection grade, light fixtures fully meet EU standards
- 45 degree angled ceiling lights + horizontal sidewall lights create virtually shadow-free environment

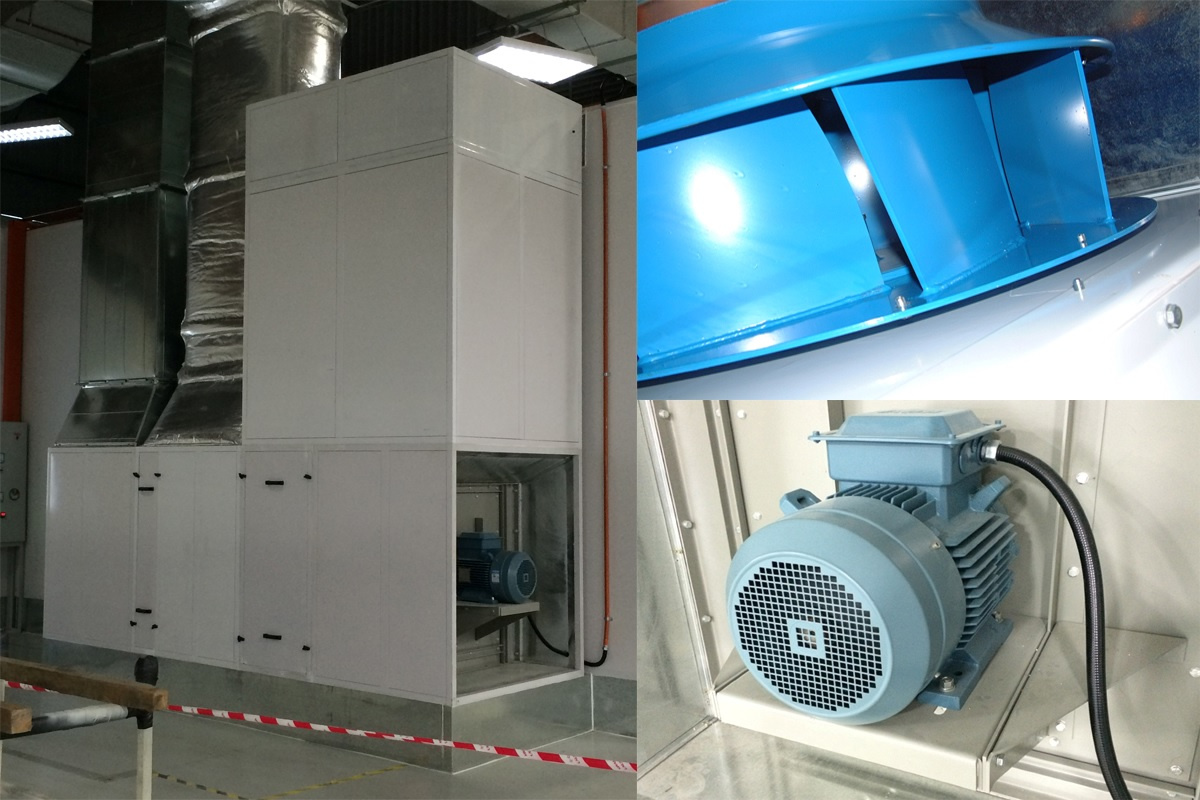

Intake & Exhaust system
- Non-spark fan design perfectly conforms to EN13355-2004 requirements for the fans.
- Motor and fan are completely separated, which is compulsory requirement for fans in EN13355-2004.
- Adopting cylinder-drive paint-bake conversion damper, more quickly and accurately.
- Direct-drive fans, virtually maintenance-free

Heating system
- Heating exchange rate reaches 85%, heating time is 10-18 min after burning.
- Adopt EU standards, three-circulation duct designed with high safety and maintainability, energy-saving.

Control Board
- Control board conforms to EN60204-1-2006;
- Control order conforms to EN13355-2004;
- Control box conforms to IP55 protection grade.

Fucntions:
- Fully automatic spray, bake, and cooling cycle
- Standard Y/Δ drop step-down start control system
- Over-temperature protection
- Motor overload and over-current protection
- Lights shut down automatically when baking
- Automatic control of the temperature and time

- Display of temperature

- Emergency stop switch

- Hour meter

- Magnehelic workspace pressure display

3 axis lifter with platform (Optional)
Increase your efficiency and save on labor costs by adding this critical tool to your paint booth. 3-axis lifter with platform allows painter to reach all around buses/trucks and large work-pieces by using joysticks instead of positioning ladders and moving tools up and down. Cut prep time in half, cut masking time in half, cut painting time in half with 3-axis lift in your paint booth.

Three-axis movement, fully reaches all around the work-piece.
Stable performance, safe and reliable.
The speed of moving left and right, up and down, in and out can be adjusted by frequency inverter.
The electric control system of the operating table conforms to anti-explosion requirements.
Foot switch controls the longitudinal movements, and inching button controls the up and down movements.
The 3D lift consists of vertical support post, working platform, sliding rail(upper rail, lower rail), lifting system, stretch system and electric control system.
The lifting capacity is not less than 300kg, moves stably.

3 axis lifter with platform
Lifting Height	3300mm from floor
Travel distance	14000mm
Travel speed	8m/min
Dimension of the platform	900 X 900mm
Lifting height of the platform	550~3300mm
Speed of moving in and out	3m/min
Lifting capacity of the platform	300KG
Total power	3KW

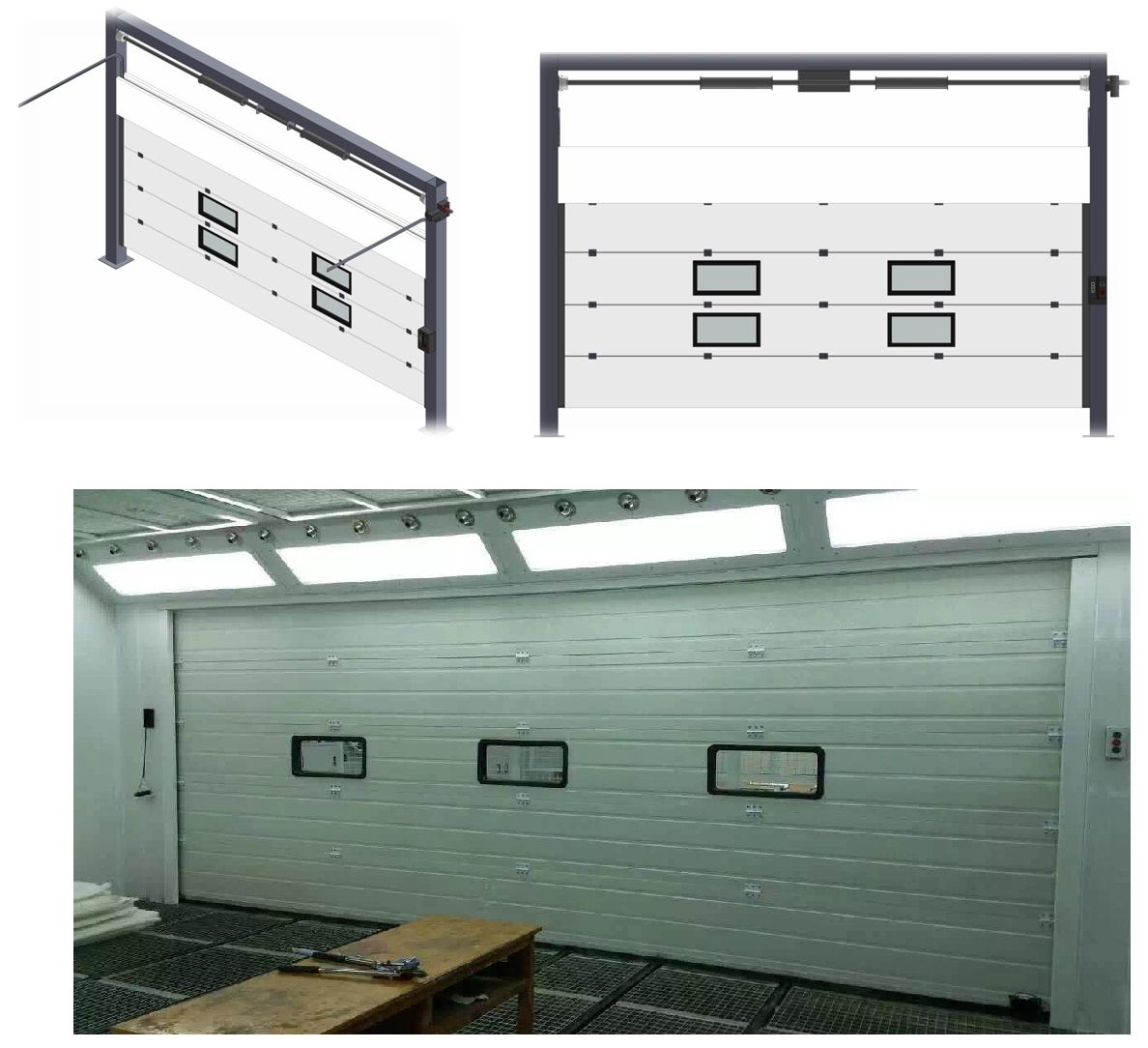

Plate roll up door (Optional)
- Door size: 5000 x 5000mm(BxH)
- Door filled with polyurethane foam, with reinforced ribs;
- With observation window;
- Anti-crash protection device: intelligent wireless airbag anti-pressure sensor, when the bottom edge contacts obstacles, the door immediately moves in opposite direction, which provides safety protection for vehicles below the door;
- Anti-sagging device: when the drive mechanism fails, the safety protection device will block the door automatically, preventing the door from falling down.

Thank you for viewing. Please do not hesitate to contact us if any inquiries. :-)
