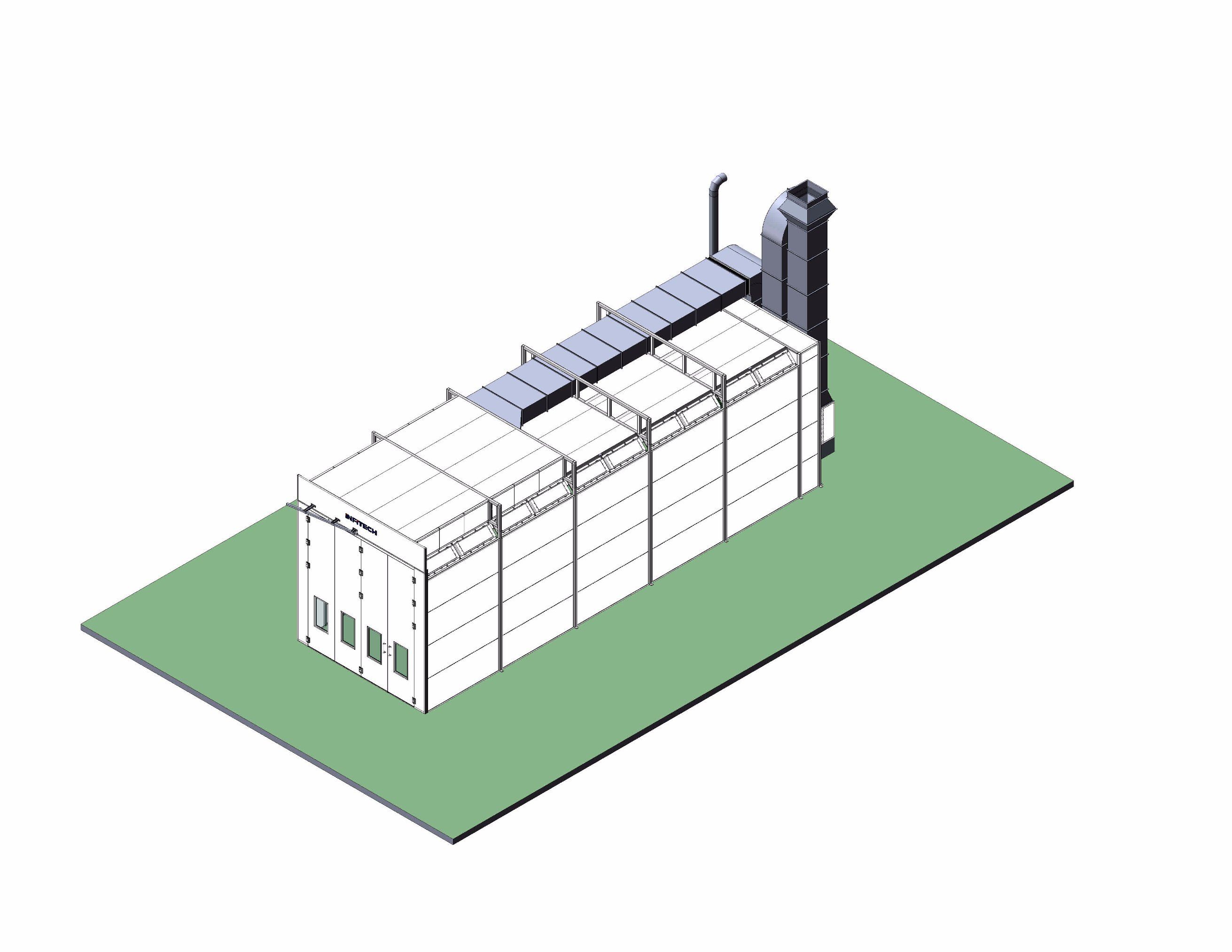

INFITECH economical bus and truck spray booth

Product: IT-15-5C (semi downdraft)

Basic information

DESIGN STANDARD	BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009
BOOTH DIMENSIONS
Internal dimensions	15000 X 5000 X 5000mm (L X WX H)
External dimensions	16620 X 5170 X 5800mm (L X WX H)
BASEMENT
Basement design type	No base, with rear semi downdraft exhaust plenums
Air extraction type	Rear semi downdraft exhaust type
Air exhaust plenum description	Frame structure, size: 5000 X 660 X 4000mm(L X B X H)
Filtration area	20m²
CABIN
Cabin structure	80 x80 3.0 thick square tube frame, gantry structure Wall panel vertical insert
Plenum height	800mm
WALL PANEL
Wall panel	60mm dual-skin insulated panels filled with heat resistant rock wool
Top material	50mm dual-skin insulated panels filled with heat resistant rock wool
Edge material	1.2mm galvanized plate bending forming
ENTRANCE DOOR
Form	Manual door, 4 wing entry door (3+1 structure)
Size	4270 X 4800mm (W X H)
Quantity	1 set
Door descriptions	Containing frame, with safety glass observation window
PERSONNEL DOOR
Form	Frame structure
Size	800×2000 mm (W×H)
Quantity	2 sets ***4 sets as optional
Door description	With safety glass observation windows
SIDEWALL LIGHTING	(LED lamp)
Quantity and power	18 sets of light fixtures, each 4 X 18W, total 1296W
Lighting arrangement	On both sides
Lighting description	Protection grade IP55
CEILING LIGHTING	(LED lamp)
Quantity and power	20 sets of light fixtures, each 4X18W, total 1440W
Lighting arrangement	On both sides
Lighting description	Protection grade IP55
Brightness	> 1000Lux
FILTRATION SYSTEM
Pre-filtration	G3 grade pre-filter bag filter
Ceiling filter	F5 class filter cotton, Model SP-600G
Floor filtration	Pleated andreae filters + Fiberglass paint arrestor filters
Exhaust filtration	Activated carbon filter mat, M style
INTAKE SYSTEM
Intake fan	Direct-type turbine fan
Intake fan power and motor description	7.5KW, 970rpm, 380V, 50Hz, CE
Parameter of Intake fan	28,000m³/h, 650pa
EXHAUST SYSTEM
Exhaust fan	Direct-type turbine fan
Exhaust fan power and motor description	7.5KW, 970rpm, 380V, 50Hz, CE
Parameter of exhaust fan	28,000m³/h, 650pa
Equipment empty loaded air speed	+/- 0.3m/s
NOISE	<78db
HEATING SYSTEM
Heating exchanger material	Stainless steel 1Gr18Ni9Ti(SUS304)
Heating exchanger capacity	232KW(340.000Kcal/H)
△T temperature increase ability	25° C (from -5°C to 20°C, in painting phase)
Maximum working temperature	80° C
Heating Time	20-30 minutes (from 20° C to 60° C) in baking phase
Burner Model	RIELLO RG5D
DUCTWORK
Straight ducting	10 pieces
Rain hat	1 piece
90°elbow/45°elbow	1 piece / 1 piece
Reducer	2 pieces
Manual damper/Electric damper	1 piece / 1 piece
CONTROL SYSTEM
Implementation standards	Standard Y/Δ drop starting control system
PLC programmable logic controller	PLC control, higher reliability, lower failure rate
Pressure detection	Pressure gauge indicates pressure inside the booth.
Power distribution facilities	CE standard electric cable, terminal box, wiring tubes and accessories
Features	Painting, heating painting, flash-off, baking, emergency stop switch, failure indication, baking delay stop protection, motor over-load and over-current protection, over-temperature alarm indication, fan and heating system interlock control
OPTIONAL
3 axis lifter with platform	It helps fully cover around work-pieces when painting.
Inverter control	Inverter control, energy-saving, more economical
Touch screen control system	Touch screen control, easier to operate
Overhead steel platform
Fireproof rolling shutter door
Plate roll-up door
SPECIAL ITEM	Rated power: 20 KW

Detailed information

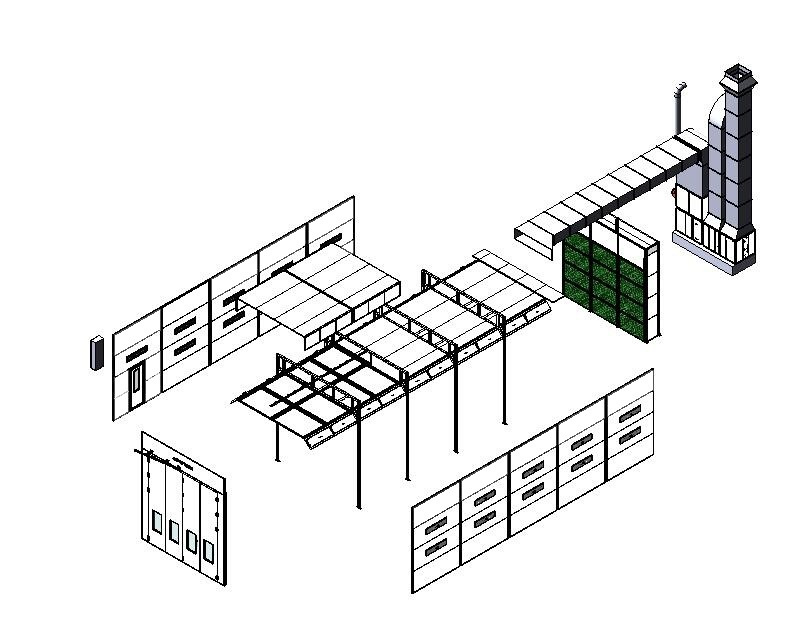

Cabin structure
- Gantry structure, rigid, stable, with high strength, asthetics

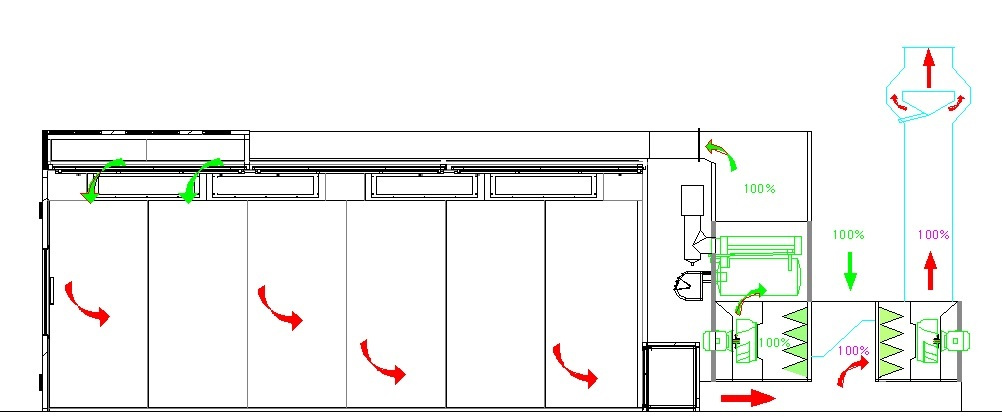

Airflow system
The semi downdraft booth has front roof intake air plenum. Fresh air enters the booth from outside the building,
ducted through the roof intake filters, and is drawn across the working chamber, over the vehicle and into the
filtered exhaust chamber at the booth rear.

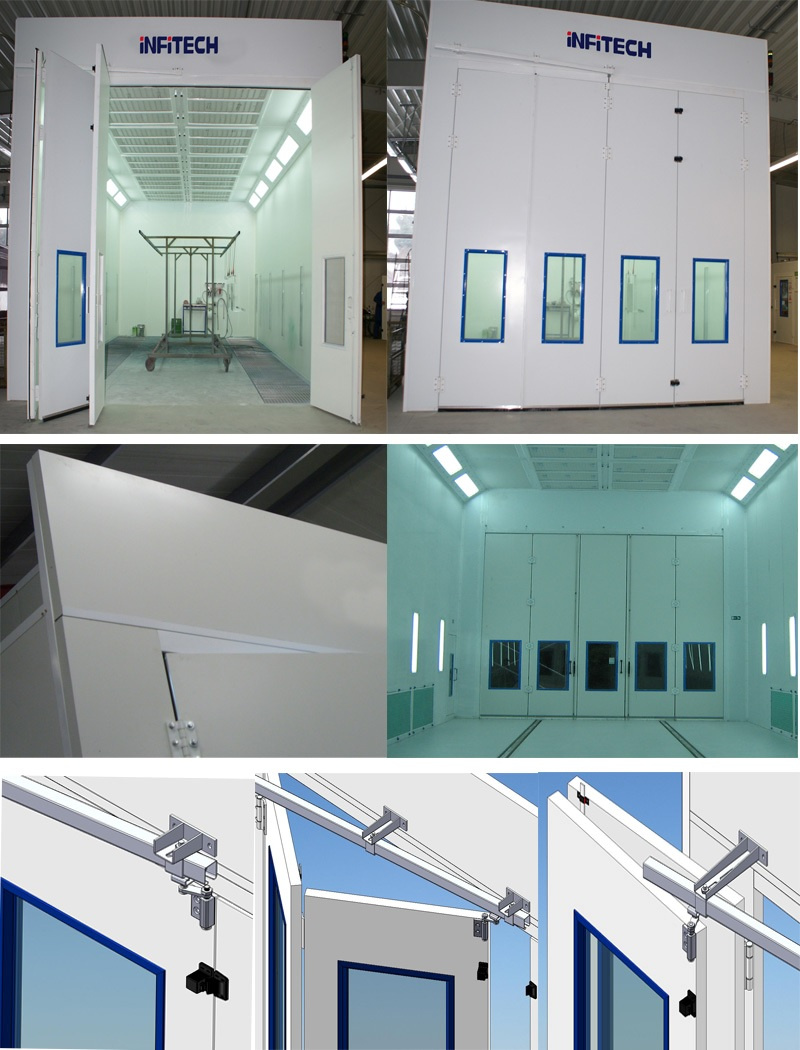

Entrance door
4-wing entry doors with tempered observation window; equipped with anti sagging means

Lighting system
- Money saving energy efficient T-8 fixtures
- Sealed fixtures fitted with tempered glass
- IP55 protection grade, light fixtures fully meet EU standards
- 45 degree angled ceiling lights + horizontal sidewall lights create virtually shadow-free environment

Filtration system

Item	Specification
Inlet filter	Bag filter
Micro-dust filter	High efficiency SP-600G
Floor filter	Pleated andreae filter + Fiberglass paint arrestor filter
Exhaust filter	Activated carbon filter mat, M type

Clips & Hinged filter racks facilitate quick and tool-free filter replacement, improve efficiency and save labor cost
(The ceiling filter can be changed within 20 minutes, and can be completed by one man.)

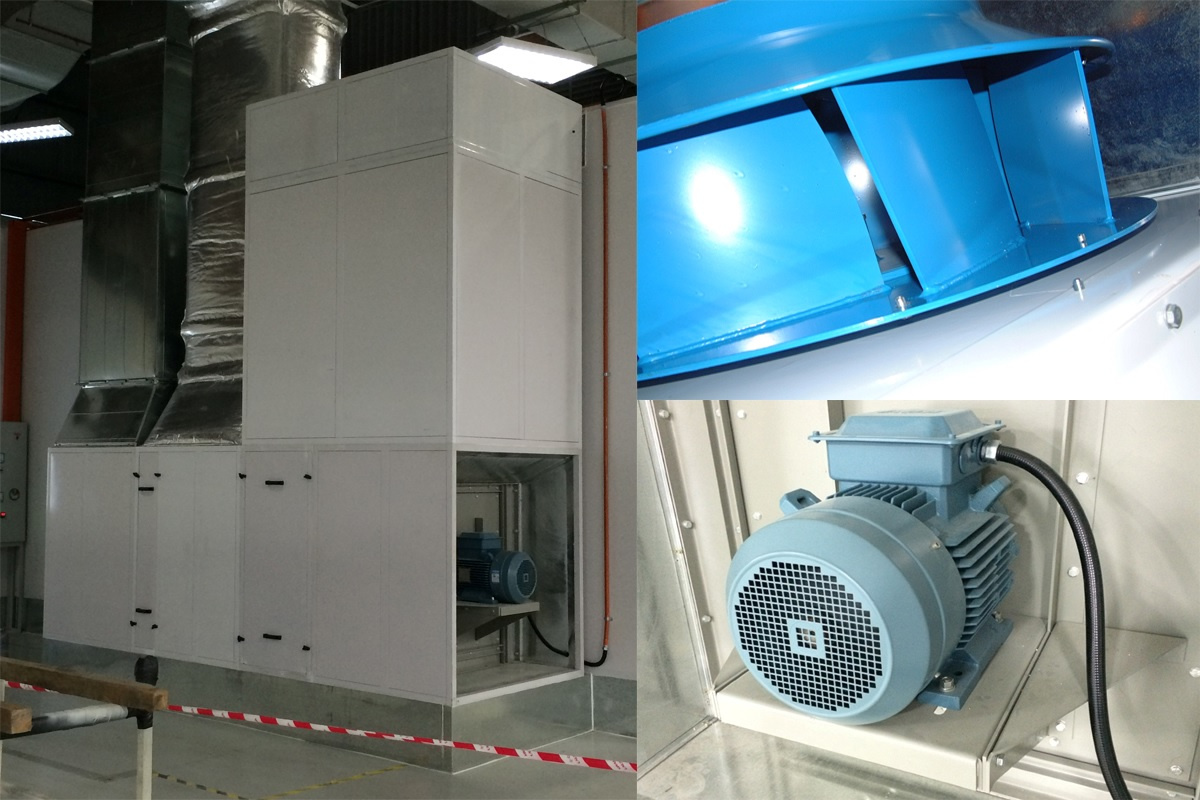

Intake & Exhaust system
- Non-spark fan design perfectly conforms to EN13355-2004 requirements for the fans.
- Motor and fan are completely separated, which is compulsory requirement for fans in EN13355-2004.
- Adopting cylinder-drive paint-bake conversion damper, more quickly and accurately.
- Direct-drive fans, virtually maintenance-free

Heating system
- Heating exchange rate reaches 85%, heating time is 20-30 min after burning.
- Adopt EU standards, three-circulation duct designed with high safety and maintainability, energy-saving.

Control Board
- Control board conforms to EN60204-1-2006;
- Control order conforms to EN 13355-2004;
- Control box conforms to IP55 protection grade.

Functions:
- Fully automatic spray, bake, and cooling cycle
- Standard Y/Δ drop step-down start control system
- Over-temperature protection

- Motor overload and over-current protection
- Lights shut down automatically when baking
- Automatic control of the temperature and time

- Display of temperature

- Emergency stop switch

- Hour meter

- Magnehelic workspace pressure display

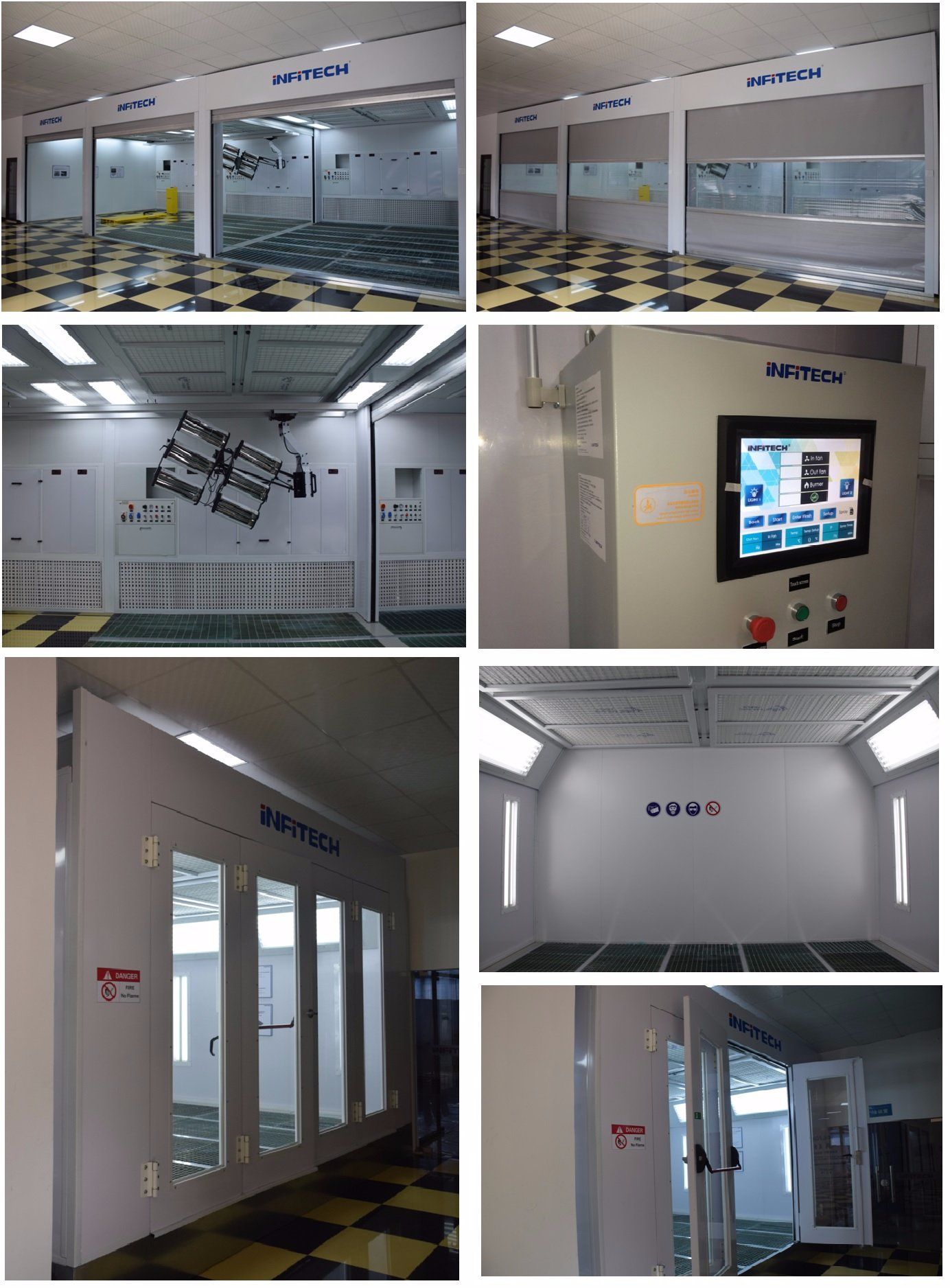

Show room

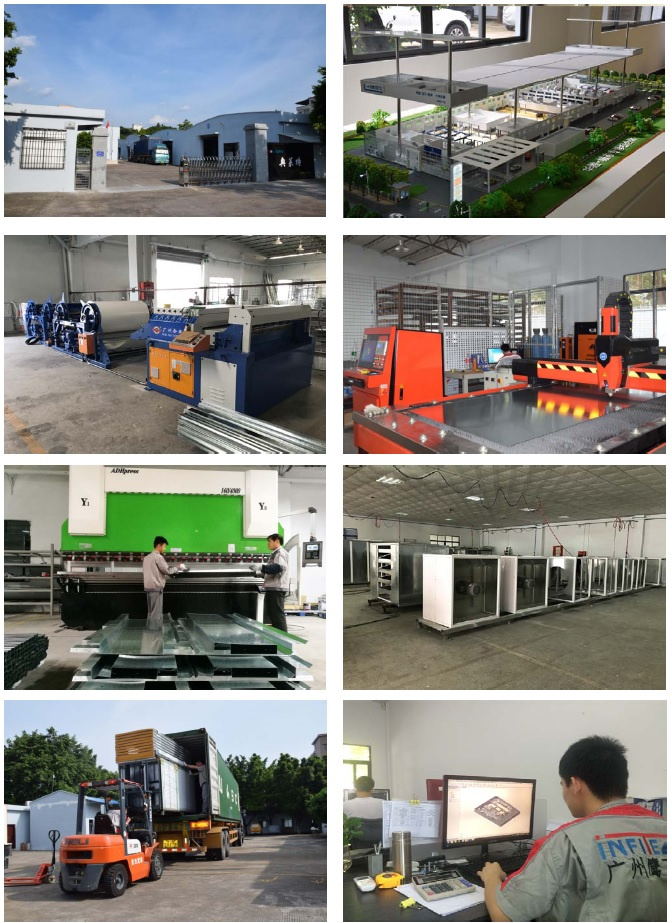

Manufacturing base

Prod Model:	IT-15-5C
Fan Capacity:	7.5kw
Air Volume:	28000 M3/H
Empty Loaded Air Speed:	+/- 0.3m/S
Noise:	<78dB
Brightness:	>1000lux
Heating Exchanger Capacity:	232kw (340.000kcal/H)
Burner Model:	Riello Rg5d
Voltage:	380V, Your Special Voltage Is Accepted.
Certification:	CE
Airflow Direction:	Cross-flow Type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
