Infitech Customized Industrial Spray Booth and Drying Booth
| Price: |
US $ 15000-80000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
INFITECH customized industrial spray booth and drying booth
| Spray Booth |
| STANDARD DESIGN | AS/NZS 4114.1:2003 |
| BOOTH DIMENSIONS | |
| Internal dimensions | 8000 X 4000 X 2800mm (L X W X H) |
| External dimensions | 10170 X 4110 X 3460mm (L X W X H) |
| BASEMENT | |
| Basement design | No basement, with rear air extraction plenums |
| Air extraction type | Rear semi down draft extraction type |
| Air extraction plenum description | Frame structure, size: 2000 X1200 X 660mm |
| Filtration area | 4.8m2 |
| CABIN | |
| Cabin structure | Wall panel vertical insert |
| Plenum height | 600mm |
| WALL PANEL | |
| Wall panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Top material | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Edge material | 1.2mm galvanized plate bending forming |
| ENTRANCE DOOR | |
| Form | Manual door, 3 wing entry door (2 + 1 structure) |
| Size | 3200 X 2700 mm (W X H) |
| Quantity | Product entry door, 1 set |
| Door description | Containing frame, with safety glass observation window |
| PERSONNEL DOOR | |
| Form | Frame structure |
| Size | 800 X 2000 mm (W X H) |
| Quantity | 3 sets |
| Door description | With safety glass observation window |

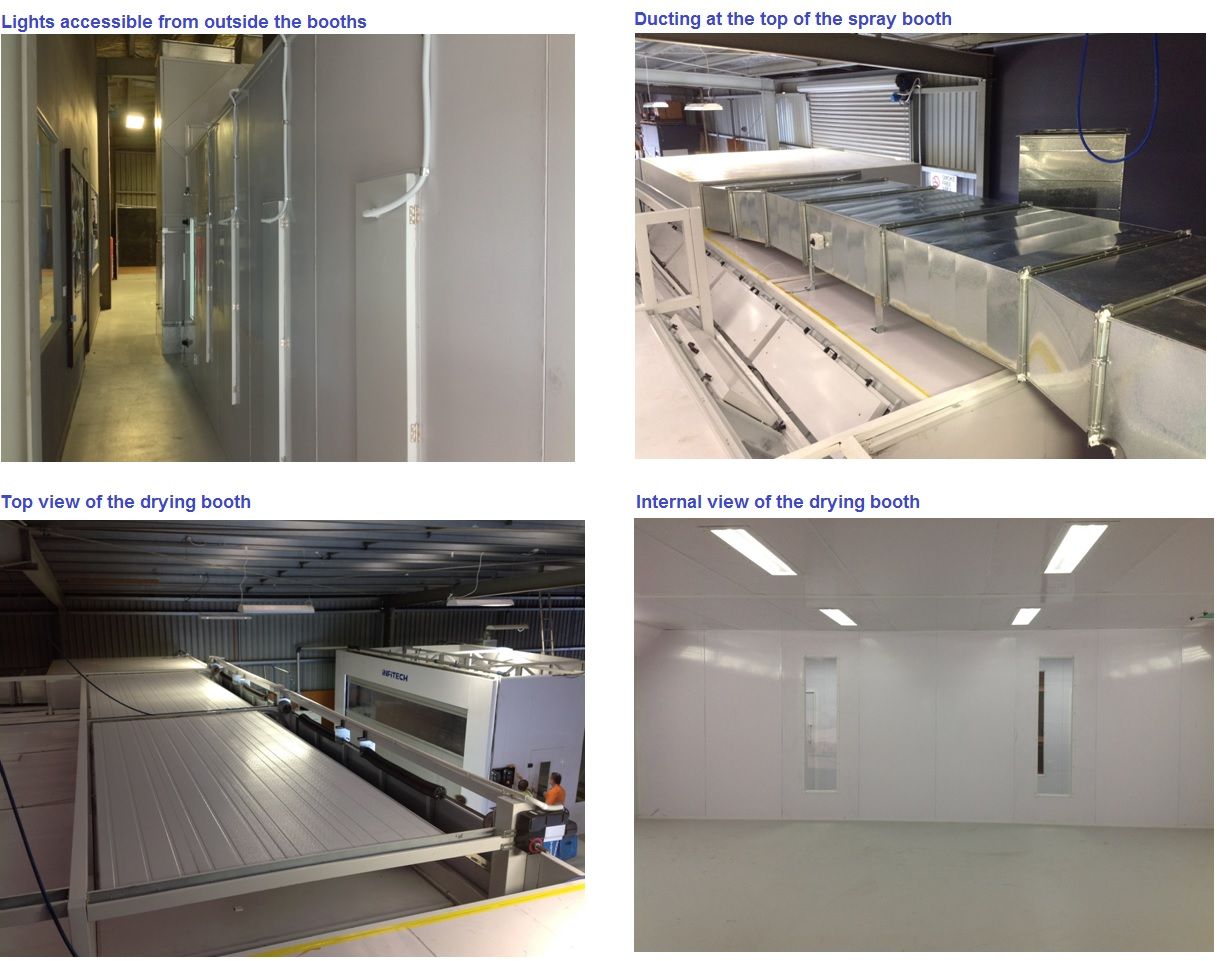

| SIDEWALL LIGHTING | (Accessible from outside the booth) |
| Quantity and power | 10 sets of light fixtures, each 2 X 18W, total 360W |
| Lighting arrangement | On both sides |
| Lighting description | Protection grade IP55, CE certified |
| CEILING LIGHTING | (Accessible from outside the booth) |
| Quantity and power | 10 sets of light fixtures, each 4 X18W, total 720W |
| Lighting arrangement | On both sides |
| Lighting description | Protection grade IP55, CE certified |
| Brightness | > 1000Lux |
| FILTRATION SYSTEM | |
| Pre-filter | G3 grade pre-filter bag filter |
| Ceiling filter | F5 class filter cotton, Model SP-600G |
| Floor filter | Pleated andreae filter + Fiberglass paint arrestor filters |
| Exhaust filter | Fiberglass paint arrestor filters |
| INTAKE SYSTEM | |
| Intake fan | Direct-type turbine fan |
| Intake fan power and motor description | 5.5KW, 970rpm, 380V, 50Hz, SIEMENS |
| Parameter of intake fan | 18000m3/h, 650pa |
| EXHAUST SYSTEM | |
| Exhaust fan | Direct-type turbine fan |
| Exhaust fan power and motor description | 5.5KW, 970rpm, 380V, 50Hz, SIEMENS |
| Parameter of exhaust fan | 18,000m3/h, 650pa |
| Equipment empty loaded air speed | +/- 0.45m/s |
| NOISE | <78db |
| Manual damper | 1 piece |
| Electric damper | 1 piece |
| CONTROL SYSTEM | |
| Implementation standards | Standard Y/Δ Drop Starting Control System |
| PLC programmable logic controller | PLC control, higher reliability, lower failure rate |
| Pressure detection | Pressure gauge indicates pressure inside the booth. |
| Features | Painting, levelling, lighting, emergency stop switch, failure indication |
| SPECIAL ITEM | Rated power:12.5KW |
| Mixing Room |
| STANDARD DESIGN | AS/NZS 4114.1:2003 |
| BOOTH DIMENSIONS | |
| Internal dimensions | 8900 X 2500 X 2800mm (L X W X H) |
| External dimensions | 9010 X 2610 X 2850mm (L X W X H) |
| WALL PANEL | |
| Wall panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Top material | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Edge material | 1.2mm galvanized plate bending forming |
| OBSERVATION WINDOW | |
| Size | 300 X 1100mm (W×H) |
| Quantity | 4 sets |
| Window description | 5mm thick; Tempered glass |
| PERSONNEL DOOR | |
| Form | Frame structure |
| Size | 800 X 2000 mm (W×H) |
| Quantity | 2 sets |
| Door description | With safety glass observation window |
| CEILING LIGHTING | (Accessible from outside the booth) |
| Quantity and power | 4 sets of light fixtures, each 4 X 18W, total 288W |
| Lighting description | Protection grade IP55, CE certified |
| Brightness | > 650Lux |
| FILTRATION SYSTEM | |
| Pre-filter | Plate type fiberglass filters |
| VENTILATION SYSTEM | |
| Direct drive motor (Exhaust Air) | 1 X 1.5KW, 1450RPM, 380V, 50HZ, SIEMENS |
| Parameter of exhaust fan | 5,000m³/h |
| SPECIAL ITEM | Rated power:2KW |
| Drying Room |
| STANDARD DESIGN | AS/NZS 4114.1:2003 |
| BOOTH DIMENSIONS | |
| Internal dimensions | 8050 X 9000 X 2800mm (L X W X H) |
| External dimensions | 8110 X 9000 X 3460mm (L X W X H) |
| WALL PANEL | |
| Wall panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Top material | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Edge material | 1.2mm galvanized plate bending forming |
| PLATE ROLL UP DOOR | |
| Door size | 4000 x 2800mm(BxH) |
| Quantity | 2 sets |
| Door description | - Door filled with polyurethane foam, with reinforced ribs;
- With observation window;
- Anti-crash protection device: intelligent wireless airbag anti-pressure sensor, when the bottom edge contacts obstacles, the door immediately moves in opposite direction, which provides safety protection for vehicles below the door;
- Anti-sagging device: when the drive mechanism fails, the safety protection device will block the door automatically, preventing the door from falling down.
|
| CEILING ANGLED LIGHTING | (Accessible from outside the booth) |
| Quantity and power | 10 sets of light fixtures, each 4X18W, total 720W |
| Lighting arrangement | On both sides |
| CEILING LIGHTING | (Accessible from outside the booth) |
| Quantity and power | 6 sets of light fixtures, each 2X18W, total 216W |
| Lighting arrangement | Distributed evenly at the ceiling |
| Lighting description | Protection grade IP55, CE certified |
| Brightness | >250Lux |
| FILTRATION SYSTEM | |
| Pre-filter | Plate type fiberglass filters |
| VENTILATION SYSTEM | (FOR WASTE GAS) |
| Direct drive motor (Exhaust Air) | 1×1.5KW, 1450RPM, 380V, 50HZ, SIEMENS |
| Parameter of exhaust fan | 5000m³/h |
| SPECIAL ITEM | Rated power:3KW |
| Sanding Room |
| STANDARD DESIGN | AS/NZS 4114.1:2003 |
| BOOTH DIMENSIONS | |
| Internal dimensions | 4290 X 7000 X 2800mm (L X W X H) |
| External dimensions | 5000 X 7100 X 3460mm (L X W X H) |
| FOUNDATION AND FLOOR | |
| Foundation | Without metal foundation, with air extraction plenum chambers installed at rear wall of the cabin |
| Filtration area | 3.5 m² |
| WALL PANEL | |
| Wall panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Top material | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Edge material | 1.2mm galvanized plate bending forming |
| ELECTRIC CURTAIN DOOR | |
| Form | Electric drive |
| Size | 5800 X 2650 mm (W X H) |
| Quantity | 1 set |
| Door description | -Three sessions, the middle part is transparent, the upper and bottom part is gray, rising speed is 0.2m /s; Can be controlled internally and externally;
- Anti-flaming cloth, tidy, compressed, good sealing effect |
| CEILING LIGHTING | (Accessible from outside the booth) |
| Quantity and power | 9 sets of light fixtures, each 4 X18W, total 648W |
| Lighting arrangement | Distributed evenly at the ceiling |
| Lighting description | Protection grade IP55, CE certified |
| Brightness | >800Lux |
| FILTRATION SYSTEM | |
| Bottom filter & exhaust filter | Pleated andreae filter + Fibreglass paint arrestor filter |
| VENTILATION SYSTEM | |
| Direct drive motor (Exhaust Air) | 2 X 1.5KW, 1450RPM, 380V, 50HZ, SIEMENS |
| Parameters of exhaust fan | 10,000m³/h |
| ELECTRIC CONTROL CABINET | - Fan start, emergency stop switch, failure indication;
- Lighting switch;
- 1x380V16A explosion-proof power supply; 2x 220V explosion-proof power supply;
- 2 compressed air connectors, configure the gauge, regulator valve;
- TOOL CABINET, easy job material storage, sorting, provide efficiency; |
| SPECIAL ITEM | Rated power:3KW |
Company introduction
Products include:
- Spray booth
- Spray line
- Preparation bay
- Mixing room
- Sandblasting booth
- Powder coating booth

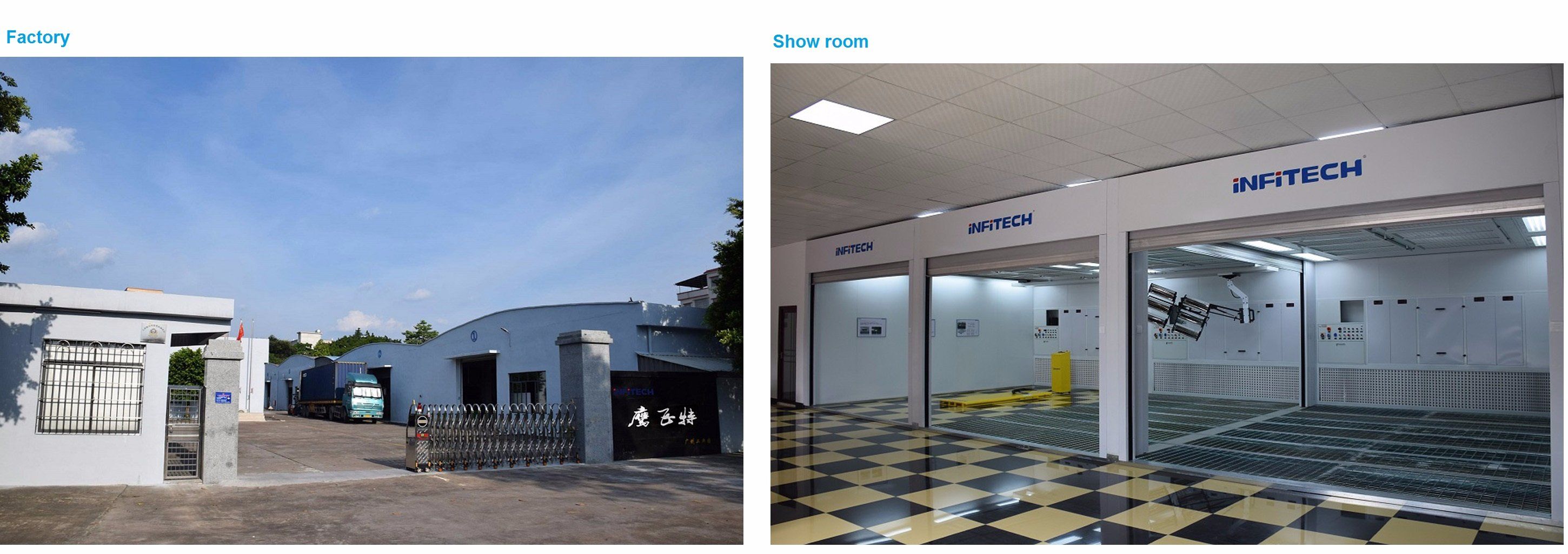

- Vacuum dry sanding system Our factory and office covers an area of 10,000 square meters. We have state-of-the-art production equipment to ensure the workmanship of our products.
We have abundant experience in the spray booth industry, and we are especially pride ourselves in delivering superior customized spray booth projects at favorable price. Our product and service enjoy a good reputation among our customers from home and abroad.

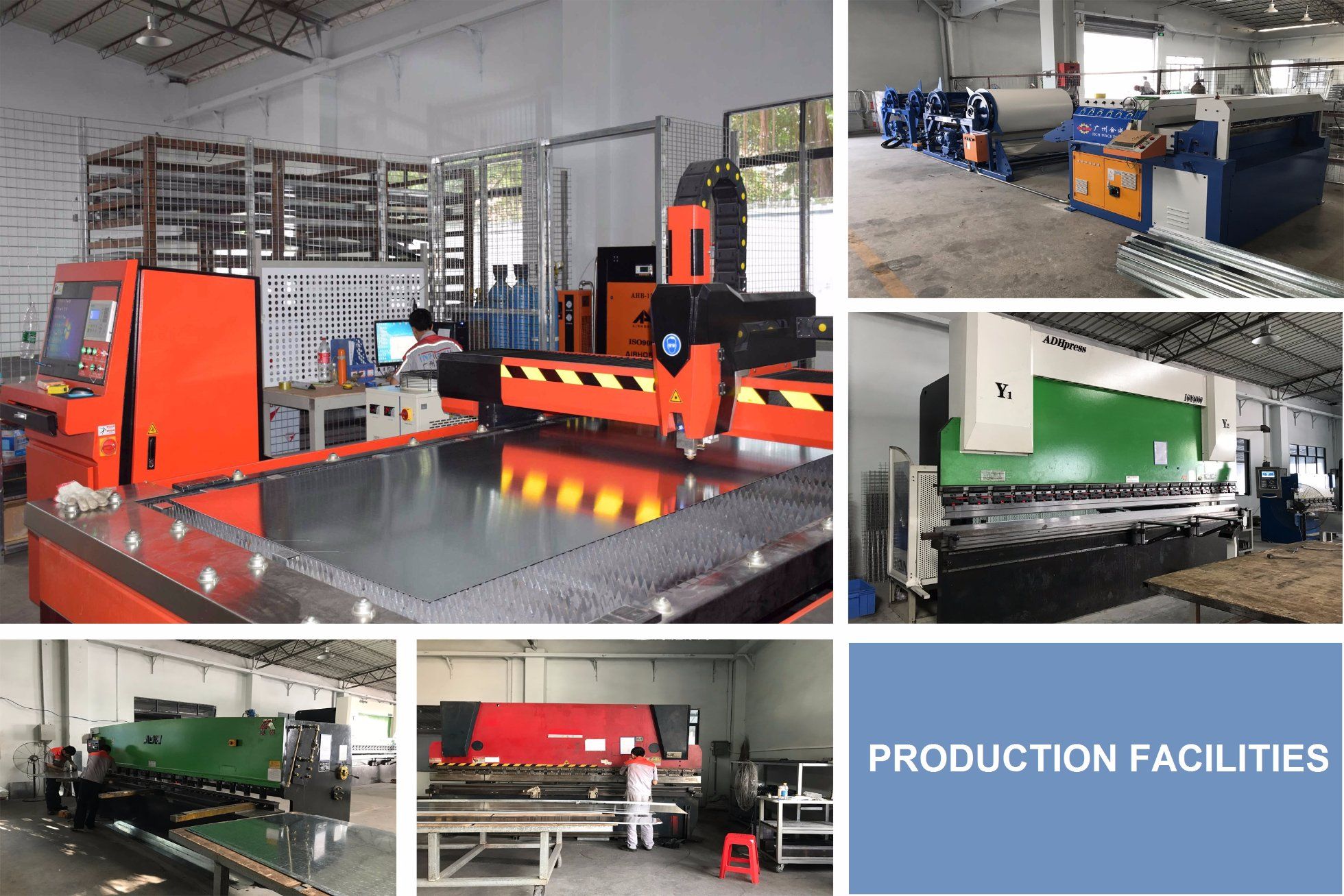

FacilitiesWe have state-of-the-art production equipment to ensure the workmanship of our products.
Exhibition
Welcome to contact us.
| Prod Model: |
Customized |
| Empty Loaded Air Speed: |
+/- 0.45m/S |
| Fan Capacity: |
18000m3/H |
| Brightness: |
>1000lux |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Airflow Direction: |
Rear Semi Downdraft |
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.
Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
