Infitech Ce Standard High Performance Spray Booth It-L9 for Mini-Bus

Overview

- Four-leaf door set for wide opening, 350mm high basement is incorporated into the spray booth as standard. In combination with the 600mm high plenum, the downdraft airflow through this cabin is second to none.
- Dual-skin insulated construction, premium shadow-free lighting, superior airflow, high-efficiency heat system and excellent overspray control give this spray booth the ability to fit any shop's standards.

Technical parameters

Features

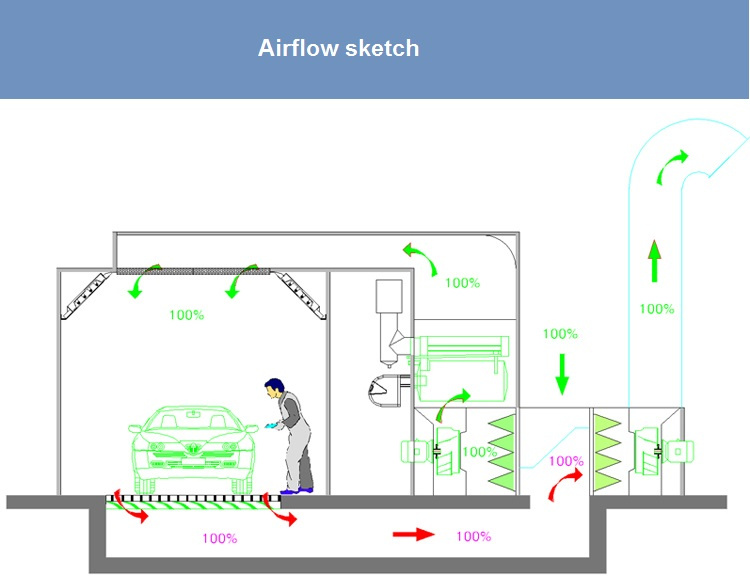

Airflow

• Full downdraft airflow for spray and cure

• Controlled airflow ceiling


Construction

• White pre-coated galvanized steel

• Dual-skin insulated panels filled with rock wool, total 50mm thick

• 600mm high plenum

• 350mm high basement, full grids

Doors

• 4-wing entry door with 4 observation windows

• Personnel door with observation window

Heat

• Intake and exhaust motors, SIEMENS

• RIELLO diesel burner

Filtration

• Pre-filter: G3 grade pre-filter bag filter

• Ceiling filter: F5 grade filter cotton, Model SP-600G

• Floor filter: G2 grade fiberglass paint arrestor filters

• Exhaust filter: Simple activated carbon filter mat, M type

Controls

•Control panel

PLC controller, pressure gauge

Functions: Painting, heating painting, flash, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection, motor over-load and over-current protection, fan and heating system interlock

Product details

Guangzhou Infitech is professional manufacturer of spray booth. What we supply is not only limited to manufacturing, but the whole solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your individual needs, both in terms of size and performance.

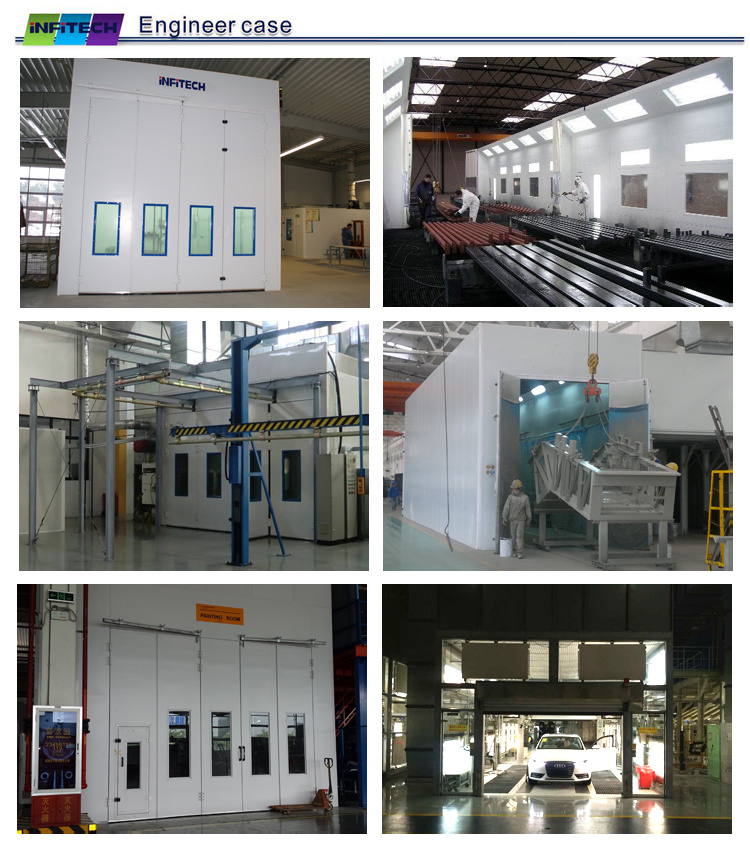

Engineering case

Trade show

1. Q: Are you manufacturer or trading company?

A: We are professional manufacturer, with abundant experience in providing pre-sales technical support, project design, product manufacturing, installation & maintenance guidance and after-sales service. With INFITECH, you can always have reliable consultative approaches whenever you need.

2. Q: Can you put my brand name (logo) on these products?
A: Yes. We have experience and capabilities to professionally tailor to your individual needs.

3: What certificates do you have?
A: We've got CE certificate for our spray booth product.

4. Q: What is your product quality?
A: We carry out strict quality control, from supplier selection, incoming inspection, in-process inspection to final inspection before ex-work.

We carefully examine every aspect of every order from design and layout, production, packing to delivery.

5. Q: What is your warranty?
A: Our warranty is 24 months after commissioning. We attend to every request/query from the user during the installation, commissioning, operation and maintenance processes. Warranty is for main components. Consumables are not included in warranty.

6. Q: What is the delivery time?
A: For standard products, the production lead time is 25 days after receiving the advance payment.

For customized products, we will need to check according to the specific condition.

7. Q: How to install and maintain the spray booths?

A: Our spray booths are designed for easy installation and maintenance. We will provide you with detailed installation manual/operation manual/maintenance manual.

Installation/commissioning guidance is also available.

8. Q: What about the availability of the electric components and consumables?

A: We use international standard electric components and consumables. Meanwhile, we keep stock of spare parts and make sure they are available whenever you need.

Dedicated, expert, always available, and fast response, INFITECH has made customer service a priority since the very beginning. INFITECH's service does not end after the equipment is sold and shipped. Instead, INFITECH attends to every request/query from the user during the installation, commissioning, operation and maintenance processes.

-        Pre-sales & Sales Service

1.     Carefully study clients' demands, design & offer products that best suit clients' needs.

2.     Offer favorable price, but not at the cost of reducing product performance.

3.     Use quality materials of well-known brands to ensure reliability.

4.     Inspect product quality before packing and shipping.

5.     Seaworthy packing for the goods.

-        After-sales Service

1.     Delivery commitment

a.     Comply with the delivery schedule required by clients. If fail to commit, shall inform clients at least 1 week in advance.

2.     After-sales Service Commitment

a.    Supply installation manual, electric schematic, and operation & maintenance manual to help users install, operate and maintain equipment properly.

b.     2-year warranty for main components. Consumables are not within the scope of warranty. INFITECH freely replaces damaged parts caused by quality issues within warranty. Beyond warranty, INFITECH provides spare parts at cost. If the equipment is damaged due to human factors, INFITECH repairs or provides spare parts at cost. Technical support will be provided within 24 hours after receiving the report of the problems.

Welcome to contact us for business!
