Infitech Automatic Retractable Spray Booth
| Price: |
US $ 4000-15000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
INFITECH automatic retractable spray booth
Advantages of retractable spray booths:Retractable painting booth is a special booth device which can be spread as enclosed or semi-enclosed working room when painting, while it can also be retracted to save footprint when not painting.
For large and heavy work-piece that is difficult to be conveyed, retractable spray booth is a good choice to solve this problem. It can greatly simplify the production process of using cranes to convey large and heavy work-pieces back and forth. Its dimensions can be adjusted according to the work-piece sizes, which helps fully utilize the production site and operation areas.Specifications:| DESIGN STANDARD | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |
| BOOTH DIMENSIONS | |
| Internal dimensions | 12000 X 5000 X 5000mm (L X W X H) |
| External dimensions | 13000 X 5500 X 5500mm (L X W X H) |
| CABIN STRUCTURE | |
| Cabin | Retractable gantry structure, each gantry structure has two pieces of mecanum wheels.
Fireproof PVC soft curtain on two sides, rear side and ceiling of cabin With air extraction box at the rear.
Special guide rails on both sides for the retractable steel structure to move, both sides are driven together and they are interlocked, with safety limit control at the front and the back. |
| ENTRANCE DOOR | Open-fronted
Optional: entrance door with G3 grade fiberglass filter cotton |
| FILTRATION SYSTEM | |
| Exhaust filter | Pleated andreae filter +Fiberglass paint arrestor filter |
| LIGHTING SYSTEM | Optional |
| INTAKE SYSTEM | No, nature air intake |
| EXHAUST SYSTEM | |
| Exhaust fan | Direct-type turbine fan |
| Power & motor description | 7.5KW, 970rpm, 380V, 50Hz |
| Exhaust fan parameters | 600pa, 28,000m³/h |
| Empty loaded air speed | 0.3m/s |
| NOISE | <86 dB |
| DUCTWORK | With 5 pieces of straight ducting |
| CONTROL SYSTEM | Standard Y/Δ step-down start control system |
| Functions | Fan switch, lighting, emergency stop switch, failure indication |
| SPECIAL ITEM | |

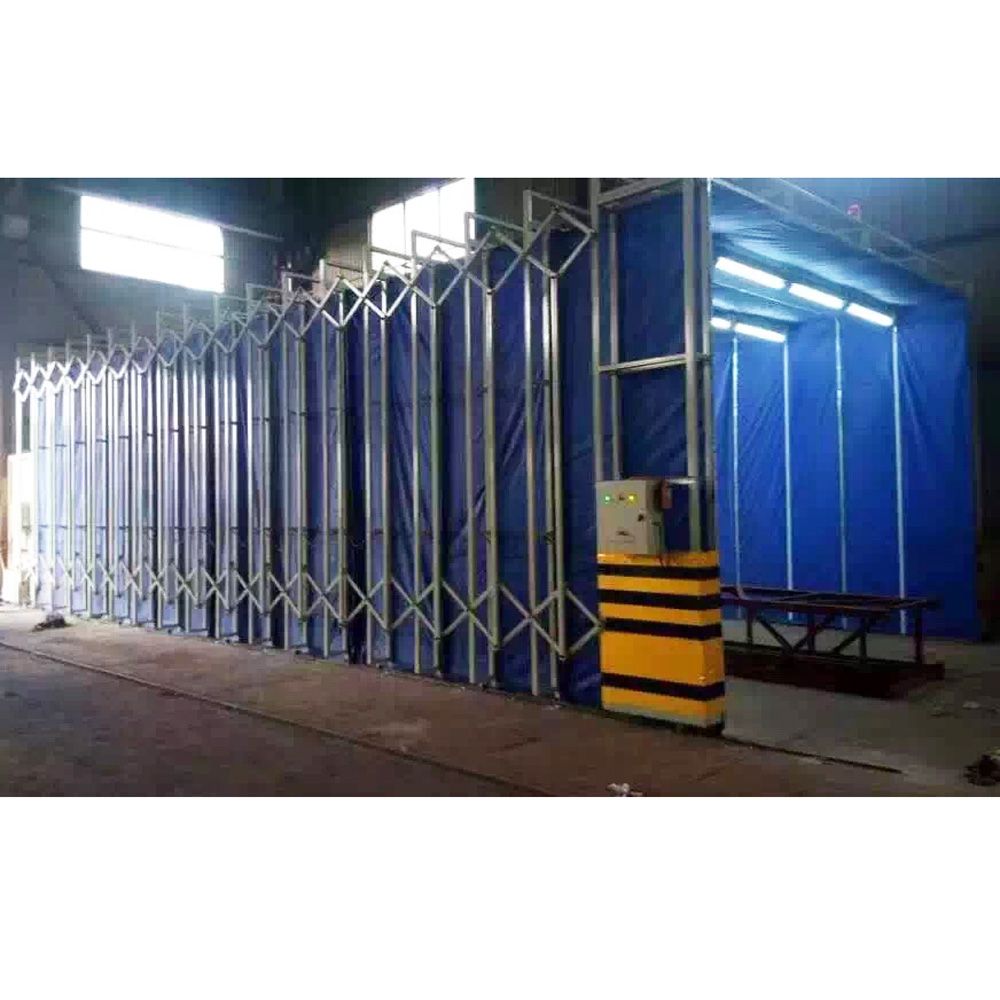

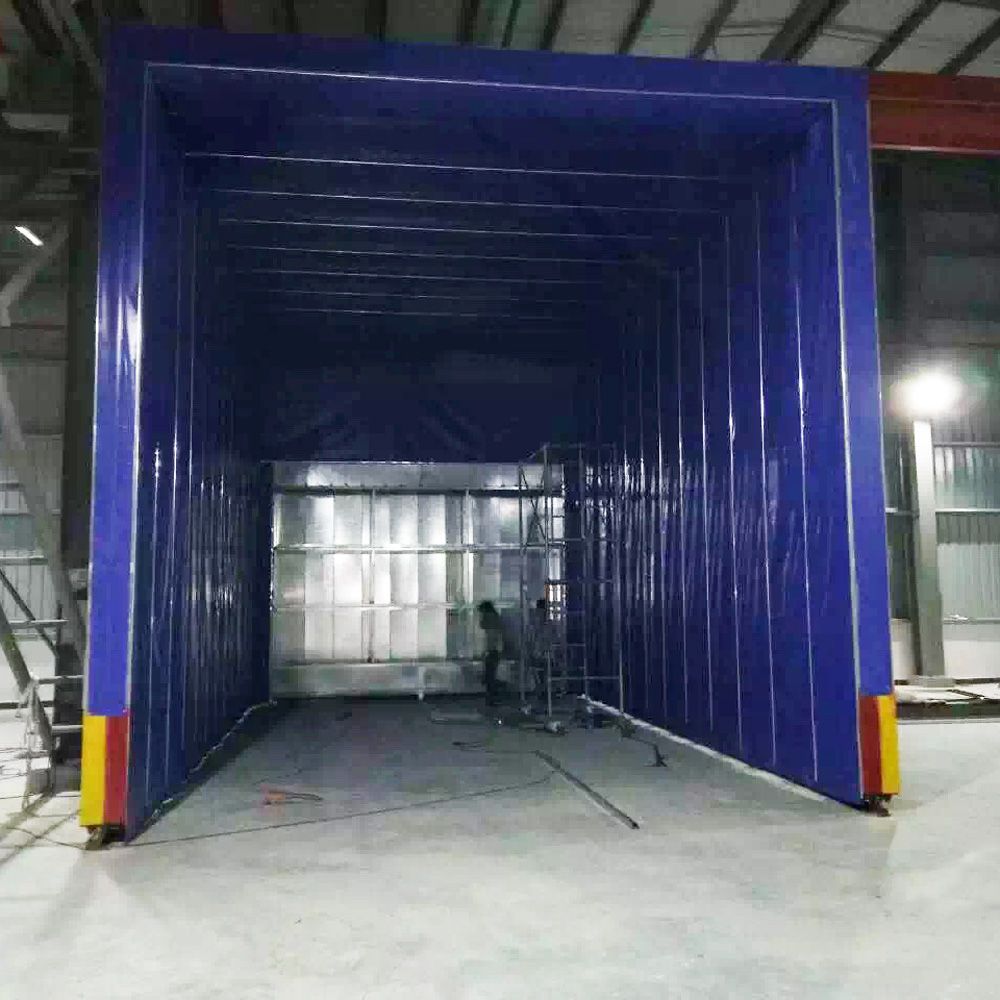

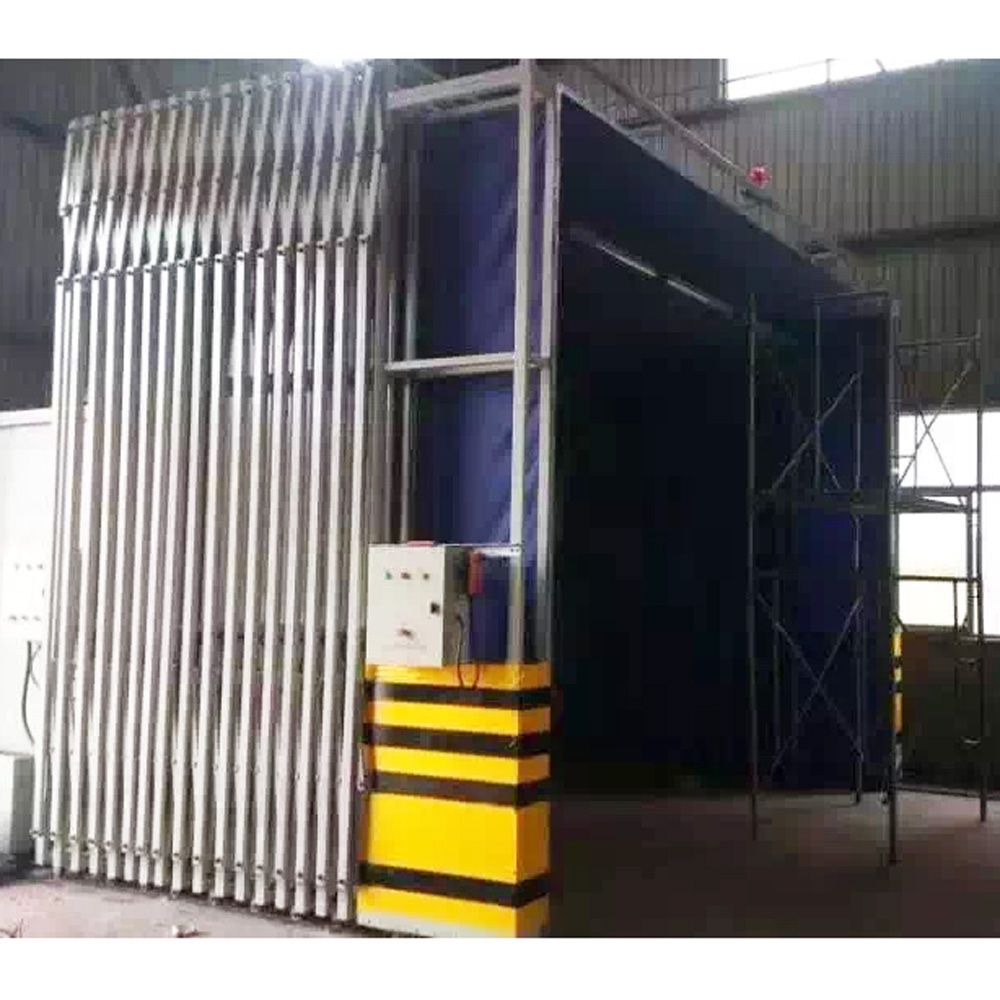

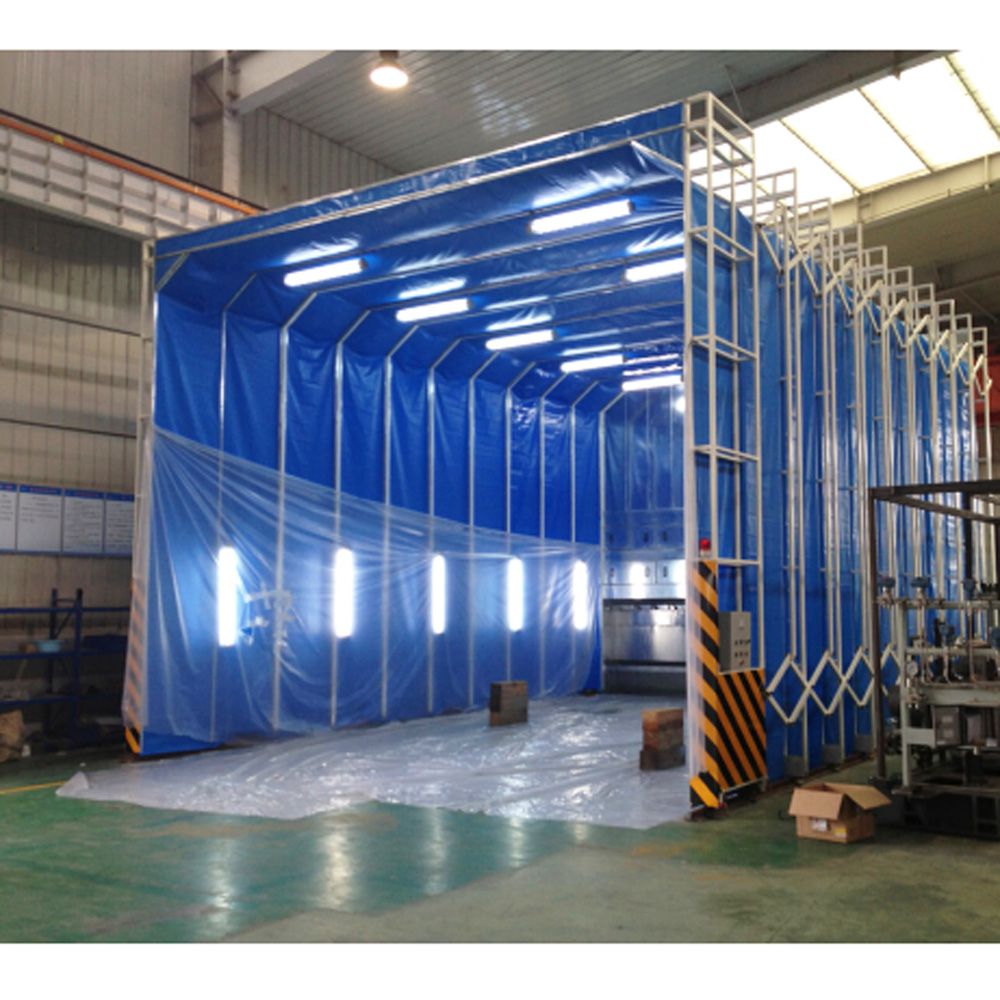

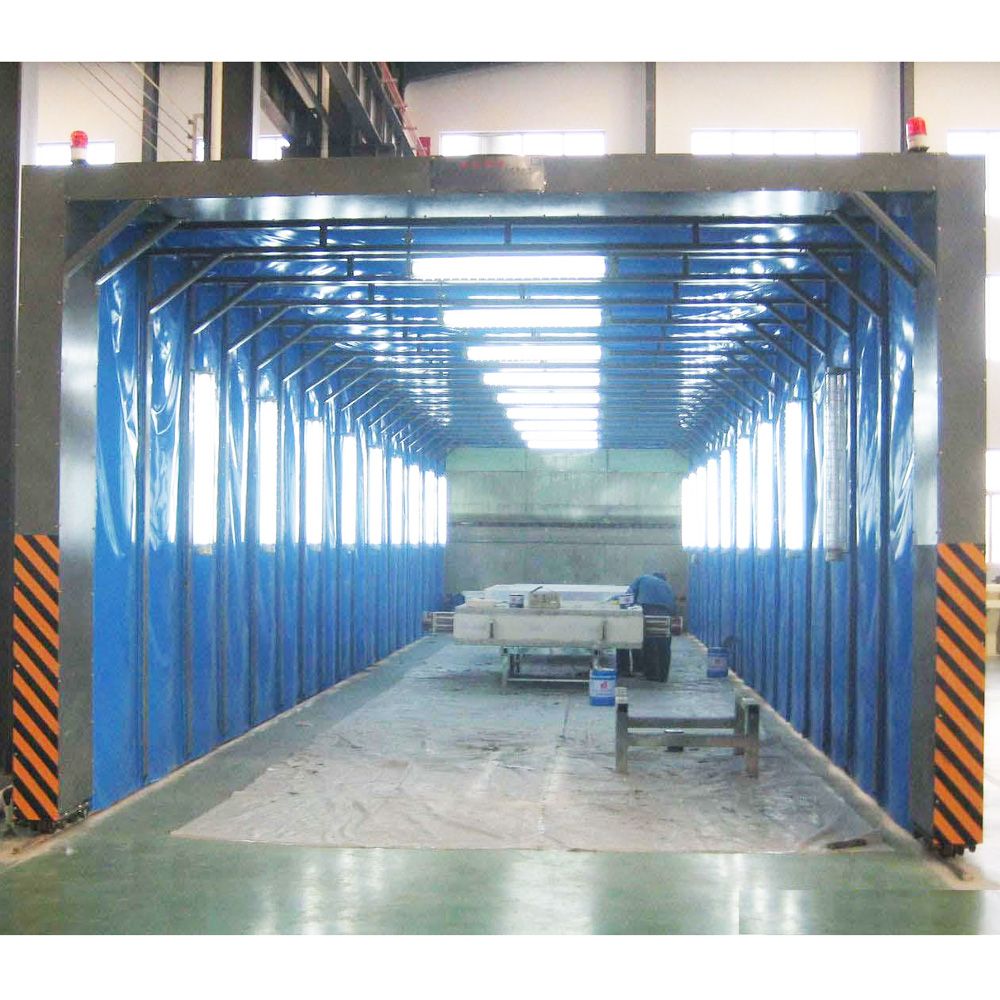

ENGINEERING CASE

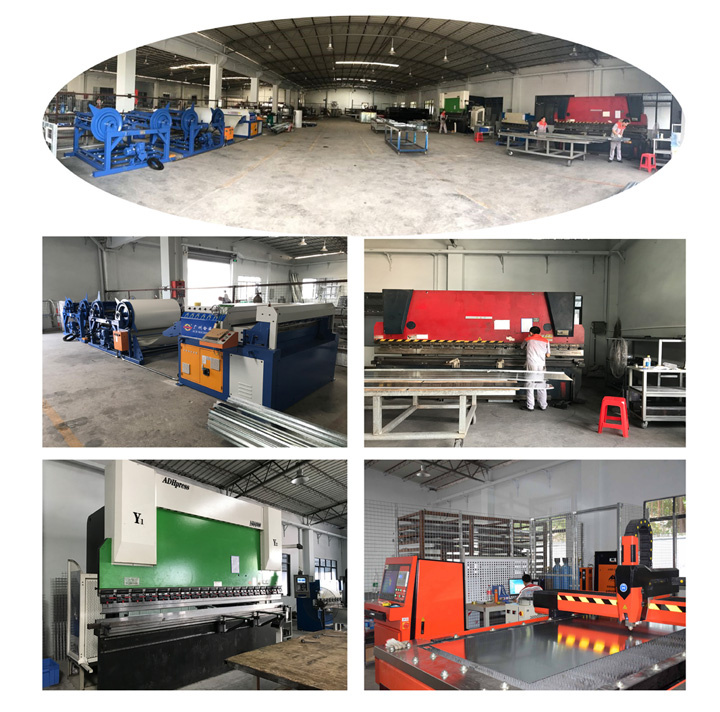

MANUFACTURING FACILITIES
EXHIBITION
WHY CHOOSE INFITECH?
1. Professional manufacturer of spray booths
2. More than 10 years experience in the coating industry
3. Professional technicians to design and offer optimal coating solution
4. Advanced manufacturing equipment and exquisite workmanship
5. Superior quality products at competitive price
6. Considerate service: 2-year warranty; attend to every request from every client
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are professional manufacturer of spray booths, mixing rooms, prep stations, powder coating booths and sandblasting booths etc.
2. Q: Where is your company?
A: Our manufacturing base and office are located in Guangzhou, 15 minutes' drive from Guangzhou Baiyun International Airport.
3. Q: Can we customize our product?
A: Yes, of course. We pride ourselves in designing, manufacturing and installing customized spray booth projects at competitive price.
4. Q: What's the MOQ?
A: One set.
5. Q: What is the delivery time?
A: For standard products, the production lead time is 30 days after receiving the advance payment.
For non-standard products, we will need to check according to the specific condition.
6. Q: What is the payment terms?
A: T/T and L/C are acceptable for us.
| Prod Model: |
Customized |
| Total Fan Capacity: |
28000 M3/H |
| Empty Loaded Air Speed: |
+/-0.3m/S |
| Noise: |
<86dB |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
PVC |
