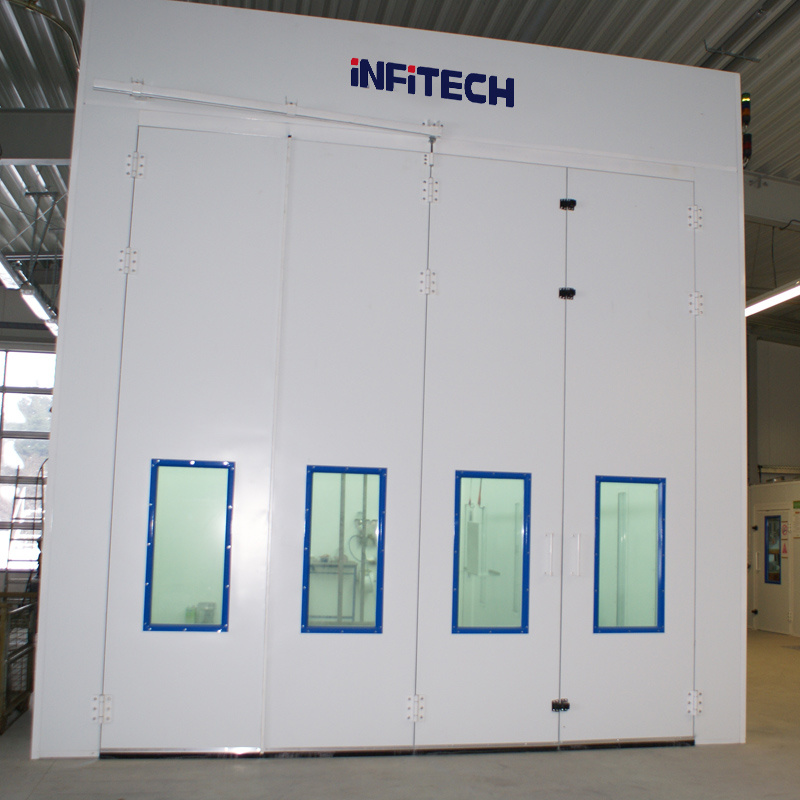

Industry Paint Booth with Hot Water Heating

Industry Paint Booth with Hot Water Heating
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: Non-standard customization
Hot Water Heating: 200kw
Gas Heating Exchange Capacity: 232kw
Total Fan Capacity: 35000m3/H
Brightness: >1200 Lux
Empty Loaded: +/- 0.20m
Service Time: Lifelong Maintenance
Motor Brand: Siemens
Air Exhaust: Optional
Voltage: 380V/400V/415V, Your Special Voltages Are Accepted
Warranty Time: 2 Year
Certification: CE
Airflow Direction: Fully Undershot-type
Paint Mist Treatment: Dry-type
Condition: New
Heating Mode: Hot Water Heating

Product Description

Industry Paint Booth With Steam Heating
Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter:

ModelCustomized
Booth Dimensions
-Internal Size(L×B×H)10000×5000×5000mm
-External Size(L×B×H)11800×5150×5860mm
Foundation and Floor
-Loading Capacity
Of Galvanized Grating
900KG/ wheel
- Surface Area12M²(1 row galvanized grid)
- Metal Basement1200mm Height(need to dig foundation )
- Drive-in RampsNO
Wall and Door
- Wall PanelDouble Construction with Insulations rock wool 75mm
- Roof PanelDouble Construction with Insulations rock wool 50mm
Rolling shutter door4300×4800 mm (B×H)
Lighting
- Ceiling Lightings14Units, each 4×36 W,  Total 2016W
- Side Lightings16 Units, each 2×36 W, Total 1152W
- Brightness>1000 Lux, IP54 Grade
Filtration
- PrefiltersFibreglass, Paint-Stop-Filters
Plate type duel filters
- Ceiling FiltersEU5 Fine Filters, 6 Units
- Floor FiltersFibreglass, Paint-Stop-Filters
Ventilation System
-Direct Drive Motor (Fresh Air)11KW,970RPM,380V, 50HZ         Siemens
-Direct Drive Motor (Exhaust Air)11KW,970RPM,380V,50HZ          Siemens
- Fan Capacity35.000m³/h
- Air Flow Speed+/- 0.20 m/s in an empty booth
Hot Water  Heating System
- Hot Water Heating Exchanger200KW
 Gas Heating System
- Heating Exchanger232KW(260.000Kcal/H)
-Burner ModelRIELLO RS5 diesel burner
-Max.Drying Temperature80 °C
- Heating time5-10 min (from 20 to 60°С) by Drying Phase
-Heating Type (optional)Direct  Burner
Control Board
-Control systemStandard control delta depressurization start system, EN60204-1-2006
-FunctionPainting, baking, warm painting, emergency stop switch
-PLCYes
-Inverter controlOptional
-Import elementMaster device import element
-Overpressure ManometerYes
- Alarm equipmentYes

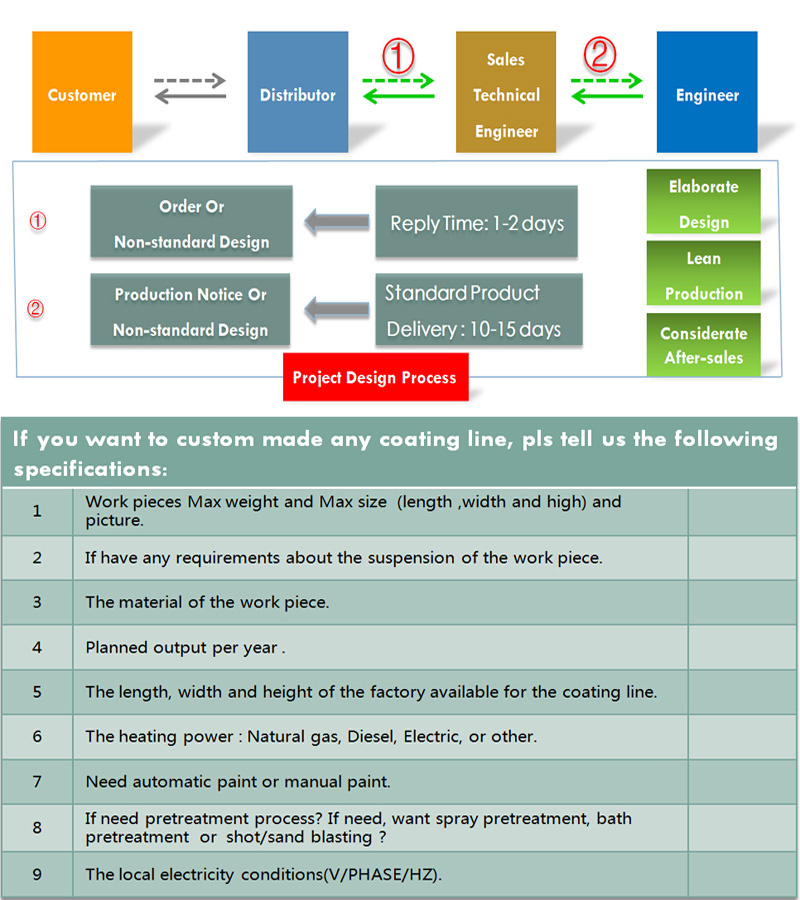

Project Design Process

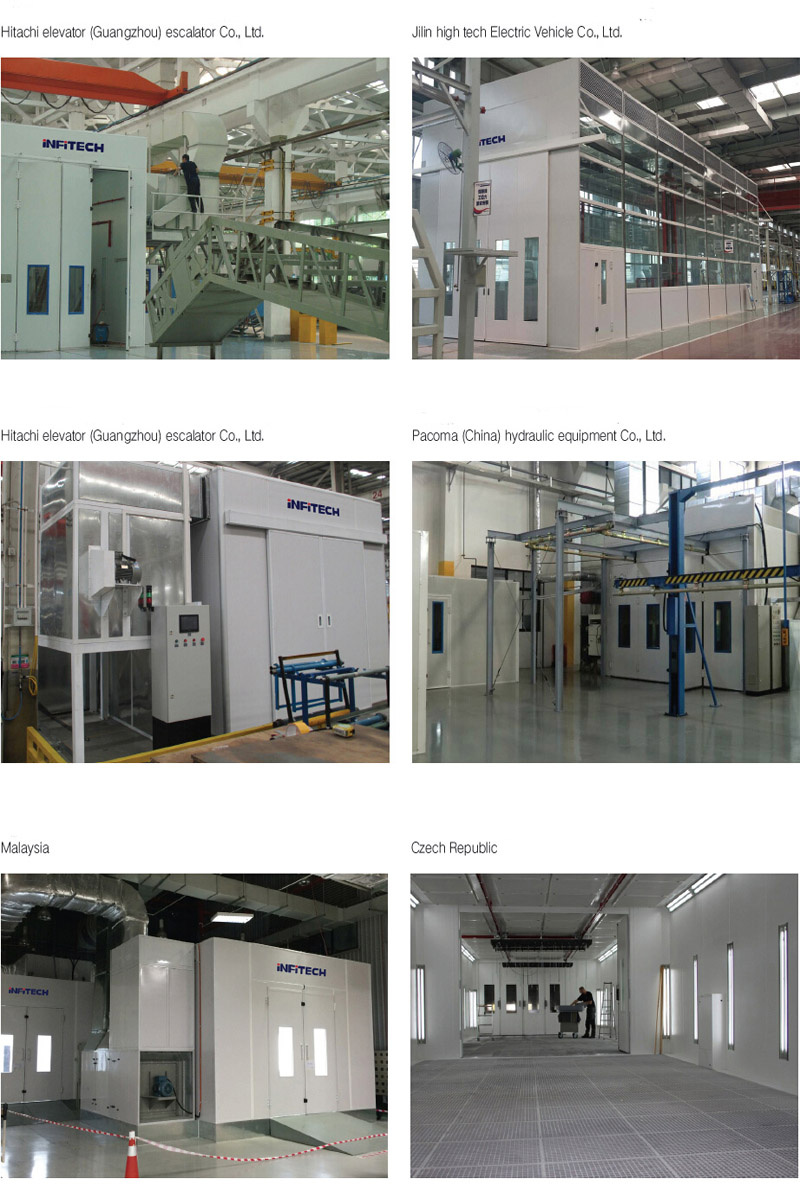

Successful stories

Company Information



If you wish to discuss any aspect of your project
...Please feel free to contact us..
Thank you for your viewing !




Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.

Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
