Detailed Product Description
Car Care Down Draft Spray Booth, Auto repair painting and baking Room (OEM)
Automobile, Vehicle, Furniture Painting Down Draft Spray Booth, Room With 3 -Fold Door
Ventilation System Vertical Down Draft Spray Booth, Station for Auto Painting
Auto Care Painting, Baking, Polish Down Draft Spray Booth with Italian Riello burner G20
Stainless steel heat exchanger Auto Spray Booths for car repair, painting, baking
Automobile Maintenance Baking, Drying, Auto Spray Booths And Repair Painting Room

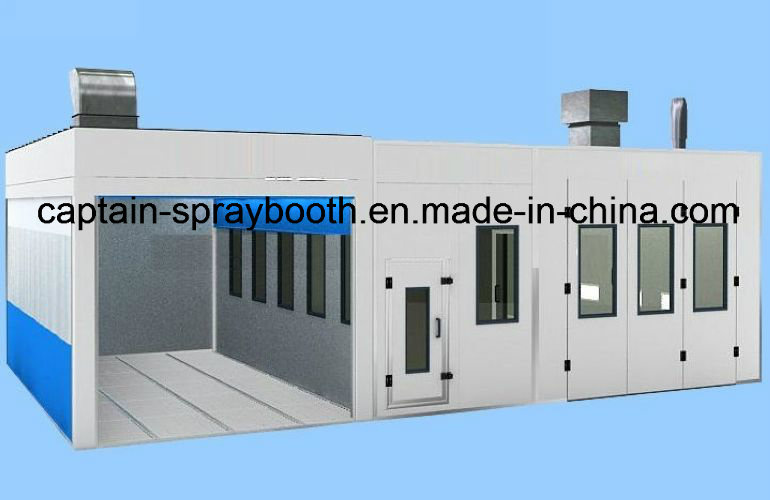

1. Spray booth 1 set
2. Preparation station 1set
3. Mixing room Specification for CM-MI-A 1 Set
1. White, orange. Blue
2. For automobile
3. Complete steel assemble Basement and floor
Car painting, Automobile Baking, Portable Auto Spray Booths
1. Italian Riello RG5S diesel burner
2. SUS304 Stainless steel heat exchanger
3. Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: White, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales service
Packaging & Delivery
Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit
| Inside Dimension | 6900X4000X2600MM(LXWXH) |
| Outside Dimension | 7000X5600X3250MM(LXWXH) |
| Main door | 3-folds, 2700×2500mm(W×H), with heat insulation glass window, handmade door without aluminum alloy door frame |
| Personal door | 1fold, 650×1800mm(W×H), with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limit |
| Booth System | Wall panel: EPS(epispastics polystyrene) heat preservation panel, thickness: 50mm, steel thickness 0.5mm, width: 950mm; roof panel: galvanized plate |
| Basement and floor: Complete steel assemble. 5rows of grids. |
| Lighting System | Ceiling light: 4Pcs X8units=32PcsX36W,
Lower light: 2Pcs X8units=16PCsX30W Philip tube, horizontal installation, with electronic ballasts, lighting box made of cold roll steel plate, white powder coating |
| Glass | All windows and light cover by ovenproof toughened glass |
| Generator setting type | Intake air from side upper and exhaust air from back upper, framed with aluminum alloy, white coated steel plate |
| Ventilation System | Intake fan: 2X4Kw double-intake centrifugal fans, model:YDW4.5L, air capacity is 25000m3 /h. |
| Exhaust fan: 1Pc 5.5Kw double-intake fans exhaust air cabinet , model:YDW4.5S, air capacity is15000 m3/h |
| Heating system | Italian Riello G20 diesel burner,200000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional |
SUS304 Stainless steel heat exchanger, anti-explosion hole for protection, highest temperature 80C, 1pc electric damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 87.1% heat exchanging rate |
| Filter system | Prefilter, high efficiency filter(ceiling filter), floor filter, exhaust active carbon filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, time accumulator, pressure gauge, emergency stop, failure
alarm, limited-temperature device |
| Total power | 16KW |
| Booth Dimension |
| - Internal Size(L×W×H) | 6300×3450×2600mm |
| - External Size(L×W×H) | 7550×3550×3100 mm |
| - Plenum Size(L×W×H) | 6300×3450×300mm
Galvanized steel plate made of plenum |
| Foundation and Floor |
| - Metal Basement | Complete full grilles of basement which made by flat bar and twisted steel, galvanized;
300mm high galvanized steel basement, quadrate steel support, 2pcs of ramps. |
| | Wall and Door | |
| | - Room body | One side is polystyrene (EPS) insulation wall panel, tongue and groove structure. 50mm thickness, width, 950mm. colour: white.
Three sides are coated cover plate and PVC curtain, color: white in upper side, blue in bottom side, transparent in the middle. | |
| | Lighting System | |
| | - Ceiling Lights | 8Units, each 4×36 W, with electronic ballasts.Total 1152W | |
| | - Brightness | >800LUX | |
| | Filter System | |
| | - Filter | Pre-filter, high efficiency filter, exhaust fiberglass filter, M shape dust collector. | |
| | - Filtering area | 14.8M2 | |
| | Ventilation System | |
| | -Generator setting | Exhaust air from rear side, galvanized steel molding frame, white EPS cover plates | |
| | - Intake air system (Fresh Air) | 1×5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity:15500 M3/h | |
| | - Damper actuates | Equip with electric damper for exhaust air. | |
| | Control Box | |
| | - Control system | Fan operation switch, lighting switch,emergency stop. | |
| | - Installed type | Steel column supporting or hook from roof | |
| | - Total power | 6.7KW | |
| | | | | |
| Booth Dimension |
| - Internal Size(L×W×H) | 2300x2330x2500mm & 7'6''X7'6''X8'2'' |
| - External Size(L×W×H) | 2400x2430x2550mm & 7'9''X8'X8'4'' |
| Wall and Door |
| - Room Body | 50mm thick polystyrene(EPS) insulation inside. width:950mm, togue and groove structure |
| - 1-Folded Entrance Door With Safety Glass Window | 1 Unit,650×1800 mm(WxH) |
| Lighting System |
| - Ceiling Lights | 2Units, each 4×36 W, with electronic ballasts.Total 288W |
| Filter System |
| - Filter | Pre-filter, exhaust fiberglass filter |
| Ventilation System |
| - Intake air system (Fresh Air) | With pre-filter on the wall to intake air |
- Exhaust air system
(Exhaust Air)
| Exhaust air from bottom of back wall panels, with exhaust fan, air capacity:2200m3/h.
Generator is with galvanized steel molding frame and white coasted steel cover |
| Control Box |
| - Control system | Power supply switch, electrical outlet, fan operation and lighting switch. |
| - Total power | 0.5 KW |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
