Specifications
Model: CP-12
Inside dimention: 12000× 4500× 4000mm(LXWXH)
Any Size Requirements Can Be Met.

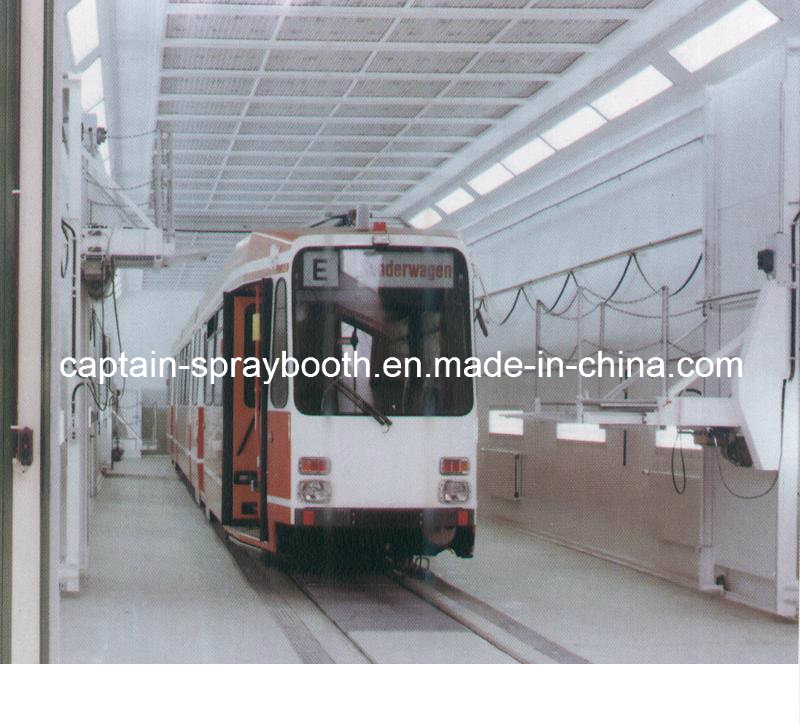

Applied for bus painting and baking
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
1. White, orange. Blue
2. For automobile
3. Complete steel assemble Basement and floor
Car painting, Automobile Baking, Portable Auto Spray Booths
1. Italian Riello RG5S diesel burner
2. SUS304 Stainless steel heat exchanger
3. Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: White, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales service
Packaging & Delivery
Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit
CPYE127501 |
Outside Size(mm): | 12150×6000×4500mm(LXWXH) |
Inside Size(mm): | 12000×4500×4000mm(LXWXH) |
Front Door(mm): | 3800×3900 mm(WxH), 4-Folded with Safety Glass Window, galvanized steel cover frame,with polystyrene(EPS) insulation inside. |
Service Door(mm): | 650×2000 mm(W×H),2 Units, With Safety Glass Window and two sets of pressure lock which will automatically open when the pressure inside is over the limit.(2 service door all at the left side) |
Total Power: | 44KW |
Cabin System | Wallboard | Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside . |
Basement | Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is10350×760mm((LxW), with galvanized grids made by twisted steel and flat bar above. |
Inlet Fan(Belt) | Capacity: 14500m³/h each | Outlet Fan(Belt) | Capacity: 18000m³/h each |
Power: 4kw | Power: 5.5kw |
Quantity: 4 sets | Quantity: 2 sets |
Purification System | G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter. |
Heating System | Italy Riello RG5S diesel burner, 260000Kcal/h, 2 sets |
Heating exchanger, stainless steel |
max temp: 80 degree centigrade, heating time:6-8 min(from 20 to 60)by Drying Phase |
Lighting System | Ceiling Light: 16 Units, each 3×36 W, with electronic ballasts; Side Light: 18 Units, each 2×36W, with electronic ballasts |
Controlling System | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller. |
Environmental System | G3 grade glass fiber floor filter, exhaust active carbon filter. |
