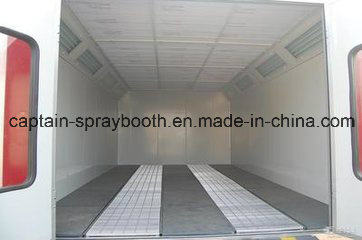

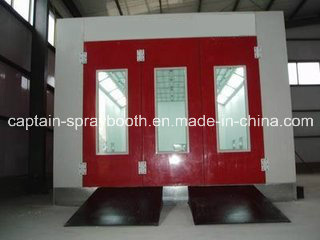

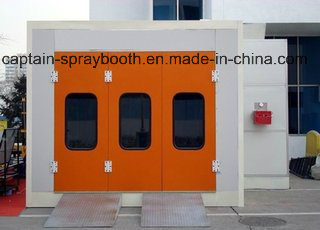

High Quality Captain Excellent Car Spray Booth
Price: |
US $ 5300-7600/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Outside Dimension (mm) | 7000 * 5400 * 3250(L*W*H) | Inside Dimension(mm) | 6900 * 3900 * 2600(L*W*H) |
Front Door(mm) | 2800*2500(W*H) | Service door (mm) | 1800*650(W*H) |
Total Power | 36 KW |
Cabin system | Wall panel | 50mm EPS panel, double face steel sheet thickness: 0.4mm |
| Ceiling panel | Galvanized steel sheet. |
| Basement | 300mm depth, patented circumferential diamond plate design, middle with grids. |
| Ramp | Two 2000*750mm ramps |
Air Make-up System | Air Inlet fan system | 2 * 3 kw double-intake centrifugal fan, air capacity for each fan: 10500m3/h. |
| Exhausted fan system | 1 * 4 kw double-intake centrifugal fan, air capacity 14500m3/h. |
| Air Flowing speed | 0.40 m/s in empty booth, 0.30 m/s when painting. |
| Exhausted ducting | 3 meters air duct, one flop damper, one weather hood, one anti-bird mesh |
Purification System | Pre-filter | G3 grade, Air Inlet filter |
| Ceiling filter | EU5 / F5 |
| Floor filter | Green fiber glass filter / G3 grade |
| Exhausted fan Filters | Fiber glass filter. |
| Heating | With 12 units high energy short wave infra-red lamps for heating. 2 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:24KW |
| Max heating temperature Heating time | 60 degree centigrade 4-6min(20-60 degree centigrade) |
Lighting System | Ceiling lights | 8 Units, each 3 x 36W Philips lamps, Total 864 W |
| Illumination | 900LUX |
Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm |
Prod Model: |
Captain -CD-01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Outside Dimension: |
7000 * 5400 * 3250(L*W*H) |
Inside Dimension: |
6900 * 3900 * 2600mm |
Front Door(mm): |
2800*2500(W*H) |
Service Door (mm): |
1800*650(W*H) |
Total Power: |
42kw |
Wall Panel: |
50mm EPS Panel, 0.4 Steel |
Basement: |
300mm Depth with Grids |
Ramp: |
Two 2000*750mm Ramps |
Heating Burner: |
2*12 Units High Energy Infra-Red Lamp |
Color: |
Optional |
Certification: |
UL |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Electric |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Brand: |
Captain |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
