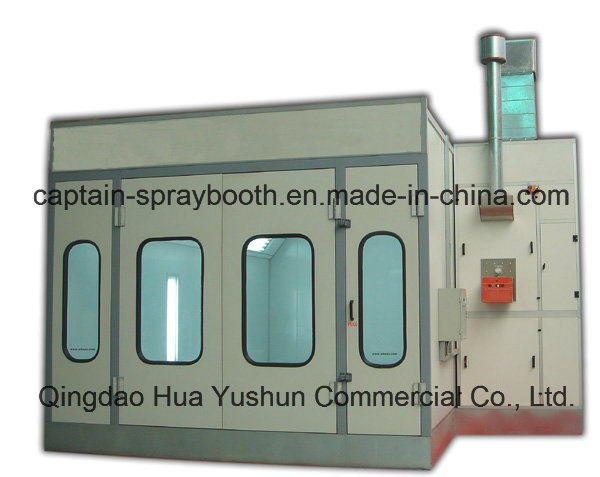

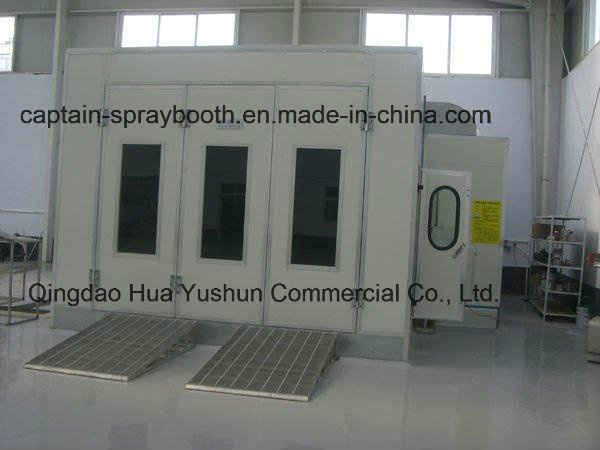

High Quality Auto Paint Booth/Painting Room
Price: |
US $ 5858/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Description
Profession Manfacturer for Car Spray Booth, the products have been exported for 10 years, high quality and cheap price, looking forward to having an opportunity to serve you.
Inside Dimension | 6900X4000X2600MM(LXWXH) |
Outside Dimension | 7000X5600X3250MM(LXWXH) |
Main door | 3-fold, 2700X2500MM(WXH) with heat insulation glass window |
Personal door | 1-fold, 650X1800MM (WXH) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limi |
Booth System | Wall panel :EPS(epispastics polystyrene) heat preservation panel doubleskinned , tongue and groove construction, thickness: 50MM EPS , roof panel: galvanize plate |
Basement and floor: Complete steel assemble, height: 300mm. 5 rows of grids, 2pcs of ramp, each size:750X2000MM(WXL) |

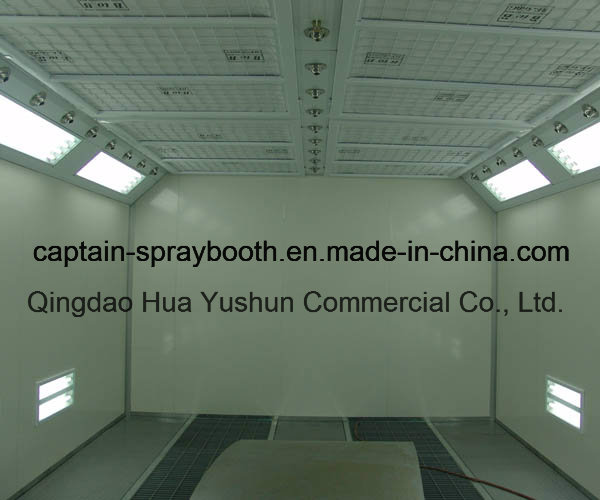

Lighting System | Ceiling light: 3Pcs X8units=24PcsX36W, Lower light: 2Pcs X8units=16PCsX30W, vertical installation. Phillip brand light tube with PAK light holder |
Generator setting type | Side upper intake air, aluminum alloy frame, coated steel |
Ventilation System | Intake fan:2X4KW double-intake centrifugal fan, , air capacity:25000m3 /h |
Exhaust fan: 1Pc 4KW double-intake centrifugal fan, air capacity:15000m3 /h |
Heating system | Italian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional |
SUS304 Stainless steel heat exchanger, highest temperature 80C, 1pc electric damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 87.1% heat exchanging rate |
Filter system | Prefilter, high efficiency filte (ceiling filter), floor filter, exhaust active carbon filter |
Control system | Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, emergency stop, failure indicator, limited-temperature device |
Total power | 15.5KW |
Prod Model: |
BP1003 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Inside Dimension: |
6900X4000X2600mm(Lxwxh) |
Outside Dimension: |
7000X5600X3250mm(Lxwxh) |
Main Door: |
3-Fold, 2700X2500mm(Wxh) |
Personal Door: |
1-Fold, 650X1800mm (Wxh) |
Wall Panel: |
50mm EPS |
Basement And Floor: |
750X2000mm(Wxl) |
Lighting System: |
24 Units Ceiling, 16 Units Sides |
Intake Fan: |
2X4kw |
Exhaust Fan: |
1PC 4kw |
Total Power: |
15.5kw |
Certification: |
CE |
Airflow Direction: |
Cross-flow Type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Wet-type |
Condition: |
New |
Brand: |
Captain |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
