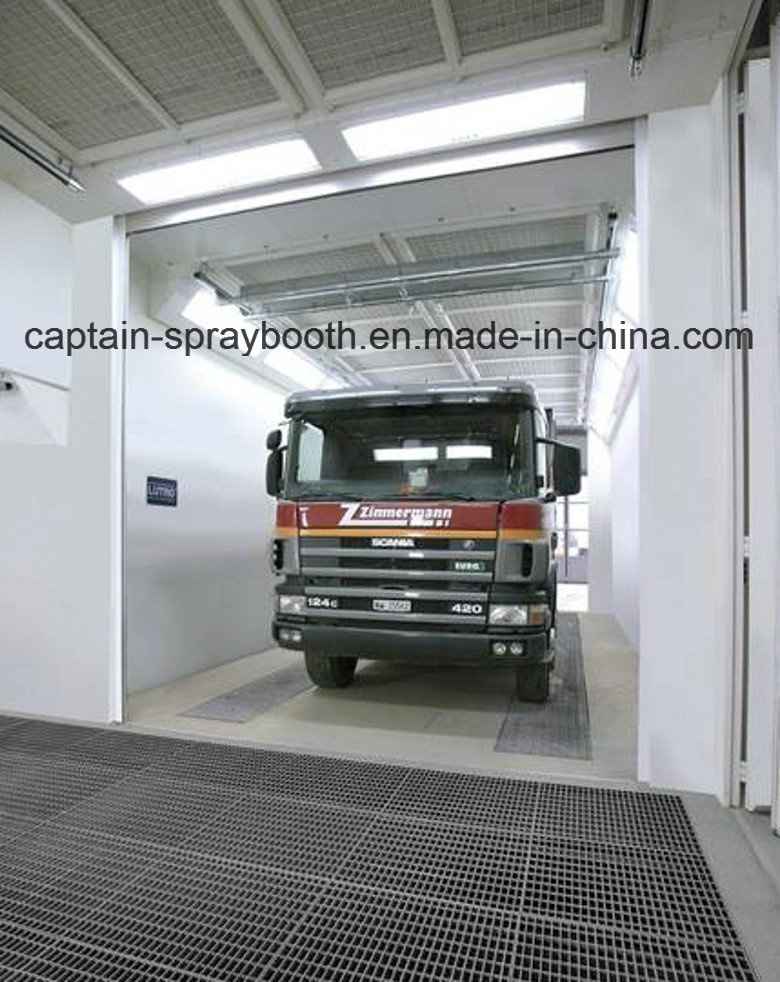

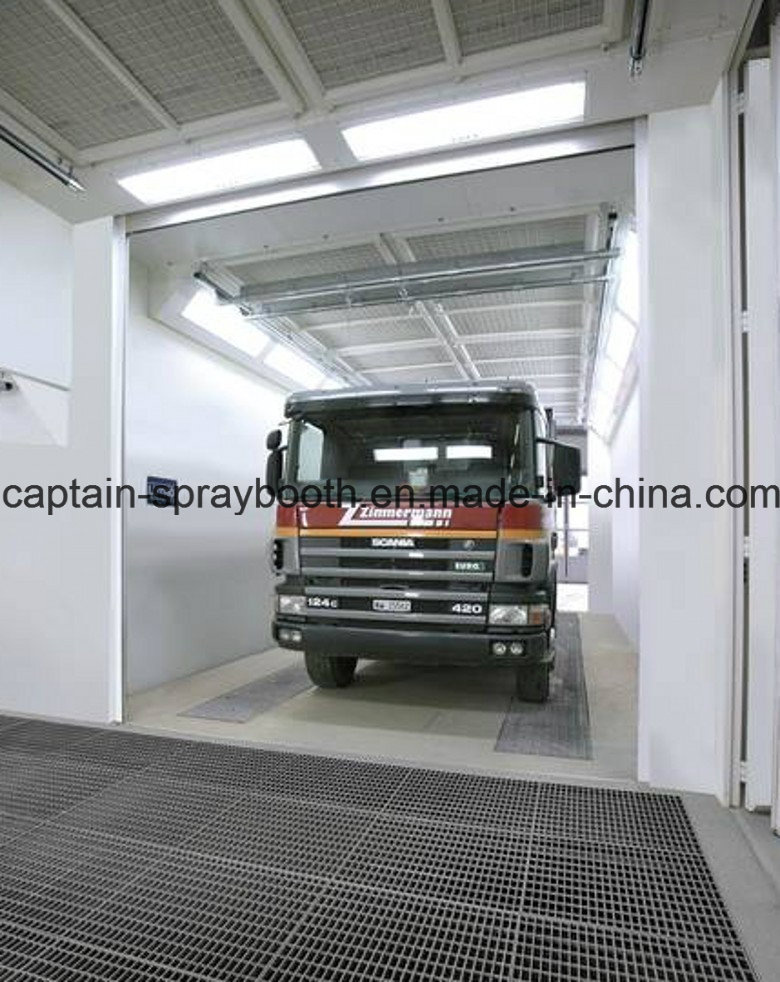

Excellent and High Quality 23m Industrial Spray Booths
| Price: |
US $ 40000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Booth Dimension |
| - Internal Size(L×B×H) | 23000×5000×5000mm & 75'4''X16'4''X16'4'' |
| - External Size(L×B×H) | 23144×6896×5600mm & 75'9''X22'6''X18'4'' |
| Foundation and Floor |
| - Grid | 2 rows air exhust plenum chamber |
| - Metal Basement | Need to build the base construction , 2 rows of pits in the ground for exhaust air,
dimension of each pit is 20700×760mm(L×W),
with galvanized grids made by twisted steel and flat bar above |
| Wall and Door |
| - Steel Wall | Profiled bar beams in the roof to strengthen the room body Double construction with insulations EPS , thickness 75mm, width:950mm, tongue and groove interlock structure . |
- 4-Folded Entrance Door
With Safety Glass Window | 1 Unit, 4000×4500mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside |
- Operator's Door With
Safety Glass Window | 2Units, 650×2000 mm(W×H) ( 2 service door all at the left side ) |
| Lighting System |
| - Ceiling Lights | 26Units, each 4×36 W, with electronic ballasts |
| - Side Lights | 32Units, each 2×30W, with electronic ballasts |
| Filter System |
| - Filter | Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter |
| - Filtering area | 96M2 |
| Ventilation System |
- Intake air system
(Fresh Air) | 6×7.5KW double-intake centrifugal fans for intake air, model YDW4.5M,
total air capacity: 126000m3/h |
- Exhaust
air system(Exhaust Air) | 3×11KW double-intake centrifugal fans for exhaust air, with motor outside,
belt-drive, model TAE-710H, total air capacity: 108000m3/h |
| - Damper actuates | Pneumatic damper actuates from spraying to baking cycle,
manual dampers for exhaust air |
| Heating System |
| - Heating Exchange | Stainless Steel |
- Heating
Exchange Capacity | 260000Kcal/h |
- Max. Drying
Temperature | 80 °C |
| - Heating time | 8-15 min (from 20 to 60) by Drying Phase |
| - Heating Type (optional) | RIELLO RG5S (260000 kcal/h)Diesel )3set |
| Control Box |
| - Control system | Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator,
thermostat, power supply switch, emergency stop, ampere meter, voltmeter,
hours meter, temperature limit controller, pressure gauge.
exhaust reduction voltage motor start |
| - Total power | 98KW |
| Prod Model: |
CPYRW237501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size: |
23000*5000*5000mm & 75'4''*16'4''*16'4'' |
| External Size: |
23144*6896*5600mm & 75'9''*22'6''*18'4'' |
| Wall Board: |
75mm EPS Panel, |
| Main Door: |
1 Unit,4000*4500mm, |
| Operator's Door: |
2 Units,650*2000mm |
| Lighting System: |
Ceiling:26uints*4; Side:32units*2 |
| Heating System: |
Italy Riello Rg5s |
| Intake Fan: |
6*7.5kw |
| Exhaust Fan: |
3*11kw |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Used Oil |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
