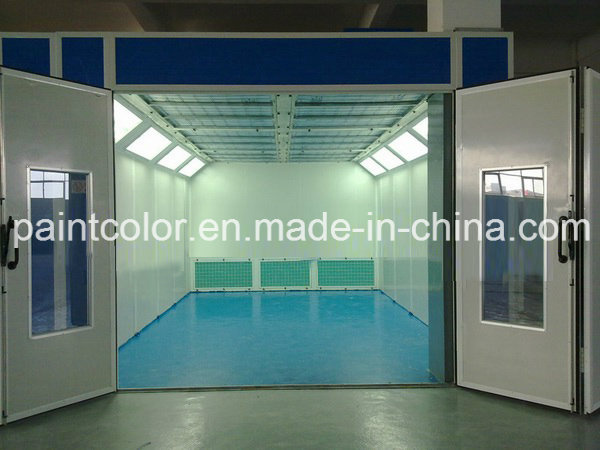

Dry Type Furniture Used Paint Booth
| Price: |
US $ 4000-5000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
PC-CMB (5-3-2.75m) |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White, Blue, Red or Orange |
| Voltage Requires: |
380V/3p, 220V/3p Or220V/1p |
| Intake Fan Air Volume: |
12500m3/H |
| Inside Unloaded Air Speed: |
0.23m/S |
| Luminance: |
More Than 800lux |
| Noise: |
Less Than 80dB |
| Tsp (Mg/ M3): |
Less Than 1.4 |
| Heating System: |
Diesel or Infrared Lamp |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Painting Booth |
| Brand: |
Paintcolor |
Product Description
Paintcolor customized funiture paint booth 5-3-2.75mAny booth size request can be met!!!Paintcolor company quantifies the production of standard spray booth; at the same time, "one-to-one" service is our important and special sale method and service. For different countries and the special requirements of different customers, we make the design and produce the booth based on the size of the site, the workpiece, the type of paint and the budget level. It really 100% stands on your point to solve all the problems. Paintcolor is the one specialty spray booth manufacturer you can not miss.
| Specification in detail |
| Body structure | Outside dimension: 5106*4556*3500mm (L*W*H) |
| Inside dimension: 5000*3000*2750mm (L*W*H) |
| Air flow: exhaust from back wall |
| Main door: 2-fold( 2 leaf), 2400*2600mm (W*H);1pcs; |
| Working door: 650*1800mm (W*H), 1pcs; |
| Wall Panels: thickness is 50 mm, and insulation is flame-resistant and heat-preserving EPS panel 0.426mm double skinned sheet;galvanized sheet roof plate; |
| Generator: back upper intake air, back upper extract air, quadrate steel frame, powder coating steel; |
| Lighting system | Lighting: Ceiling Lights: 6Groups*4Pcs=24Pcs *36W;Philips lamps |
| Glass: all glass is toughened glass; |
| Air ventilation system | Air ventilation system: |
| Intake fan: 1set centrifugal fan, 4KW motor, air capacity: 12500m3/h |
| Exhaust fan: 1set centrifugal fan, 3KW motor, air capacity: 10700m3/h |
| Air exhaust pipe: 4m from the cabin and 1 elbow; |
| Filtering system | Filtering system: Pre-filter, high efficiency filter (ceiling filter), exhaust filter; |
| Electric control system | Control box: Schneider electric components; spraying, time setting, lighting switch, hour meter, emergency stop, failure indicator; |
| For optional Heating system | Heating system: Infra-red heating system, 1pcs lamp with 1kw heating, 3pcs lamps in a group, 8groups, totally 24KW; (NOTE: the total power required is 31KW) |
| For optional Heating system | Heating system: Stainless steel SUS304 heat exchanger; RIELLO G10 diesel burner (one stage), max heating capacity is 100000Kcal/h, electric damper from spraying to baking cycle automatically; (NOTE: the total power required is 9KW) |
