| Item | Detailed specification |
| Inside dimension |
6900×4000×2800 mm(L×W×H) |
| Outside dimension |
7000×5500×3500 mm(L×W×H) |
| Front door |
Folding door, 4 folds, 2800×2600 mm(W×H), without frame cover. |
| Emergency door |
1 unit, 650×2000mm(W×H). |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support,
3 rows grilles made by flat bar and twisted steel, galvanized,
3 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. |
| Wall panel |
Thickness: 50 mm, width:950 mm, tongue and groove structure, 0.5mm color steel with antiflaming EPS inside. |
| Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥900Lux. |

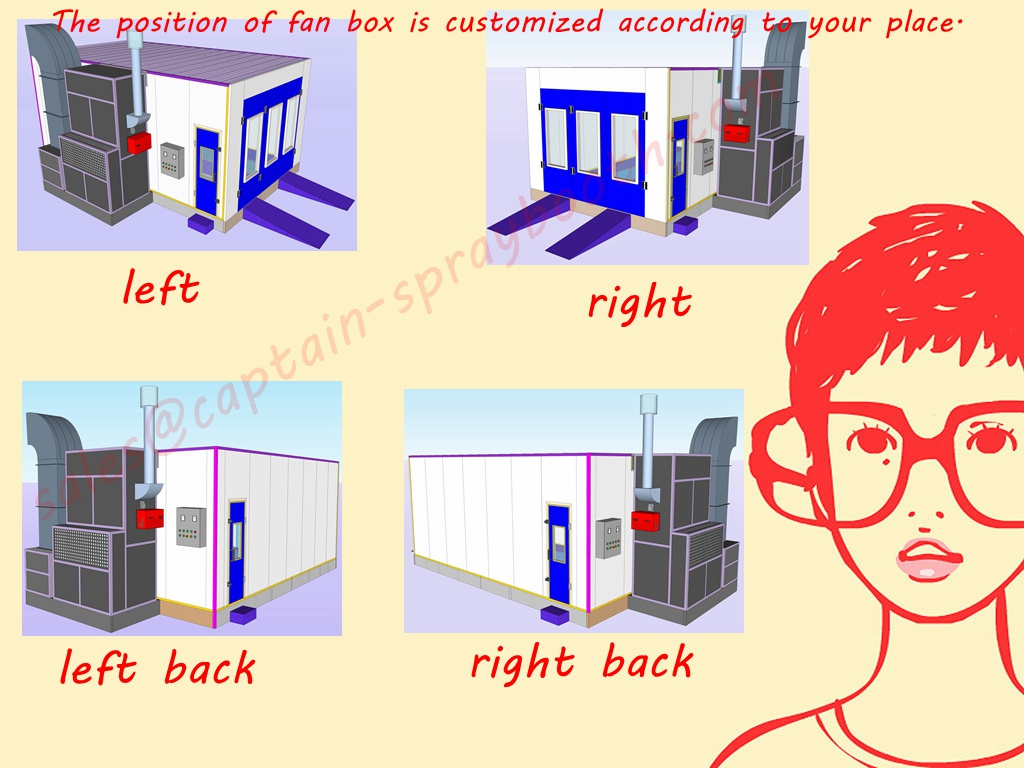

| Generator cabinet |
Intake from back upper, exhaust from back upper, white coated steel outside covered,
galvanized steel inside, filled with heat preservation material inside. |
| Intake and Exhaust system |
Inlet: 2×4 KW Double-intake belt centrifugal fan, air capacity: 29000m3/h. |
Outlet:1×5.5KW Double-intake belt centrifugal fan, air capacity: 20000m3/h. |
| Heating system |

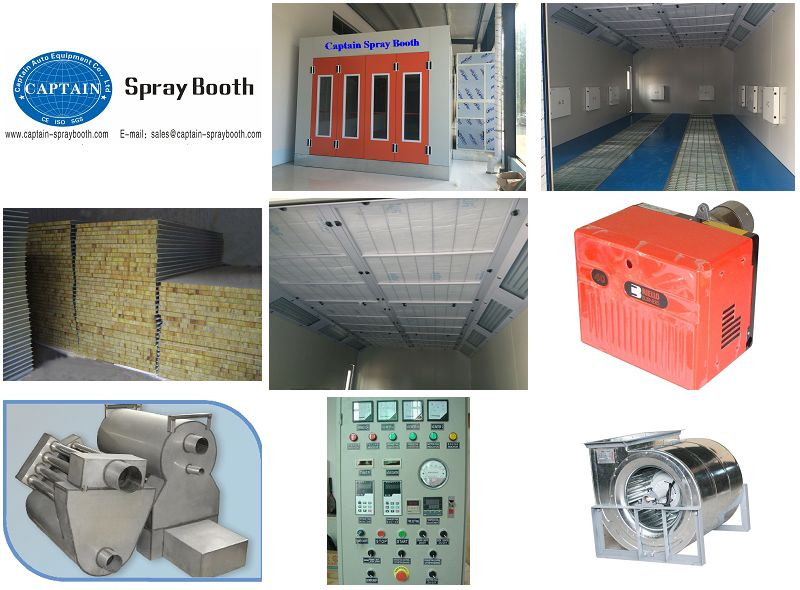

RIELLO G20 diesel burner, stainless steel heat exchanger, Max. heating productivity: 200000Kcal/h. |
| Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. |
| Purification system |
Pre-filter, ceiling filter, fiberglass filter, activated carbon filter |
| Roof |
Powder coating filter frame. |
| Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat,
power supply switch, emergency stop, hour meter, temperature limit controller. |
| Total power | 15.0 KW |
| UNIT PRICE (FOB QINGDAO) | $ 7800 |
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Detailed Product Description

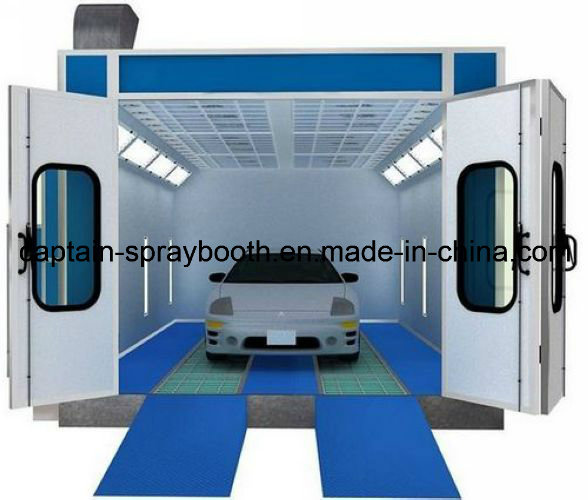

Car Maintenance Diesel Burner Water paint Drying Room, Water Spray Booth
Customized Car Painting And Baking Water Spray Booth, Waterborn Paint Drying Room
Stainless Steel Heating RIELLO Burner Car Paint Baking, Water Spray Booth, Station
Emergency Stop Car Waterborn paint and drying Room, Water Spray Booth
Auto paint drying Station, Water Spray Booth with Stainless Steel Heating Exchange
1. White, orange. Blue
2. For automobile
3. Complete steel assemble Basement and floor
Car painting, Automobile Baking, Portable Auto Spray Booths
1. Italian Riello RG5S diesel burner
2. SUS304 Stainless steel heat exchanger
3. Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: White, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales service
Packaging & Delivery
Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit
