CEA Group International Co., Ltd. >> Di Dii Diii Diazed Fuse Link

Di Dii Diii Diazed Fuse Link

Di Dii Diii Diazed Fuse Link
Price: Negotiable/Piece
Trade Terms: FOB,CFR
Min Order: 20/Piece
Pay Type: L/C,T/T

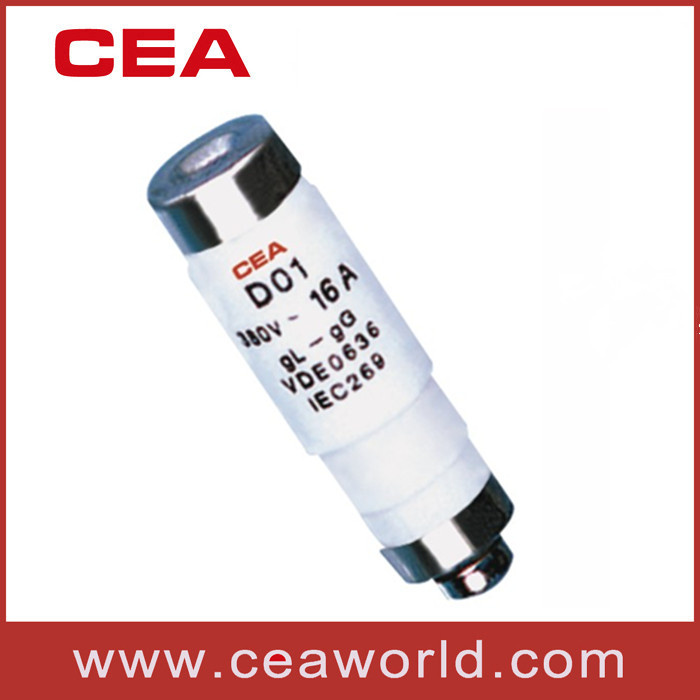

Di Dii Diii Diazed Fuse Link



Cylindrical fuse link with cylindrical contact caps is designed for protecting electrical distributing in rated current up to 125A.
Against damage due to overload and short circuit. Fuse link with striker is supplied for the purpose of protecting against motor single phaseing operation when fitted in fuse-isolators.
This product conforms with IEC 60269 and VDE0636 standards.

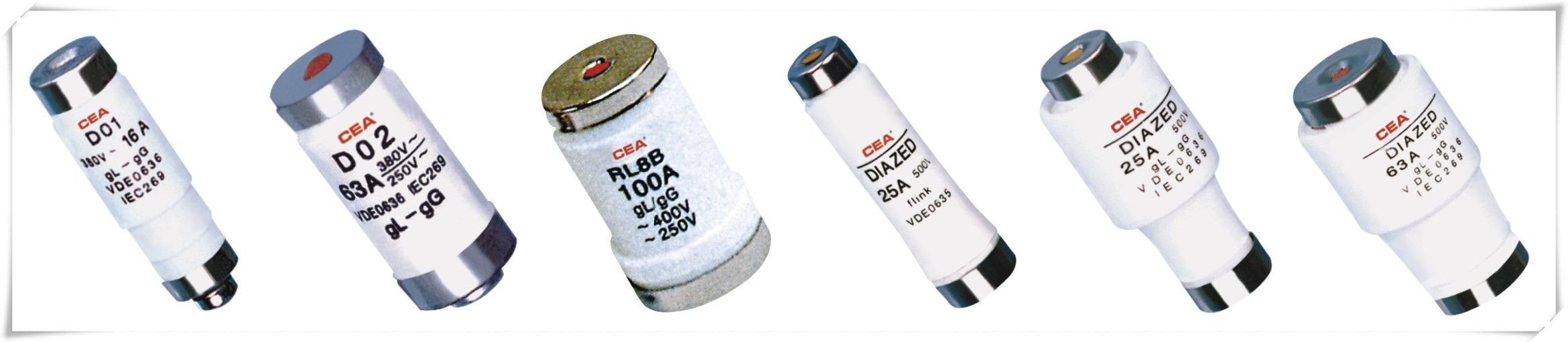

Size: Glass body and Porcelain body


TypeCap TypeRated Current(A)
DIE162 4 6 10 16 20 25
D IIE272 4 6 10 16 20 25
D IIIE3332 35 40 50 63
D01E142 4 6 10 13 16
D02E1820 25 32 35 40 50 63
D03M30X280 100

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation: Electric Type
Installation: Fixed
Speed: High-Speed Circuit Breaker
Arc-Extinguishing Medium: Air
Function: Ovp(Overvoltage Protection)
Certification: CE,CCC
Breaking Capacity: Low
Safety Standards: IEC
Type: Fuse
