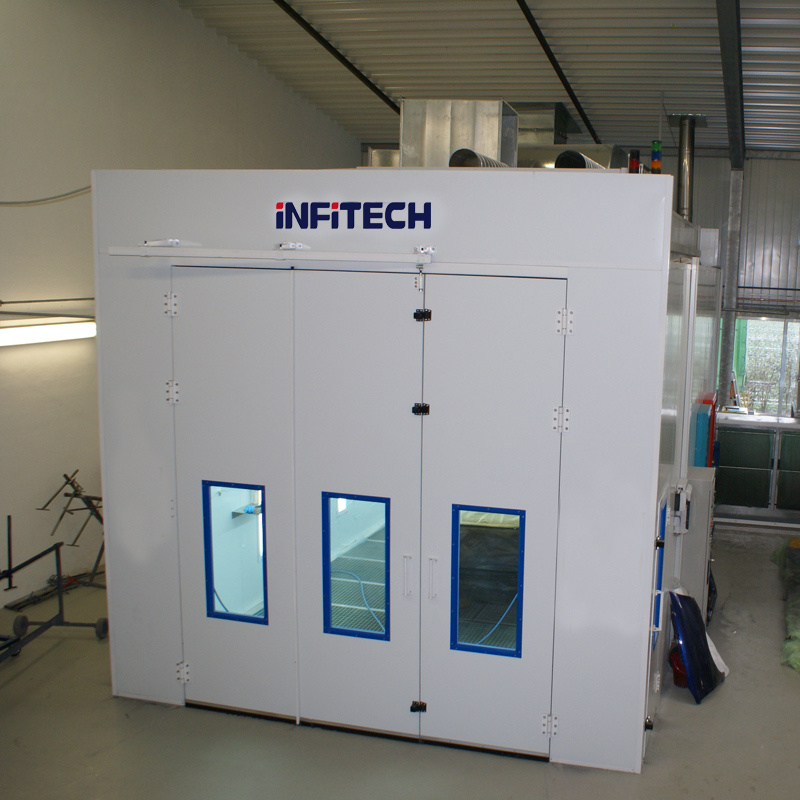

Customized Industrial Spray Paint Booth for Bus/Truck
| Price: |
US $ 10000-28000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Customized |
| Hot Water Heating: |
200kw |
| Gas Heating Exchange Capacity: |
232kw |
| Total Fan Capacity: |
35000m3/H |
| Brightness: |
>1200 Lux |
| Empty Loaded: |
+/- 0.20m/S |
| Service Time: |
Lifelong Maintenance |
| Motor Brand: |
Siemens |
| Air Exhaust: |
Optional |
| Voltage: |
380V/400V/415V, Your Special Voltages Are Accepted |
| Warranty Time: |
2 Year |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Bus/Truck Spray Booth |
| Heating Mode: |
Hot Water Heating |
Product Description
Customized Industrial Spray Paint Booth for Bus/Truck
Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter:
| Model | Customized |
| Booth Dimensions | |
| -Internal Size(L×B×H) | 10000×5000×5000mm |
| -External Size(L×B×H) | 11800×5150×5860mm |
| Foundation and Floor | |
-Loading Capacity
Of Galvanized Grating | 900KG/wheel |
| - Surface Area | 12M²(1 row galvanized grid) |
| - Metal Basement | 1200mm Height(need to dig foundation) |
| - Drive-in Ramps | NO |
| Wall and Door | |
| - Wall Panel | Double Construction Insulation rock wool panel, 75mm |
| - Roof Panel | Double Construction Insulation rock wool panel, 50mm |
| Rolling shutter door | 4300×4800 mm (B×H) |
| Lighting | |
| - Ceiling Lightings | 14 Units, each 4×36W, Total 2016W |
| - Side Lightings | 16 Units, each 2×36W, Total 1152W |
| - Brightness | >1000 Lux, IP55 Grade |
| Filtration | |
| - Prefilters | Fibreglass Paint-Stop Filters
Plate type duel filters |
| - Ceiling Filters | EU5 Fine Filters, 6 Units |
| - Floor Filters | Fibreglass Paint-Stop-Filters |
| Ventilation System | |
| -Direct Drive Motor (Fresh Air) | 11KW, 970RPM, 380V, 50HZ, Siemens |
| -Direct Drive Motor (Exhaust Air) | 11KW, 970RPM, 380V, 50HZ, Siemens |
| - Fan Capacity | 35.000m³/h |
| - Air Flow Speed | +/- 0.20m/s in an empty booth |
| Hot Water Heating System | |
| - Hot Water Heating Exchanger | 200KW |
| Gas Heating System | |
| - Heating Exchanger | 232KW(260.000Kcal/H) |
| -Burner Model | RIELLO RS5 diesel burner |
| -Max.Drying Temperature | 80 °C |
| - Heating time | 5-10 min (from 20 to 60°С) under Drying Phase |
| -Heating Type (optional) | Direct Burner |
| Control Board | |
| -Control system | Standard control delta depressurization start system, EN60204-1-2006 |
| -Function | Painting, baking, warm painting, emergency stop switch |
| -PLC | Yes |
| -Inverter control | Optional |
| -Import element | Master device import element |
| -Overpressure Manometer | Yes |
| - Alarm equipment | Yes |

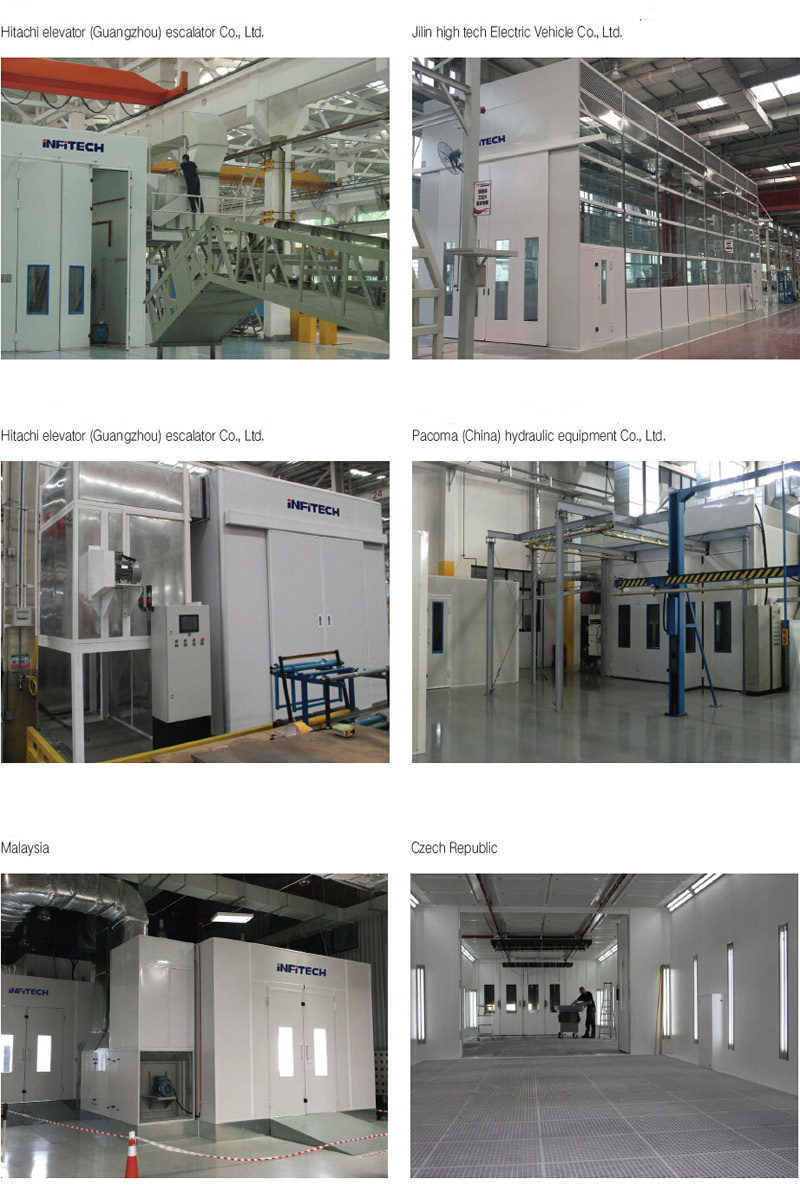

Successful stories
Company Information
Just contact us now if you have any queries/inquiries/comments.
Thank you for viewing!
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.
Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
