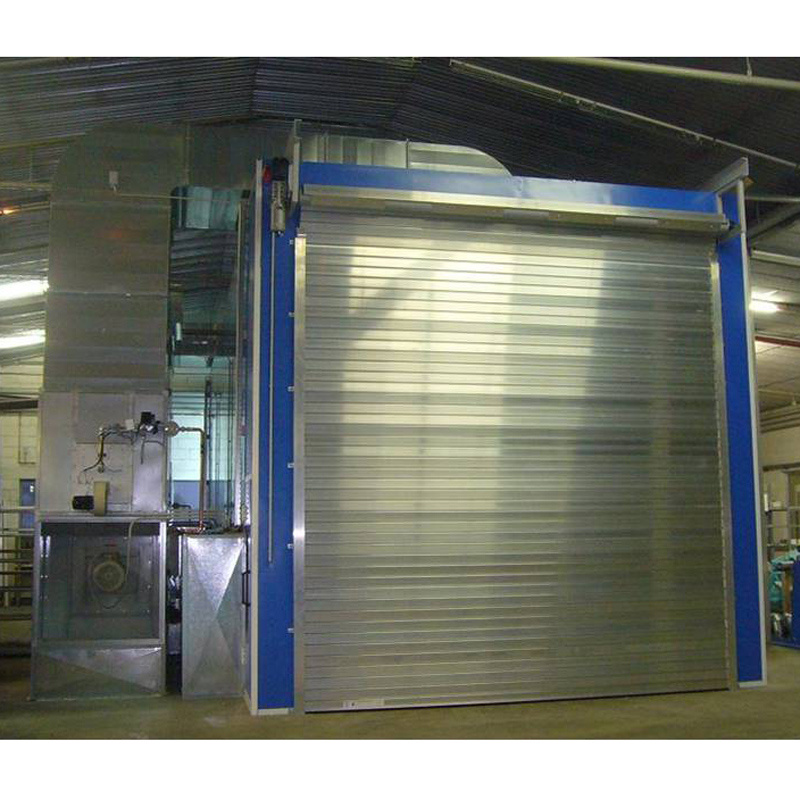

Customized, Bus Spray Booth, Painting Room
Price: |
US $ 53500/Set |
Min Order: |
1/Set |
Pay Type: |
T/T,Western Union |
Customized, Bus Spray Booth, Painting Room
Model | Customized |
Booth Dimensions | |
-Internal Size(L×B×H) | 15000×5000×5000mm |
-External Size(L×B×H) | 15150×6620×5770mm |
Foundation and Floor | |
-Loading Capacity Of Galvanized Grating | 3500KG/ wheel |
- Surface Area | 12M²(1 row galvanized grid) |
- Metal Basement | 1000mm Height(need to dig foundation ) |
- Drive-in Ramps | NO |
Wall and Door | |
- Wall Panel | Double Construction with Insulations rock wool 50mm |
- Roof Panel | Double Construction with Insulations rock wool 50mm |
Rolling shutter door | 4300×4800 mm (B×H) |
Lighting | |
- Ceiling Lightings | 20Units, each 4×36 W, Total 2880W |
- Side Lightings | 16 Units, each 2×36 W, Total 1152W |
- Brightness | >1000 Lux, IP54 Grade |
Filtration | |
- Prefilters | Fibreglass, Paint-Stop-Filters Plate type duel filters |
- Ceiling Filters | EU5 Fine Filters, 6 Units |
- Floor Filters | Fibreglass, Paint-Stop-Filters |
Ventilation System | |
-Direct Drive Motor (Fresh Air) | 2×11KW,970RPM,380V, 50HZ Siemens |
-Direct Drive Motor (Exhaust Air) | 2×11KW,970RPM,380V,50HZ Siemens |
- Fan Capacity | 70.000m³/h |
- Air Flow Speed | +/- 0.26 m/s in an empty booth |
Heating System | |
Gas direct burner | 2X315KW |
-Max.Drying Temperature | 80 °C |
- Heating time | 10-15 min (from 20 to 60°С) by Drying Phase |
-Heating Type (optional) | Diesel /Gas Burner |
Control Board | |
-Control system | Standard control delta depressurization start system, EN60204-1-2006 |
-Function | Painting, baking, warm painting, emergency stop switch |
-PLC | Yes |
-Inverter control | Optional |
-Import element | Master device import element |
-Overpressure Manometer | Yes |
- Alarm equipment | Yes |
If you wish to discuss any aspect of your project
...Please feel free to contact us..
Thank you for your viewing !
Prod Model: |
Customized |
Optional Colour: |
White, Blue, Orange and Red |
Heating Exchange Capacity: |
315kw |
Total Fan Capacity: |
70000m3/H |
Brightness: |
>1200 Lux |
Empty Loaded: |
+/- 0.26m |
Service Time: |
Lifelong Maintenance |
Motor Brand: |
Siemens |
Air Exhaust: |
Optional |
Voltage: |
380V/400V/415V, Your Special Voltages Are Accepted |
Warranty Time: |
2 Year |
Certification: |
CE |
Airflow Direction: |
Fully Undershot-type |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Brand: |
Infitech |
Heating Mode: |
Direct Burner |
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.
Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
