| Prod Model: |
Customized |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size: |
6.9X3.9X2.6m |
| External Size: |
7X5.43X3.25m |
| Air Flow: |
20000m³/H |
| Air Speed: |
0.3~0.5 M/S |
| Power: |
12kw |
| Paint Mist Treatment: |
Dry-type |
| Heating Mode: |
Diesel |
| Airflow Direction: |
Fully Undershot-type |
| Certification: |
CE |
| Condition: |
New |
| Brand: |
Wld |
| Substrate: |
EPS or Rock Wool |
Product Description

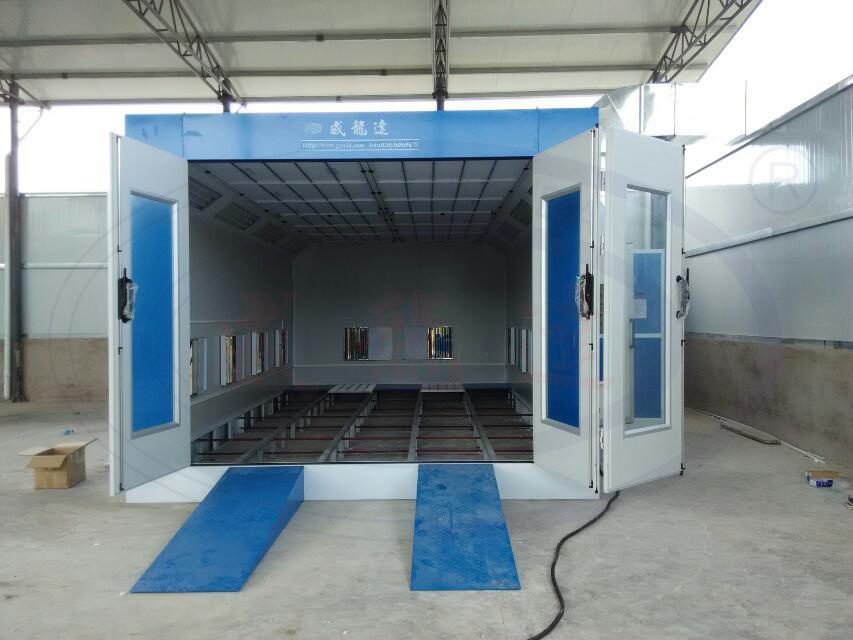

Spray Painting Booth
1. More than 15 years manufacturing experienced in spray booth.
2. Factory cost spray booth with high quality.
3. CE and ISO approved in spray booth.
Real spray booth manufacturer in China. Factory costs supply. Good quality and very very competitive price. Welcome to visit our factory at any time.
| External Size:(mm) | 7000x5430x3250 |
Front Door:(mm)
Aluminum Frame | 3000(w)x2600(h) |
| Internal Size:(mm) | 6900x3900x2600 | Total Power:(kw) | 12 |
| Cabin System | Wallboard | Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) 50mm thickness, EPS foam Density is 14kg/m³ ;The colorful steel skin boards have been HDG(hot dip galvanizing ),service life can reach 20 years without rusting. It keeps high insulation performance with a low weight.Four colors for your choice,including blue,red,orange and white. High quality galvanized steel roof panel. |
Basement | Galvanized steel sheet and square steel pipe construction. 3 row of checked plate and 2 row of grids,anti-rust and strong. The bearing capacity of driving grids and plates up to 1000 kg; Basement frame is assembly formed by corrosion-resistant steel square tube, the overall performance is good, anti-heavy and strong, not deformed. |
Door | 3 pieces of front doors with aluminum frame, Size:3000(w)*2600(h).
1 piece of emergency door. |
Air Circulation System |
Intake Fan | 2x4kw intake fan. BELIMO 20N electric damper. Siemens
technology production,large air volume and low noise. |
| Exhaust Fan | 1x5.5kw exhaust fan. Multi-layer fiberglass filter. Siemens technology production, large air volume and low noise. |
Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of straight
pipe 750*750*1000, and 1piece of elbow. |
| Filtering | Dual filtering structure. The primary filter can capture granules larger
than 10μm.Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. |
Heating System | Burner | Imported Italy Riello G10 diesel burner,100000Kcal/h.The heating time 7-9min (20-60°C) Max. temperature at 80°C. Fuel consumption is 4-5kg/ vehicle. |
| Heat Exchanger | Made of stainless steel. The heat exchange rate reaches 85%. |
| Air make up cabinet | The surface plate is galvanized plate, rust force strong, beautiful;
The frame is made of high-quality hot-dip galvanized sheet repressionr,
anti-rust and strong, more durable than ordinary surface treatment,
more beautiful, nodes with no damage spot, rigidity. |
| Oil tank support | Tank carefully made of high quality steel, the powder coating treatment,
beautiful and durable. |
| Fume pipe | Fume pipe made of galvanized pipe, diameter of 190mm, 4 pieces
of 1000mm long straight pipe, two 90 ° elbows. |
| Lighting System | Light tube | Ceiling light has 24 pieces of 36w lamps. the grade of lighting box's
dustproof and waterproof reach IP54 grade. |
| Light box | Medallions of welded galvanized plate, by the spray treatment,
stiffness, repeated disassembly easy deformation, surface brightness,
color uniformity, heat is not easy to change color. |
| Filtering System | Primary filter | Grade G2 plate type fiber glass filter ; Dual filtering structure. The primary filters can capture granules larger than 10μm. |
| Ceiling filter | EU5 grade high efficient filter ;Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment,can reach 98%. |
| Floor filter | Multilayer glass Fiber. The air cleanliness in the working environment can reach 98%. |
| Ceiling filter support | made of tube steel frame, thickness of 1.2mm, epoxy powder coating, rust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton. |
| Pollution Control System | Multi-layer fiberglass filter. |
| Control system | Control panel | Standard control system |
| Function | Painting, constant temperature painting , drying, lighting,
painting time and drying time setting ;emergency stop switch,
failure indication, over-temperature alarm indication. |
