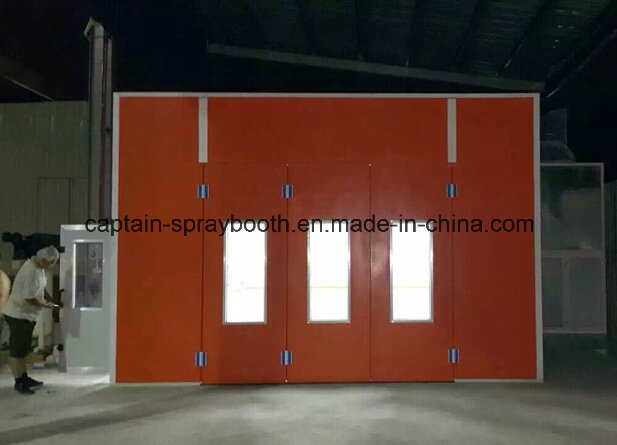

CE High Quality Riello Burner Heating Car Painting Room/Spray Booth
| Price: |
US $ 6600/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Captain-Y-BZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Dimension: |
7050X5050X3500mm(Lxwxh) |
| Inside Dimension: |
6900X3900X2800mm(Lxwxh) |
| Main Door: |
3-Folds: 3000X2750mm (Wxh) |
| Personal Door: |
1-Fold: 800X1900mm (Wxh) |
| Wallboard: |
75mm EPS Panel with 0.5mm Steel |
| Basement & Floor: |
3 Rows Diamond Plate with 2 Rows Grilles |
| Lighting System: |
24PCS Ceiling Lights, 18PCS Side Lights |
| Intake Fan: |
2X5.5kw |
| Exhausting Fan: |
1X7.5kw |
| Heating System: |
Riello Rg5s Dissel Heating |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
Product Description
Type: Spray Booths | Items | Spec |
| Outside Dimension | 7050×5050×3500mm(L×W×H) |
| Inside Dimension | 6900×3900×2800mm(L×W×H) |
| Main Door | 3-folds: 3000×2750mm (W×H), aluminium alloy door frame |
| Personal Door | 1-fold: 800×1900mm (W×H),aluminium alloy door frame |
| Wallboard | EPS colorful steel skin panel,75mm thick,steel 0.476mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel. |
| Basement & Floor | Complete steel assemble, height is 300mm, pave 3rows indented plates and 2rows grilles on the metal basement,
2Pcs ramps: 800×2000mm (W×L)/pc
|
| Lighting System | Ceiling Lights: 8Units×3Pcs=24Pcs×40W, with electronic ballasts,power-coated light box.Side Lights: 6Units×3Pcs=18Pcs×36W, with electronic ballasts, vertically set,power-coated light box. |
| Generator Setting | Intake air from side back direction, quadrate steel frame, colourful coated steel plate |
| Intake Fan | 2 sets of double-intake centrifugal fans for intake air, direct drive,5.5kw each,air capacity 30000m3/h in total. |
| Extract Fan | 1 set of double-intake centrifugal fan for exhaust air, direct drive,7.5kw, air flow 20000m3/h in . |
| Number Of Air Changes (times/hour) | 290 |
| Wind Velocity At Full Load Inside The Room(M/S) | 0.3m/s |
| Heating System | 1set Riello RG5S brand diesel oil burner, maximum heat productivity is 260,000Kcal/h,
stainless steel heat exchanger, highest temperature is 80oC,
electric damper executes from spraying to baking cycle .
|
| Maximum Working Temperature | 80 |
| Heating Rate(/min 20--60) | 4-6 |
| Filtering System | Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter. |
| Control Panel | Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch |
| Filter Efficiency | ≥98% |
| Noise(db) | ≤75 |
| Colour | Blue,red,white |
| Total power(Kw) | 21KW |
Place of Origin: Shandong, China (Mainland)Brand Name: SK Model Number: SK-BZ
Heating System: Oil, electricity
Packaging & Delivery
Packaging Detail: Proper packing suitable for container loading.Delivery Detail: 7days
Specifications
Burner Italy brand
CE approved car spray booth
High quality and durable use Auto curing booth
Delivery time within 10 days
We are professional leading factory in China.
Specializing in manufacture kinds of paint spray room system.
Also offering full garage & car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth. Offer car spray baking booth accossories.
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
