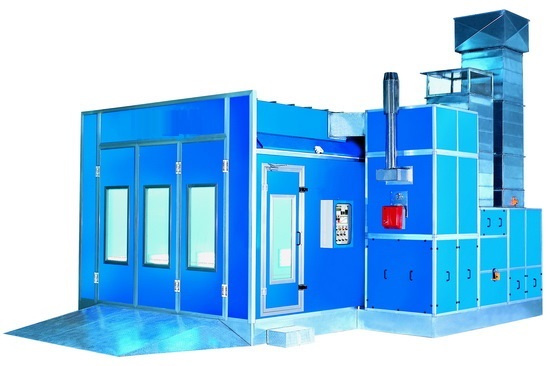

Car Spray Booth
| Price: |
US $ 4999/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Detailed Product Description
Italian Riello G20 diesel burner Auto Spray Booth for Car Paint, Body Repair, baking booth
Packaging & Delivery
Packaging Detail:Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail:To effect shipment within 7 days after deposit
Specifications
Spray Booth
1.German Technology
2.spray booth professional manufacturer
3.competitive price and assure quality
4.CE approved
| Items | Spec |
| Sketch |
|
| Outside size:(mm) | 7000X5600X3250MM(LXWXH) |
| Inside size:(mm) | 6900X3900X2600MM(LXWXH) |
| Front door:(mm) | 3-fold, 2800X2500MM(WXH) with heat insulation glass window . |
| Emergency door:(mm) | 1-fold, 650×1800mm(W×H) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limit . |
| Cabin system | Wall panel :Rock Wool material, tongue and groove interlock construction,thickness: 50mm, 0.6mm steel plate .
Basement and floor : Complete steel assemble, height: 300mm. 2 rows of grids,3 rows of embossed plates. 2Pcs ramps, each size:750X1800MM(WXL) |
| Ventilation system | Intake fan:2X4KW double-intake centrifugal fan, , air capacity:24000m3 /h
Exhaust fan: 1Pc 5.5KW double-intake centrifugal fan, air capacity:15000m3 /h |
| Heating system | Italian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional . |
| Filter system | Pre filter, high efficiency filter (ceiling filter),floor filter, exhaust active carbon filter. |
| Lighting System | Ceiling light: 4Pcs X8units=32PcsX36W,
Side light: 2Pcs X8units=16PCsX30W, |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, emergency stop, failure indicator, limited-temperature device . |
| Total power | 15 KW |
| Container needed | 20 Feet container . |
| UNIT PRICE |
|
| Prod Model: |
AUY001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Size:(mm): |
7000X5600X3250mm(Lxwxh) |
| Inside Size:(mm): |
6900X3900X2600mm(Lxwxh) |
| Front Door:(mm): |
3-Fold, 2800X2500mm(Wxh) |
| Emergency Door:(mm): |
1-Fold, 650X1800mm(Wxh) |
| Wall Panel: |
50mm Rock Wool Panel with 0.6mm Steel |
| Intake Fan: |
2X4kw Double-Intake Centrifugal Fan |
| Exhaust Fan: |
1X5.5kw Double-Intake Centrifugal Fan |
| Heating System: |
Italian Riello G20 Diesel Burner |
| Lighting System: |
32PCS Ceiling Lights and 16PCS Side Lights |
| Total Power: |
15kw |
| Certification: |
SGS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
