We are professional manufacturer of spray paint booth for over 16 years.
WeiLongDa is a good brand in China even around the world with excellent quality & competitive price.

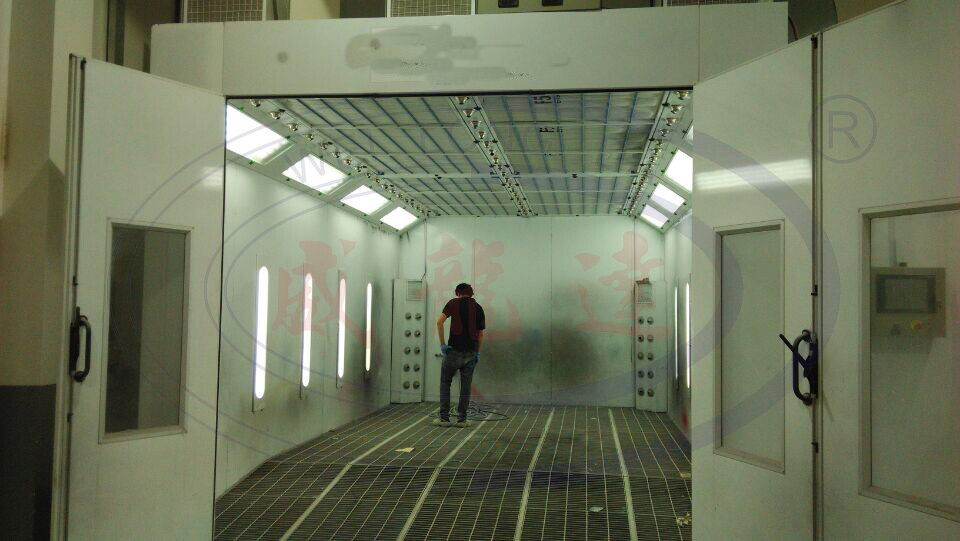

WLD9200 Saloon Car Spray Booth Configuration:
| External Size | L7000×W5450×H4000(mm) | Air Flow | 25000m³/h |
| Internal Size | L6900×W3900×H2800(mm) | Air Speed | 0.3~0.5m/s |
| Main Door Size | W3000×H2750(mm) | Fuel Consumption | 5~6kg/vehicle |
| Total Power | 20KW | Application | Saloon Car/Jeep/Wooden/Furniture |
| Wallboard | 50mm EPS, foam density is 14kg/m³. 0.476mm colorful steel skin board with hot dip galvanizing, life-span can reach 20 years without rusting. It keeps a high insulation performance with a low weight. |
| Basement | Galvanized steel sheet and square steel pipe construction. Full grids with floor filter and 3pcs of large ramps. |
| Door | 3 folders of front door, made of 0.8mm colorful steel skin board, with aluminum view window, size: W3000×H2750(mm). 1pc of service door, size: W800×H2000 (mm). |
| Fan | 1×7.5KW direct drive turbo intake fan, 1×5.5KW direct drive turbo exhaust fan. |
| Air Pipe | Made of galvanized steel sheet, consist of 4pcs of straight pipes 750*750*1000 and 1pc of elbow. |
| Nozzle | 3 rows (totally 60pcs) of ceiling nozzles with 3 sets of 1.5KW motor fans. |
| Primary Filter | Dual filtering structure, the primary filter is M pattern non-woven filter bags. It can capture granules bigger than 10μm. The air cleanliness in the working environment can reach 98%. |
| Ceiling Filter | Ceiling filter captures granules larger than 5μm. |
| Exhaust Filter | Special configure with M pattern active carbon pocket filter system. |
| Burner | Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time is 4~5min (20~60ºC). Max. temperature is 80ºC. |
| Heat Exchanger | Made of stainless steel, two layers and two wings for temperature rising quickly and dissipating more heat, the heat exchange rate can reach 85%. |
| Control Box | Touch screen control, the system is composed of PLC, converter, air pressure, transducer and Snyder electronic components. Automation intelligent control which can save 25% energy than normal system. |
| Damper | BELIMO 20N electric damper. |
| Ceiling Light | 8 units × 4pcs=32pcs of LED lamps. |
| Side Light | 8 units × 2pcs=16pcs of LED lamps. |
Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.
Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.
After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.
Please feel free to contact members of Weilongda and start a happy and win-win cooperation.
With your join, the future is better.
