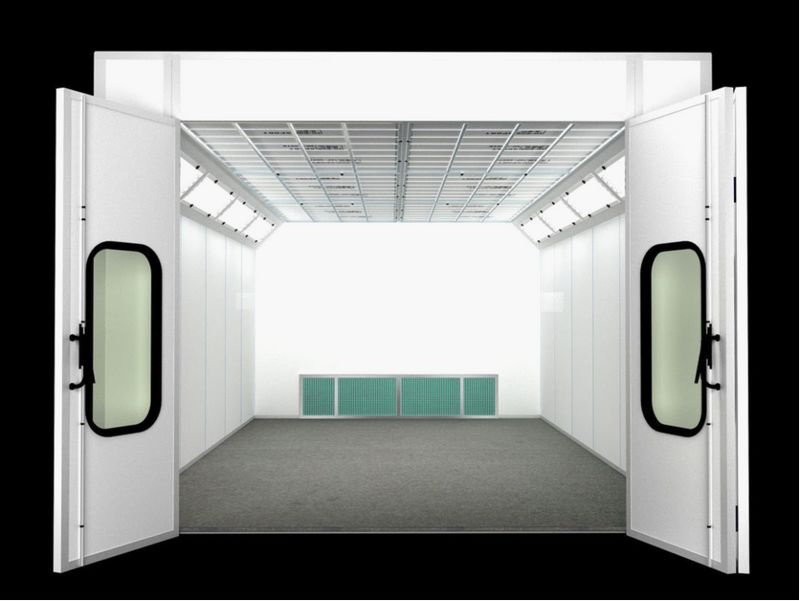

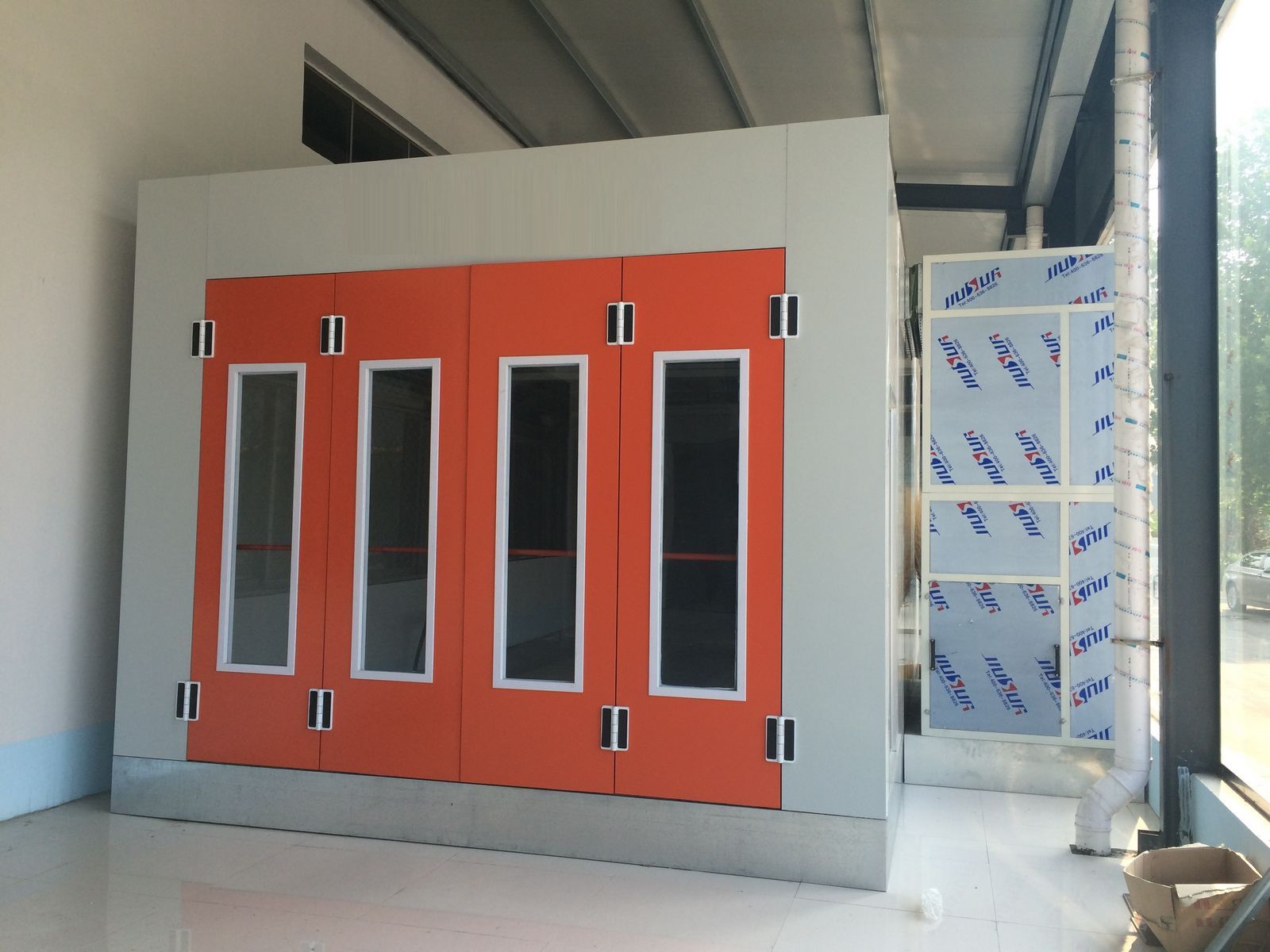

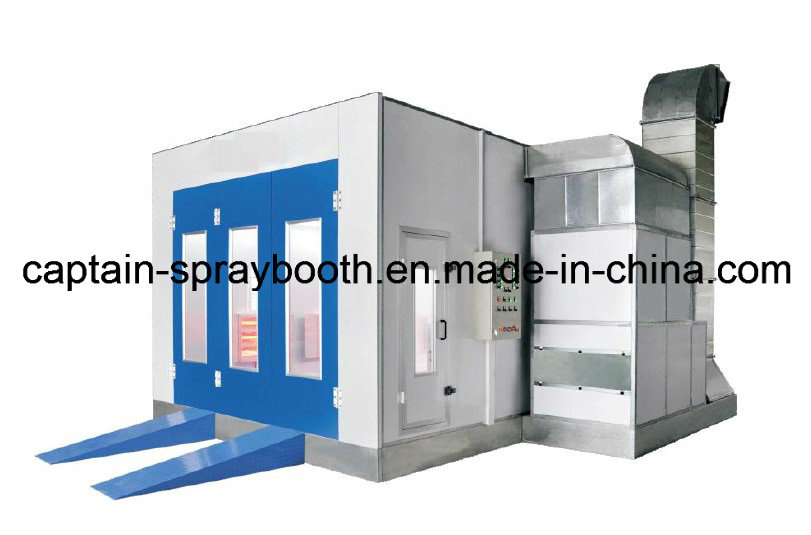

Car Paint Oven/Auto Spray Booth/Dry Chamber
| Price: |
US $ 3000-12800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Detailed Product Description
| Items | Spec |
| Sketch | |
| Items | Spec |
| Outside Dimension | 7000×5000×3200mm(L×W×H) |
| Inside Dimension | 6900×3900×2600mm(L×W×H) |
| Main Door | 3-folds: 2800×2500mm (W×H), aluminium alloy door frame |
| Personal Door | 1-fold: 650×1800mm (W×H),aluminium alloy door frame |
| Wallboard | 50mm double skinned EPS heat preservation wall panel with tongue and groove joints,steel 0.3mm thick |
| Basement & Floor | Complete steel assemble, height is 300mm, pave 2rows indented plates and 3rows grilles on the metal basement, 2Pcs ramps: 600×2000mm (W×L)/pc |
| Lighting System | Inclined ceiling lights: 24Pcs of 40W lamps |
| Generator Setting | Intake air from side back direction, quadrate steel frame, colourful coated steel plate |
| Intake Fan | 2set 3 Kw centrifugal fan, direct drive, air capacity is 30000m³/h |
| Extract Fan | Optional |
| Number Of Air Changes (times/hour) | 290 |
| Wind Velocity At Full Load Inside The Room(M/S) | 0.23m/s |
| Heating System | With 24 units high energy short wave infra-red lamps for heating. 1 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:24KW |
| Maximum Working Temperature | 80 |
| Filtering System | Primary filter, high efficiency filter, |
| Control Panel | Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch |
| Noise(db) | ≤75 |
| Colour | Blue,red,white |
| Total power(Kw) | 33 KW |

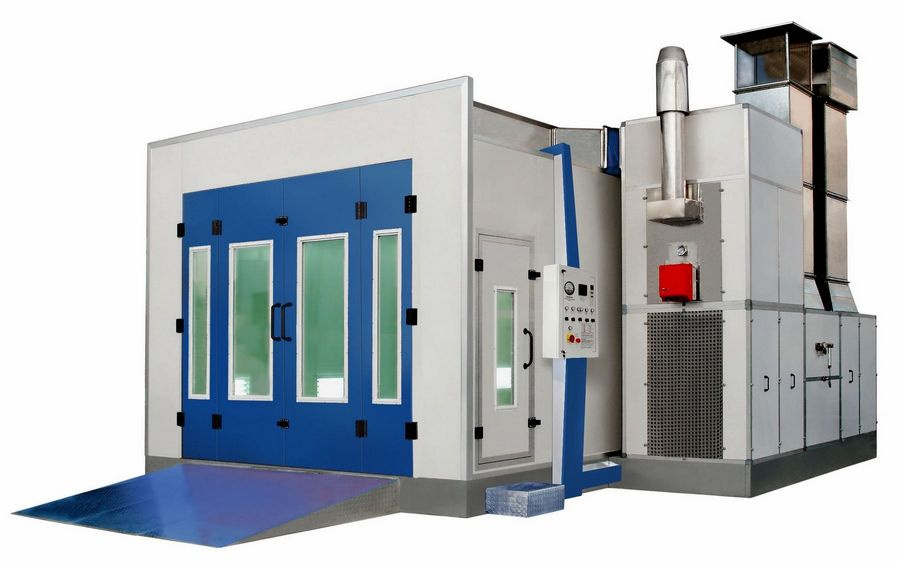

Italian Riello G20 diesel burner Auto Spray Booth for Car Paint, Body Repair, baking booth
Packaging & Delivery
Packaging Detail:Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail:To effect shipment within 7 days after deposit
Specifications
Spray Booth
1.German Technology
2.spray booth professional manufacturer
3.competitive price and assure quality
4.CE approved
| Prod Model: |
SKCED1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Dimension: |
7000X5000X3200mm(Lxwxh) |
| Inside Dimension: |
6900X3900X2600mm(Lxwxh) |
| Main Door: |
3-Folds: 2800X2500mm (Wxh) |
| Personal Door: |
1-Fold: 650X1800mm (Wxh) |
| Wallboard: |
50mm EPS Panel |
| Basement & Floor: |
2PCS Ramps: 600X2000mm (Wxl)/PC |
| Lighting System: |
24PCS of 40W Lamps |
| Intake Fan: |
2set 3 Kw Centrifugal Fan |
| Heating System: |
24 Units High Energy Short Wave Infra-Red Lamps |
| Total Power: |
33 Kw |
| Certification: |
SGS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS Sandwich Panel |
| Brand: |
Captain |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
