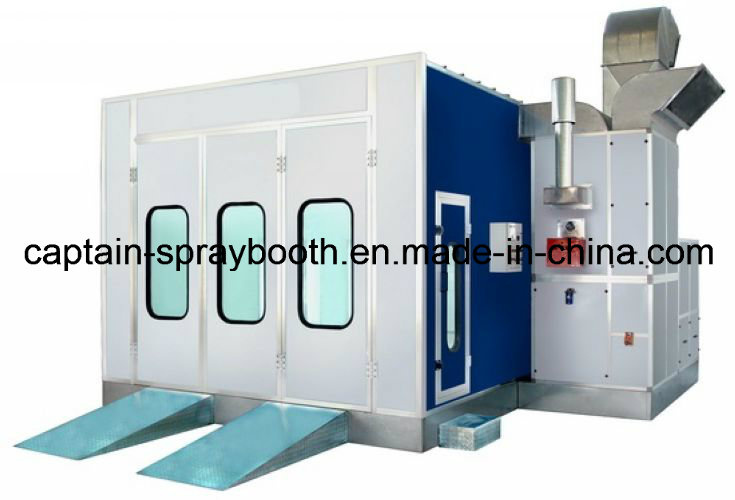

Stainless steel heat exchanger Auto Spray Booths for car repair, painting, baking
1. White, orange. Blue
2. For automobile
3. Complete steel assemble Basement and floor
Car painting, Automobile Baking, Portable Auto Spray Booths
1. Italian Riello RG5S diesel burner
2. SUS304 Stainless steel heat exchanger
3. Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: White, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales service
Packaging & Delivery
Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit
Specifications
Spray Booth
1. German Technology
2. Spray booth professional manufacturer
3. Competitive price and assure quality
4. CE approved
For more information please email
| Inside Dimension | 6900X4000X2600MM(LXWXH) |
| Outside Dimension | 7000X5600X3250MM(LXWXH) |
| Main door | 3-fold, 2700X2500MM(WXH), with heat insulation glass window,
handmade door without aluminum alloy door frame |
| Personal door | 1-fold, 650X1800MM (WXH) with one step. There is two sets of pressure lock
which will automatically open when the pressure inside is over the limite. |
| Booth System | Wall panel :EPS(epispastics polystyrene) heat preservation panel double skinned ,
tongue and groove construction, thickness: 50mm EPS , steel thickness0.5mm . |
Basement and floor: Complete steel assemble, height: 300mm. 2 rows of grids,
3 rows of embossed plates. 2Pcs ramps, each size:700X1800MM(WXL) |
| Lighting System | Upper light: 3Pcs X8units=24PcsX36W, Phillip brand light tube with PAK light holder
Side light :2Pcs X 8units =16Pcs X 30 W,Phillip brand light tube with PAK light holder |
| Generator setting type | Side back intake air, quadrate steel frame, coated steel plate |
| Ventilation System | Intake fan:1X 7.5KW turbo fan, direct drive, air capacity:23000m3 /h
Air Speed: 0.22m/s |
| Exhaust fan: 1X5.5PCS double-intake centrifugal fan for exhaust air, air capacity:18000m3 /h |
| Heating system | Italian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 6~8 min.
|
SUS304 Stainless steel heat exchanger, highest temperature 80C, 1pc electric damper
from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging
area, high heat utilization, more than 87.1% heat exchanging rate |
| Filter system | Prefilter, high efficiency filter(ceiling filter), floor filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, emergency stop, failure indicator |
| Total power | 15KW |
| 20 feet container needed |
| |
