Best Selling Popular Model Car Paint Booth
| Price: |
US $ 5000-8000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Spray booth PC-EC06-4S configuration tableAutomotive spray booths/ paint booths/ paint spray booths/ automotive paint booth / downdraft spray booth1. CE standard2. 10 years professional spray booth manufacturer3. Competitive price with best quality4. Timely sell service and lifelong after service work5. Prompt delivery and effective loading
Specification in details:

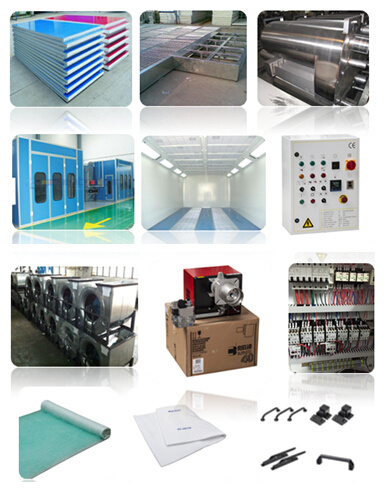

Outside dimension:7000×5560×3430mm (L×W×H); Inside dimension: 6900×4000×2650mm (L×W×H); Working door dimension: 650×1800mm (W×H)Front door dimension: 3000×2600mm (W×H); Tips: the front door can be opened from both inside and outside;Cabin system:1) Wall panel: 50mm thickness flame-resistant and heat-preserving EPS panel; 0.4mm thickness double-face colored steel sheet;Roof panel: 0.8mm galvanized steel sheet; Tips: Cover structure is the Alluminium alloy2) Basement: galvanized steel sheet and square steel duct assembling, grilles and embossed plates; base height is 280mm; with 2pcs ramps, the length is 2000mm; Lighting system: ≥900Lux; Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W; Philips lamp; Side Lights: 8Groupsx2Pcs=16Pcs x36W; Philips lamp; Back wall lights: 3Groupsx2Pcs=6Pcs x36W; Philips lamp;Glass: all glass is clear tempered glass.Generator: back upper side intake air; back upward side exhaust; quadrate steel frame, galvanized steel sheet without powder coated; Air purification system: Primary filter, ceiling filter, floor filter (fiber glass filter);Air circulation system:| Inhaling Ventilator | Model: YDW-4.5AL1 | Exhaust Ventilator | Model: YDW-4.5L |
| Blower Capacity: 11000m3/h | Blower Capacity: 14000m3/h |
| Pressure: 800Pa | Pressure: 810Pa |
| Rolling Speed: 900rpm | Rolling Speed: 900rpm |
| Power: 3kw | Power: 4kw |
Air exhaust pipe: 6m straight from the cabin with 1x 90°elbow and 1x 30°elbow; Automatic electric damper, 10N actuatorHeat system: RIELLO G20 diesel burner (one stage), heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes;Chimney: 4m from the cabin and 1 elbow, galvanized sheet made;Loading air speed: 0.36m/sAir exchange rate: 300tims/hControl box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, emergency stop, breakdown alarm;Total power: 15KWVoltage require: 380V, 3P, 50HzEC series Paintcolor spray booth is our new batch production to meet different area customer groups. Its feature is the lower price, the more simple installation work and the more effective container space utilization. One 40' container would be full in 4 sets such spray booth. To get the latest price, please contact me by:
MB: 86-(0) 183 1681 9815 .
| Prod Model: |
PC-EC06-4S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V/3p, 220V/1p, and Special Voltages |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White or Blue |
| Air Intake: |
2X3kw Double-Intake Centrifugal Fan |
| Air Exhaust: |
1X4kw Centrifugal Fan |
| Heating: |
G20 Diesel Burner/ GS20 Gas Burner |
| Wall Panel: |
50mm or 70mm EPS, Rock Wool or PU |
| Loading Air Speed: |
0.36m/S |
| Air Exchange Rate: |
300tims/H |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Automotive Spray Booth |
| Brand: |
Paintcolor |
| Airflow Direction: |
Full Downdraft Airflow Way |
Guangzhou Paintcolor Mechanical Equipment Co., Ltd. Started in 1999 and was established in 2005. It's an enterprises engaged in the field of surface treatment technology and focused on painting and coating equipment research, development, production and sales. The company is located in China's most developed industrial areas Guangzhou City, Guangdong Province. It takes 20mins to Guangzhou Baiyun International Airport. The new company Foshan Paintcolor Trade Co., Ltd was established in 2017. It's an independent sale center; Elaborate product promotion for better customer experience and service support.
Our main products includes paint booth, car spray booth, industrial paint booth, powder spray booth, auto shower testing booth, sheet metal machines, reciprocating machine, cyclone powder recovery system, powder gun, and powder coating line. Products have SGS and CE certificate.
The company has consistently adhered to the excellent staff, advanced technology and sophisticated equipment, and strict implementation of quality management system ISO900I. With "accurate, reliable, professional" the spirit of the production and service faith, the company has grown in strength and won the customers trust in the past ten years. Currently our products are sold throughout the country 34 provinces, autonomous regions and municipalities, and exported to the United States, Russia, Germany, Ghana, Indonesia and other countries.
We actively participate in industry exchanges and outreach activities. In the long process of development, we have established long-term good relations of cooperation with many large domestic manufacturers, based on our perfect product quality, good performance, and leading technology.
We have confidence to face the future challenge as we do 'customer first, service first'. If you are finding the cooperator-reducing costs, improving quality and persistent service, 'Paintcolor' is one of the best choose you can't miss.
