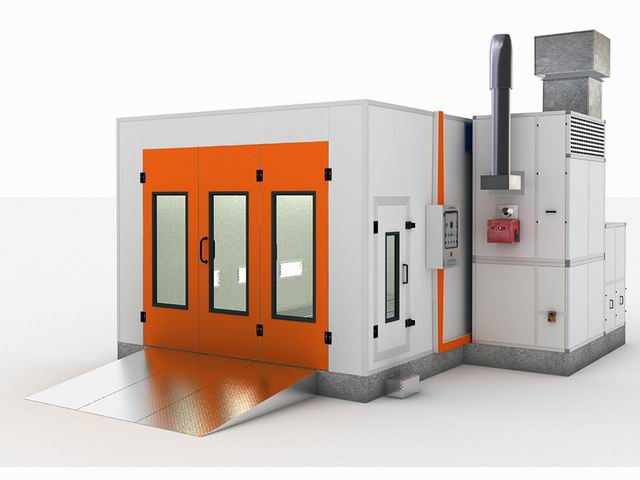

Auto Spray Booths/Car Maintenance
| Price: |
US $ 5600/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Detailed Product Description
Downdraft Car Maintenance, Auto Spray Booths With one 5.5KW exhaust fanDowndraft Car Maintenance, Auto Spray Booth With one 5.5KW exhaust fan
1.CE approved, ISO 9000 safety control
2.2X4Kw double-intake centrifugal fans
3.high quality
Car painting, Automobile Baking, Portable Auto Spray Booths
1.Italian Riello RG5S diesel burner
2.SUS304 Stainless steel heat exchanger
3.Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: white, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales servicePackaging & Delivery
Packaging Detail:Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail:To effect shipment within 7 days after deposit
Specifications
Spray Booth
1.German Technology
2.spray booth professional manufacturer
3.competitive price and assure quality
4.CE approved
| Inside Dimension | 6900X4000X2600MM(LXWXH) |
| Outside Dimension | 7000X5600X3250MM(LXWXH) |

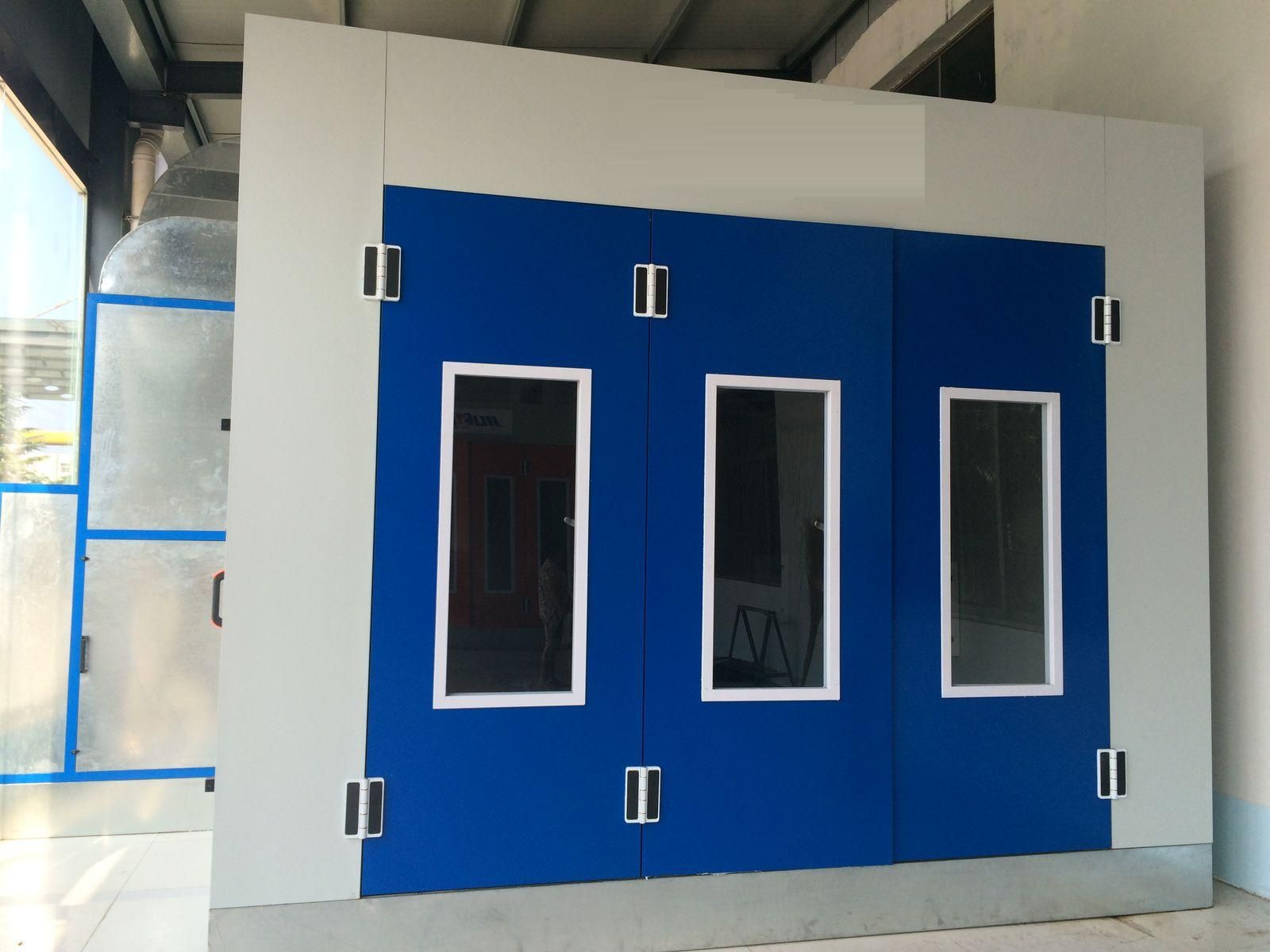

| Main door | 3-folds, 2700×2500mm(W×H), with heat insulation glass window, handmade
door without aluminum alloy door frame |
| Personal door | 1fold, 650×1800mm(W×H), with one step. There is two sets of pressure lock
which will automatically open when the pressure inside is over the limit |
| Booth System | Wall panel :EPS(epispastics polystyrene) heat preservation panel, thickness:
50mm, width: 950mm; roof panel: galvanized plate |

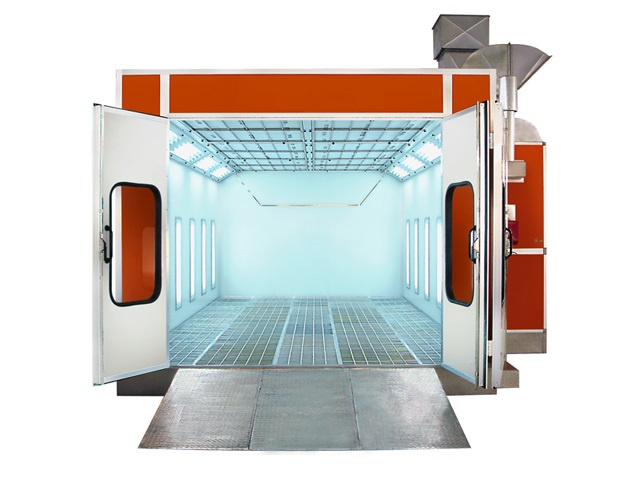

Basement and floor:Adjustable height bolt, complete steel assemble. 5rows of
grids. 3pcs of ramps, each size:750X1800MM(WXL) |
| Lighting System | Ceiling light: 3Pcs X8units=24PcsX36W, Lower light: 2Pcs X8units=16PCsX30W
Philip tube, horizontal installation, with electronic ballasts, lighting box made of
cold roll steel plate, white powder coating |
| Glass | All windows and light cover by ovenproof toughened glass |
| Generator setting type | Intake air from side upper and exhaust air from back upper, framed with aluminum
alloy, white coated steel plate |
| Ventilation System | Intake fan:2X4Kw double-intake centrifugal fans, model:YDW 4.5L, air
capacity is 25000m3 /h. |
| Exhaust fan:1Pc 5.5Kw double-intake fans exhaust air cabinet , model:YDW4.5S, air capacity is15000 m3/h |
| Heating system | Italian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional |
SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
highest temperature 80C, 1pc electric damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 87.1% heat exchanging rate |
| Filter system | Prefilter, high efficiency filte (ceiling filter), floor filter, exhaust active carbon
filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, time accumulator, pressure gauge, emergency stop, failure
alarm, limited-temperature device |
| Total power | 16KW |
| Prod Model: |
AU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
6900X4000X2600mm(Lxwxh) |
| Outside Dimension: |
7000X5600X3250mm(Lxwxh) |
| Main Door: |
3-Folds, 2700X2500mm(Wxh) |
| Personal Door: |
1fold, 650X1800mm(Wxh) |
| Wall Panel: |
50mm EPS with 0.5mm Steel |
| Basement And Floor: |
Full Grilles |
| Lighting System: |
24PCS Ceiling Lights, 16PCS Side Lights |
| Intake Fan: |
2X4kw Double-Intake Centrifugal Fans |
| Exhaust Fan: |
1X5.5kw Double-Intake Centrifugal Fans |
| Heating System: |
Italian Riello G20 Diesel Burner |
| Certification: |
SGS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
