Outside size: (mm)7000x5250x3430
Inside size: (mm)6900x3900x2650
Main door size: (mm)3000(W)x2600(H)
Total power: (kw)8.5
Room system
1.50mm EPS insulation wallpanels, roof panels are high quality galvanized sheets.
2. Main door frames are made of bending section, emergency door at the main door.
3. Room frames are fixed by galvanized sheet.
4. The basement consist of galvanized sheets, Corrosion resistant square steel, reinforce checkered plates.
5. Inside ramps construction.
Air circulation system
1.1*7.5kw Single inlet turbo fan, air capacity: 25000m3/h
2. Air generator group consist of painted section bar and galvanized sheets.
3. Exhaust air duct consist of galvanized sheets and flanges.
4. On-load air velocity: 0.35m/s, air change rate: 320times/h
Purification system
1. Inlet air filter is high quality filter, it can catch 10um dust particle.
2. Roof filter is high-efficient filter, it can catch 5um dust particle.
3. Floor filter is fiber glass filter.
Heating system

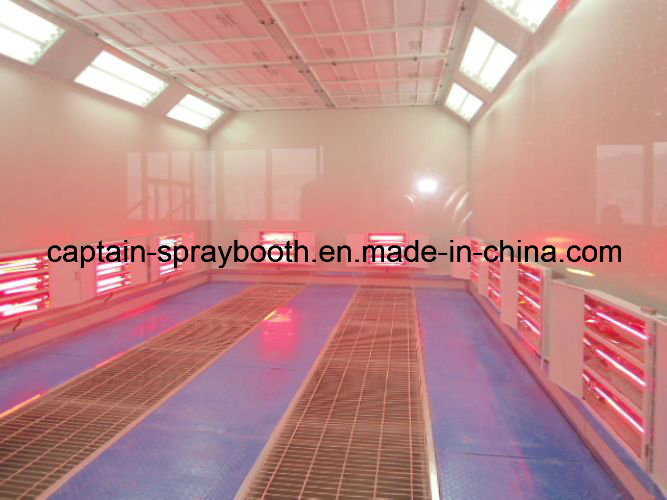

Infrared Lamps System. It consist of infrared lamps and control systems. Two side walls with 24pcs*1kw infrared lamps. Backside wall with 9pcs*1kw infrared lamps.
Total power: 33kw, It adopts 3 sets contactors to control the lamps seperately.
Max temp: 80C, temperature rise speed: 15-20min(work temperature 20-60C).
Lighting system
1. Roof lighting: 24pcs*36w Philips lamps.
2. Illuminance: 700Lux
3. Side lighting system is optional
Control system
1. It adopts high-quality electronic components, Major loop set Multiple protection.
2. It consist of lighting switch, temperature/time setup, normal temperature paint, constant temperature paint, baking switch, emergency stop switch, fault alarm, hour meter etc.
Exhaust gas disposal
1. Direct exhaust
2. Exhaust fan is optional
20'/40'HQ PCS
1 set/20'GP, 3 sets/40HQ
| Model: | EX-YB 100R |
| Sketch | |
| Outside Size(mm): | 7050*5500*3500 |
| Inside Size(mm): | 6900*4000*2800 |
| Front Door(mm): | 2800(W)*2600(H), 3 pieces folding doors,frame cover, with two sets of pressure locks. |
| Service Door(mm): | 650*1800, with two sets of pressure lock which will automatically open when the pressure inside is over the limit. |
| Total Power: | 16 kw |
| Cabin System | Wallboard | EPS material, tongue and groove interlock construction, thickness: 75 mm, 0.5mm steel plate. |
| Basement | 300mm depth, patented circumferential diamond plate design, middle with grids, 2 Pcs ramps, each size: 750X2000MM(WXL). |
| Inlet Fan | Double-intake belt centrifugal fan, Capacity: 14500m³/h each. | Outlet Fan | Double-intake belt centrifugal fan, Capacity: 18000m³/h. |
| Power: 4 kw | Power: 5.5kw |
| Quantity: 2 set | Quantity: 1 set |
| Ducting | 4 meters exhausted air duct, one flop damper, one weather hood, one anti-bird mesh. |
| Purification System | G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter. |
| Heating System | Italy Riello G20 diesel burner, 200000Kcal/h. |
| Heating exchanger, stainless steel, argon arc welding, heating exchange rate 85%. |
| Chimney ducting | 3 meters stainless ducting and one chimney elbow. |
| Max temp: 80ºC, heating time: 4-6min(20-60ºC), fuel consumption: 5-8 kg/ vehicle. |
| Lighting System | Ceiling Lights: 8Units×4Pcs=32Pcs×36W,
Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux. |
| Controlling System | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller. |
| Environmental System | G3 grade glass fiber floor filter, exhaust active carbon filter. |
