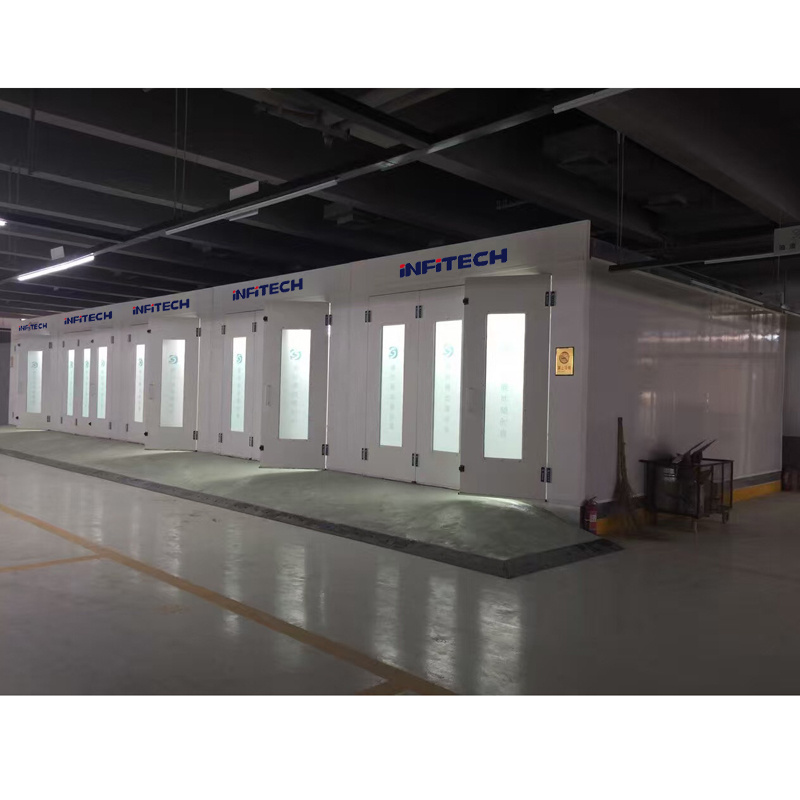

Auto Spray Booth with Car Lift Inside
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
1.Advantages of this item
A. PLC intelligent controller
B. Motor-driven pressure balance valve
C. Doble protection with over temperature
D. 200KW Burner and Energy Saving Heating Exchanger
E. 2x7.5W SIEMENS Big impeller Fan, Sparkproof Design
2.Specification
| DESIGN STANDARD | BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 |
| Booth Dimension | The internal dimension | 7000 X 4000 X 2800mm (L X WX H) |
| The external dimension | 7110 X 5570 X 3810mm (L X W X H) |
| Basement | Base design forming | Full grid, floor(h):350mm, can adjustable |
| Carrying capacity of grid | 650 kg/wheel |
| Filter area | 28m2 |
| Drive-in-ramps | X3;size:2000X1030X320,diamond structure |
| Grid description | Size:997X756mm, 40X3mm,
pressed steel grating grille |
| Cabin | Cabin structure | vertical wall plug |
| Plenum height | 600mm |
| Wall Panel | Wall panel | 50mm wall panel:heat-resistant rock wool |
| Top material | 50mm wall pane:heat-resistant rock wool |
| Material edging | 1.2mm galvanized plate bending forming |
Door | Entrance door | 3200 X 2700 mm (W X H); 2 + 1 structure;
Containing frame, filling heat-resistant EPS |
| Working door | 800×2000 mm (W×H) ;Frame structure
With safety glass observation window |
Lighting | Side lighting | 8 sets of boxes, each 2X36W, 576W total |
| Ceiling lighting | 8 sets the boxes,each4X36W,1152W total |
| Lighting arrange way | On both sides |
| Lighting description | Protection class IP55, CE certified electronic rectifier,
OSRAM lamp |
| Brightness | > 1200Lux |
Filtration System | Pre-filter | G3 grade pre-filter plate filter |
| Ceiling filter | F5 class filter cotton, Model SP-600G |
| Bottom paint mist collecting | Fiberglass paint-resistance filters |
| Exhaust filter | Fiberglass paint-resistance filters |
Inlet Exhaust
System | Fan | Direct-type turbine fan |
| Fan power and motor | 7.5KW,970 rpm, 380 V, 50 Hz,Siemens motor |
| Parameter | 28000m3/h ,650pa |
| | Empty loaded | +/- 0.28m |
| Noise | <78db |
| Heating System | Heat exchanger material | Stainless steel 1Gr18Ni9Ti(SUS304) |
| Heat power | 200KW |
| Temperature capability | 20° C (from -10°C to 10°C under painting state) |
| The Max working Temp | 80°C |
| Heating time | 3-5minutes (from 20°C to 60°C under baking state) |
| Model diesel burner | RG5S |
| Control System | Implementation of standards | Standard Y/Δ Drop Starting Control System |
PLC programmable
logic controller | The PLC control, higher reliability, lower failure rate |
| Pressure detection | Pressure gauge indicates the pressure in room |
| Features | Painting, heating painting, leveling, paint, emergency
stop switch, failure indication, over-temperature alarm
indication, baking delay stop protection |
| Pipeline | Straight:X4; Rain hat:X1; Reducers:X2;
Manual damper:X1; Electric damper:X1 |
| Special item | Rated power:20KW |
3.Optional SystemsA. Diesel heating system
B. Direct-fired energy saving heating system
C. IR(infrared ray) drying system
D. Cold Wind Pre-heat Economizer

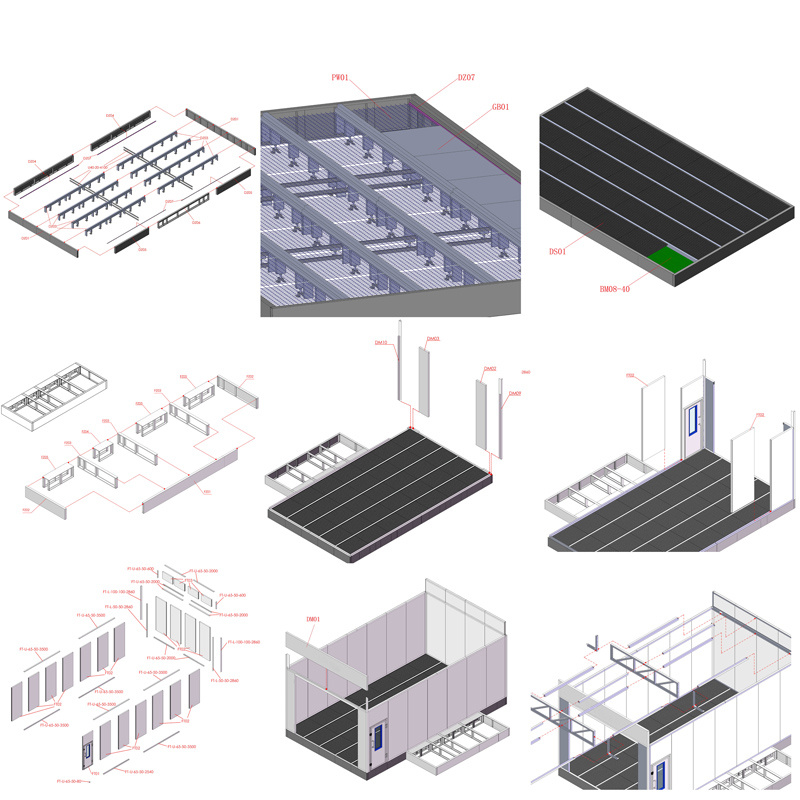

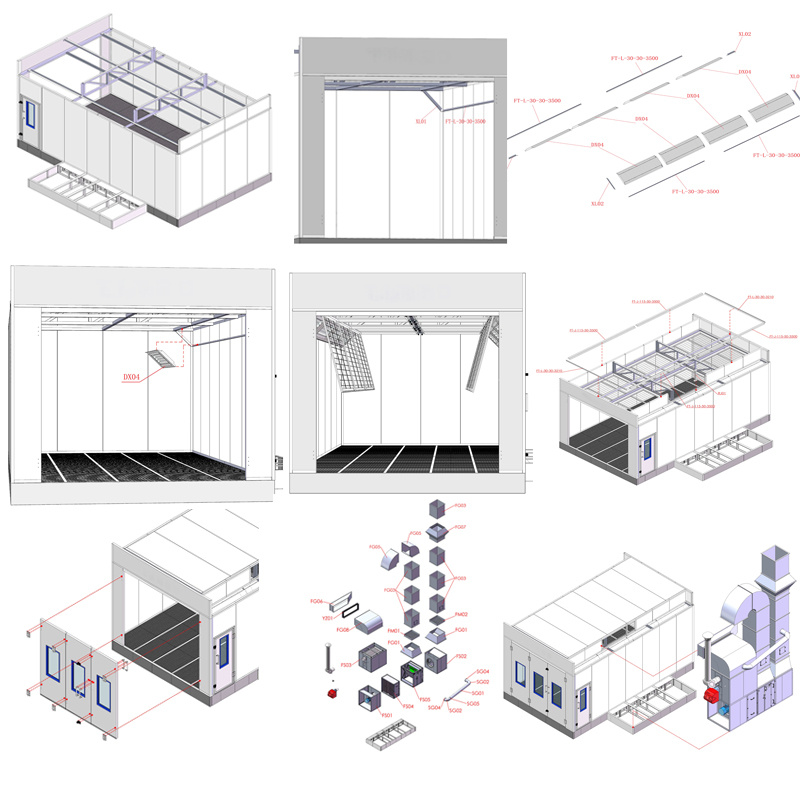

E. 7 construction environment-friendly honeycomb activated carbon filter4. Installation Profiles
If you wish to discuss any aspect of your project
...Please feel free to contact us..
Thank you for your viewing !
| Prod Model: |
Customized |
| Brightness: |
>1200lux |
| Total Fan Capacity: |
28000m3/H |
| Empty Loaded: |
+/-0.28m/S |
| Heating Exchange Capacity: |
200kw |
| Motor Brand: |
Siemens |
| Burner Model: |
Rg5s |
| Delivery Date: |
20 Days |
| Color: |
as Request |
| Voltage: |
380V |
| Warranty: |
2 Years |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
