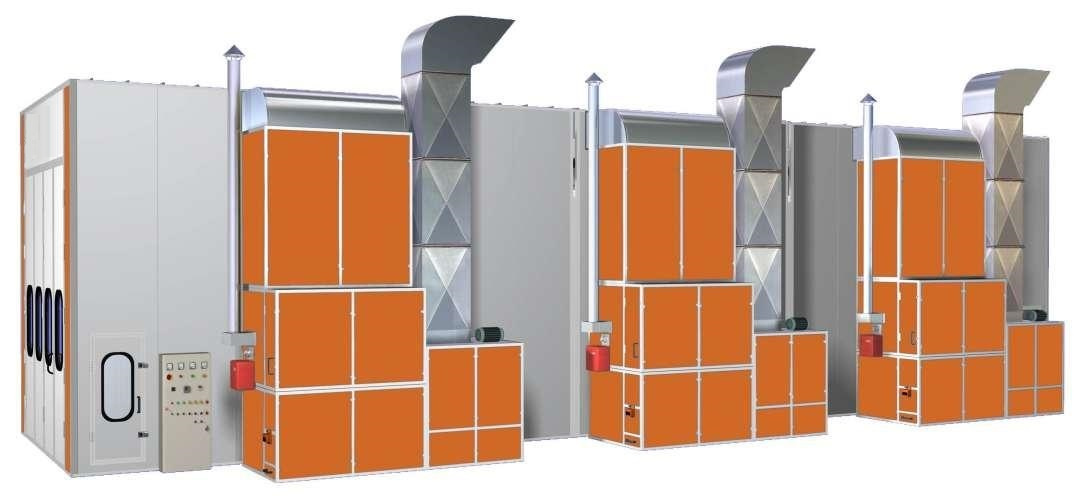

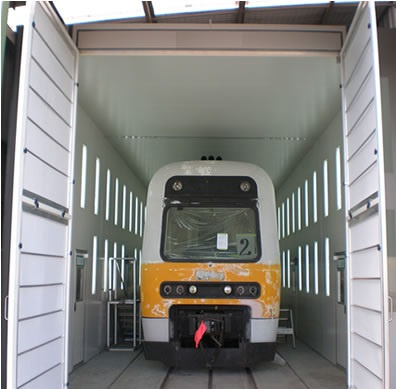

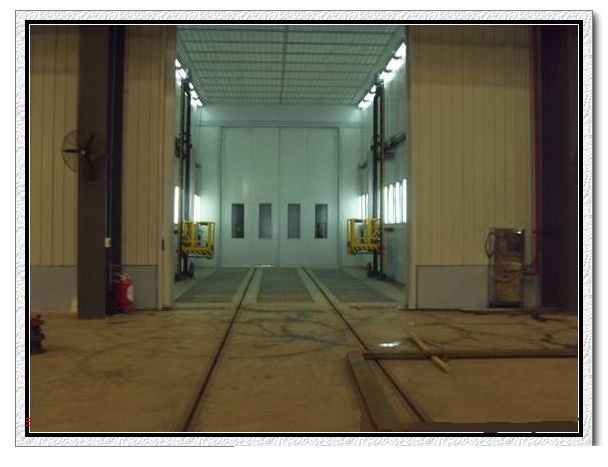

20M Riello RG5S Heating Electric Industrial Spray Booths for Painting and Baking | Booth Dimension |
| - Internal Size(L×W×H) | 20000×5000×5000mm & 65'6X16'4''X16'4'' |
| - External Size(L×W×H) | 20144×6896×5600mm & 66'1''X22'6''X18'4'' |
| Foundation and Floor |
| - Grid | full grid ,2 rows air exhust plenum chamber |
| - Metal Basement | Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is 18400×760mm(L×W),
with galvanized grids made by twisted steel and flat bar above |
| Wall and Door |
| - Steel Wall | Profiled bar beams in the roof to strengthen the room body Double construction,with insulations EPS , thickness 75mm, width:950mm, tongue and groove interlock structure |
- 4-Folded Entrance Door
With Safety Glass Window | 1 Unit, 4000×4500mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside |
- Operator's Door With

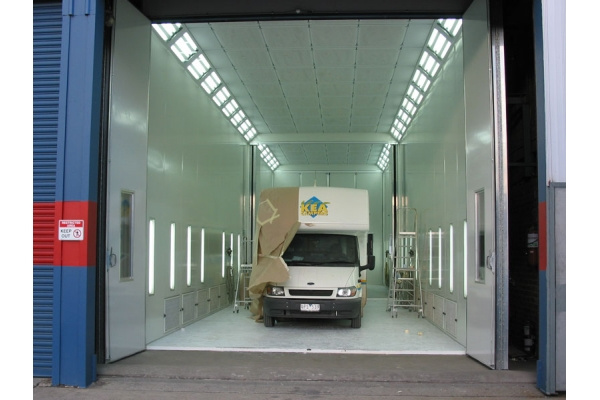

Safety Glass Window | 2Units, 650×2000 mm(W×H) ( 2 service door all at the left side ) |
| Lighting System |
| - Ceiling Lights | 26Units, each 4×36 W, with electronic ballasts |
| - Side Lights | 32Units, each 2×30W, with electronic ballasts |
| Filter System |
| - Filter | Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter |
| - Filtering area | 84M2 |
| Ventilation System |
- Intake air system
(Fresh Air) | 6×5.5KW double-intake centrifugal fans for intake air, model YDW4.5S,
total air capacity: 93000m3/h |
- Exhaust
air system(Exhaust Air) | 3×11KW double-intake centrifugal fans for exhaust air, with motor outside,
belt-drive, model TAE-630H, total air capacity: 84000m3/h |
| - Damper actuates | Equip pneumatic damper actuates from spraying to baking cycle,
manual dampers for exhaust air |
| Heating System |
| - Heating Exchange | Stainless Steel |
- Heating
Exchange Capacity | 260000Kcal/h |
- Max. Drying
Temperature | 80 °C |
| - Heating time | 8-12 min (from 20 to 60) by Drying Phase |
| - Heating Type (optional) | RIELLO RG5S (260000 kcal/h)Diesel )3set |
| Control Box |
| - Control system | Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator,
thermostat, power supply switch, emergency stop, ampere meter,
voltmeter, hours meter, temperature limit controller, pressure gauge.
exhaust reduction voltage motor start |
| - Total power | 88KW |
