Product Description
CPDE127501 |
Outside Size(mm): | 12150×6000×4500mm(LXWXH) |
Inside Size(mm): | 12000×4500×4000mm(LXWXH) |
Front Door(mm): | 3800×3900 mm(WxH), 4-Folded with Safety Glass Window, galvanized steel cover frame,with polystyrene(EPS) insulation inside. |
Service Door(mm): | 650×2000 mm(W×H),2 Units, With Safety Glass Window and two sets of pressure lock which will automatically open when the pressure inside is over the limit.(2 service door all at the left side) |
Total Power: | 92KW |
Cabin System | Wallboard | Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside . |
Basement | Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is10350×760mm((LxW), with galvanized grids made by twisted steel and flat bar above. |
Inlet Fan(Belt) | Capacity: 14500m³/h each | Outlet Fan(Belt) | Capacity: 18000m³/h each |
Power: 4kw | Power: 5.5kw |
Quantity: 4 sets | Quantity: 2 sets |
Purification System | G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter. |
Heating System | With 24 units high energy short wave infra-red lamps for heating. 2pcs/ unit, each lamp 1 KW, total power of infra-red lamp:48KW |
|
max temp: 80ºC, heating time:4-6min(from 20 to 60)by Drying Phase |
Lighting System | Ceiling Light: 16 Units, each 3×36 W, with electronic ballasts; Side Light: 18 Units, each 2×36W, with electronic ballasts |
Controlling System | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller. |
Environmental System | G3 grade glass fiber floor filter, exhaust active carbon filter. |

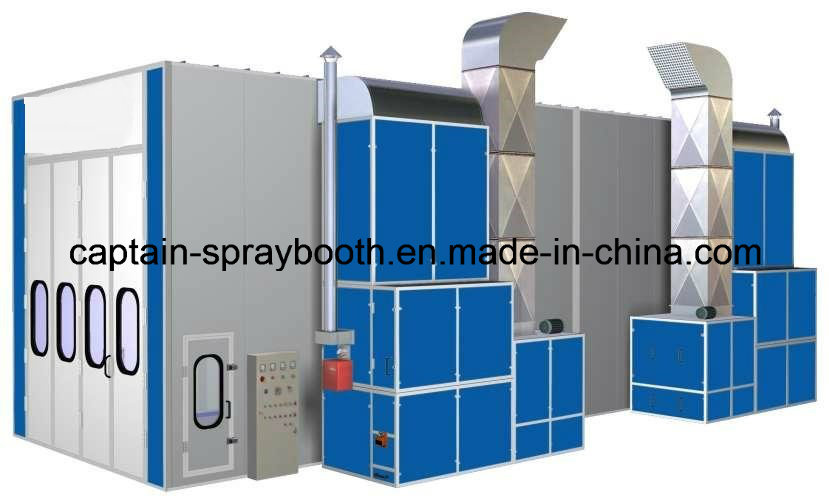

1. This paint spray booth is suitable for 12m bus.
2. Has CE certification
3. High quality, competitive price, famous brand in China.
4. OEM is available.
5. Can be produce as customer's requir.
Booth DimensionsExterior size(mm)(L)12125× (W)8400× (H)5000
Interior size (mm)(L)12000× (W)5000× (H)5000
Foundation and FloorLoading capacity of galvanized No basement, with side air collector, each side has 5 units, total 10units air collector, each unit size: (L)2000× (W)500× (H)800mm
Surface area of rear exhaust box15 m²
Metal BasementNo
Drive-in rampsNo
Wall and doorSteel wall75 mmthick EPS panel
Roof panelDouble-layer galvanized plate, with heat insulation cloth inside.
4Folded entrance door with safety glass window1 unit.
entrance door size: (W)4000× (H)4300 mm
Operator' s door with safety glass windows2 unit, (W)800× (H)1800mm
LightingCeiling lightings12 units, each unit: 4× 36 W, total 1728W, IP54
Side lightings18units, each unit: 2× 36 W, total 1296W, IP54
Brightness> 950Lux
FiltrationPrefiltersPlate filter, G3 grade
Ceiling filtersF5 grade filter
Exhaust filtersBottom, G2 grade filter
