Triangle Spoke Steel Wheel for Trailer

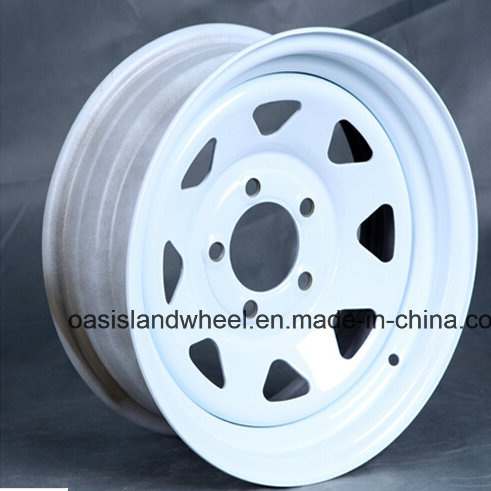

Name: Triangle Spoke Steel Wheel for Trailer
Brand: ibuyautoparts.com
SKU: 778766705
Availability: InStock
Rating: 4.6 (135 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	4jx12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Painting:	White / Silver /Black
Material:	Steel
Type:	Rim
Wheel Hub Diameter:	16-20"
Spoke Type:	Three Section Variable Diameter Spoke
Certification:	DOT
Drive Wheel:	Trailer
Finishing:	Painting
Wheel Accessories:	Nude
Wheel Hub Brand:	Oasisland

Product Description

Triangle Spoke Steel Wheel for Trailer

Used for 4X4 Truck or trailer in all season or snow
Made in high quality factory with international standard.
Warranty: 2year
Assembly: Available.

Specification:

12x4-PCD4X101.6
13X4.5-PCD5X114.3
14X6-PCD5X114.3
15X5-PCD5X114.3
15X5-PCD6X139.7
15X6-PCD5X114.3
15X6-PCD6X139.7
16X6-PCD8X165.1
16X7-PCD5X139.7
16X7-PCD6X139.7

More sizes of trailer wheel:

Model	Offset	Center hole	Bolt hole	PCD	Valve	Tyre	Thickness
5JX14	35	57	5-14.8 SR13	100	TR414	165/70R14	4MM
51/2JX15	47	67	5-14.8 60Single	114.3	TR414	184/70R15	4.25MM

Size	Part number	Offset	CB	Bolt	PCD	Load Lbs	Vent holes
6Jx14	LT734	45	φ59	4-φ14.5	φ100	1000	14-φ25
6Jx14	LT734A	52	φ67.1	4-φ14.5	φ108	980	14-φ25
6Jx14	LT734B	45	φ67.1	4-φ14.5	φ114.3	1000	14-φ25
6Jx14	LT734C	45	φ59	5-φ14.5	φ100	1000	14-φ25
6Jx14	LT734D	45	φ67.1	5-φ14.5	φ114.3	1050	14-φ25
6Jx14	LT734F	45	φ59	4-φ14.5	φ100	1000	14-φ35
6Jx14	LT734FA	45	φ59	4-φ14.5	φ100	1000	14-φ35
6Jx14	LT2773	45	φ56.1	4-φ14.5 60°	φ100	1000	14-φ35
6Jx14	LT2773A	45	φ54	4-φ14.5 60°	φ100	1000	14-φ35

Truck wheel rim sizes:

size	tyre size
size	tyre size
17.5×6.00	8R17.5 215/75R17.5
17.5×6.00	8R17.5 215/75R17.5
17.5×6.75	9R17.5
19.5x6.00	8R19.5
19.5x6.75	9R19.5 225/75R19.5
19.5x7.50	9R19.5
19.5x8.25	11R19.5
22.5×6.75	9R22.5 235/70R22.5
22.5×7.50	10R22.5 255/70R22.5
22.5×8.25	11R22.5
22.5×9.00	12R22.5 315/80R22.5
22.5×11.75	15R22.5 385/65R22.5
22.5×11.75	15R22.5 385/65R22.5
24.5x8.25	11R24.5
22.5×14.00	18R22.5

Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials

All products we supply will be with quality and guarantee...

For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.

For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.

Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
