| Prod Model: |
13.00x15.5 |
| Color: |
Silver / Yellow / White |
| Material: |
Steel |
| Type: |
Rim |
| Wheel Hub Diameter: |
16-20" |
| Certification: |
DOT |
| Drive Wheel: |
Trailer |
| Finishing: |
Painting |
| Wheel Hub Brand: |
Oasisland |
Product Description

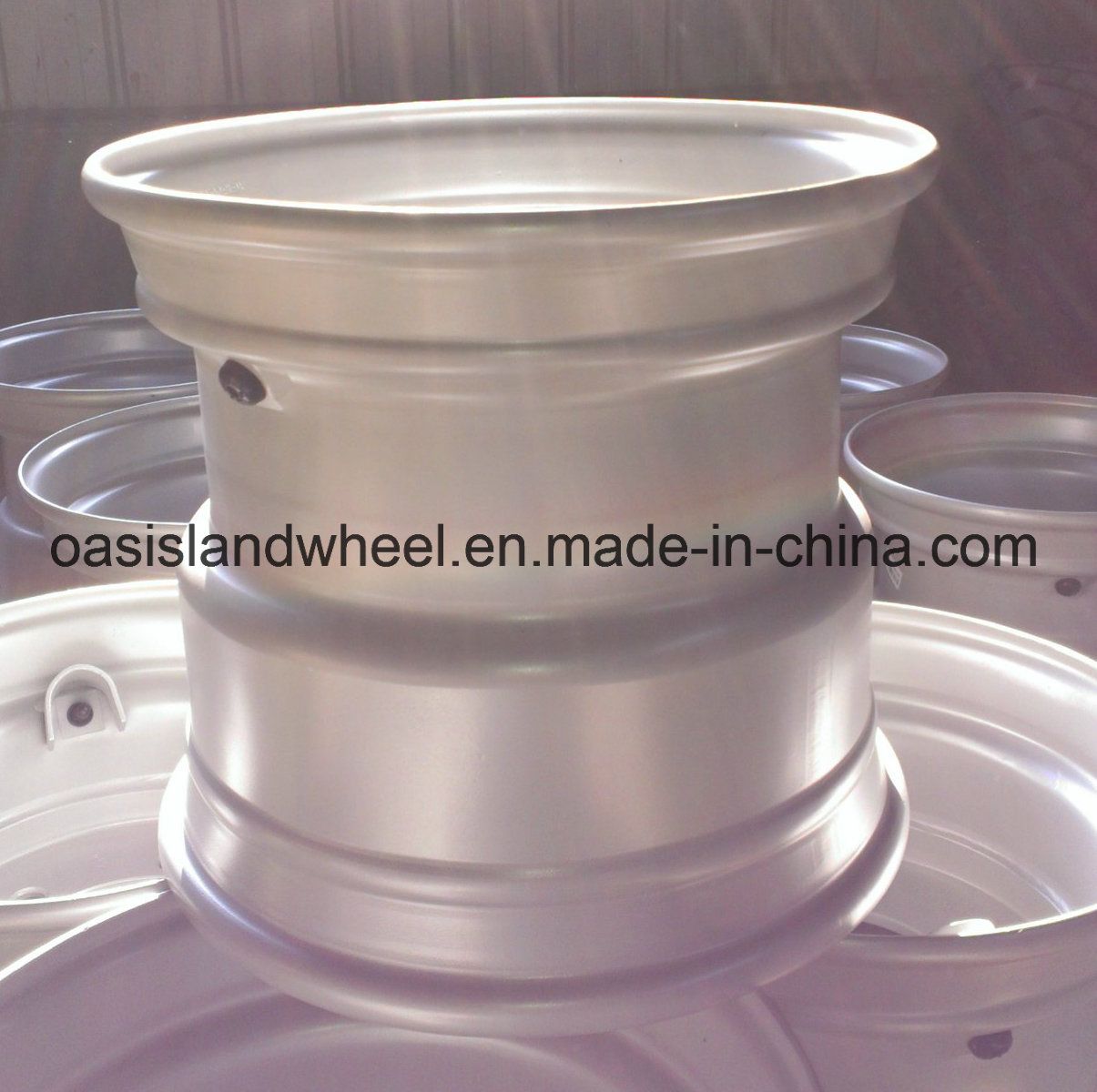

Steel Agricultural wheel (13.00x15.5) for implement trailerAdvantage:1.Full range of agricultural wheel rim apply to ETRTO/TRA from 12" to 54"
2.Optimizd 45°-rim flange shape
3.Optimized rim profile stiffness for fast driving vehicles
4.We offer rims with flange reinforcement straight from the factory
5. Humps designed to prevent the bead of the tire dropping into the wheel well during sudden deflation
6.Kurling on 6° and 15° rim to counteract the tendency for the tire to slip on the rim
TUV/DOT certificate approved
Standard: ETRTO/TRA/JATMA
Specification: 06/205/161 / 8/275/221 10/335/281
Gurantte: 2 years

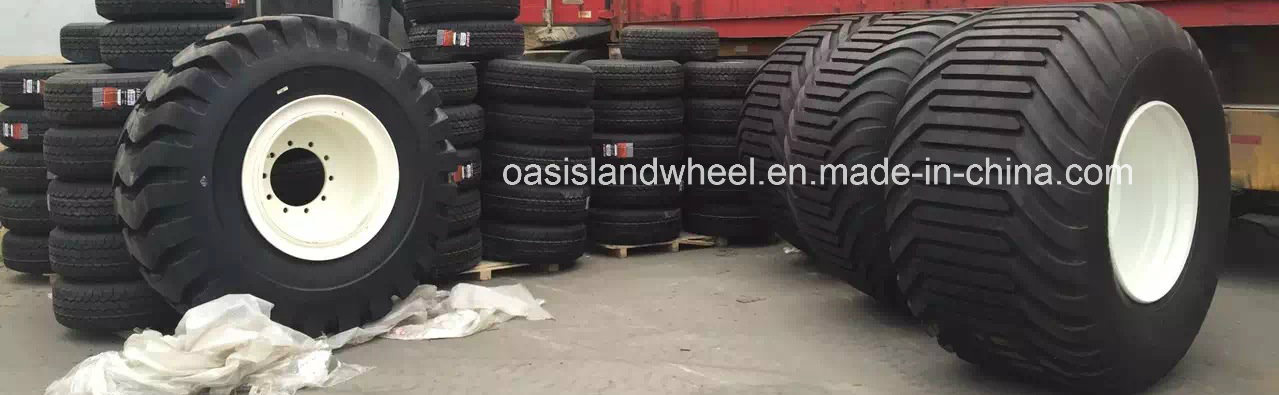

Complete wheel with tire assembly is available!
Packing: In pallets
Wheel Size
| inch | Description | Wheels | Tyres |
| 15.5" | one-piece 15° DC | 15.5X13.00 | 400/60-15.5 |
| 15.5X16.00 | 500/55-15.5 |
| 16.5" | one-piece 15° DC | 16.5X8.25 | 9.50R16.5 10-16.5 |
| 16.5X9.75 | 12-16.5EM 33X12.50R16.5 |
| 16.5X12 | 36x14.5-16.5 |
| 17.5" | one-piece 15° DC | 17.5X6.00HC | 215/75R17.5 8R17.5 |
| 17.5X6.75HC | 9R17.5 9.5R17.5 |
| 17.5X10.5 | |
| 19.5" | one-piece 15° DC | 19.5X11.75 | 15R19.5 |
| 19.5X6.00 | 8R19.5 |
| 19.5X6.75 | 8R19.5 245/70R19.5 235/75R19.5 |
| 19.5X7.50 | 10R19.5 265/70R19.5 |
| 19.5X8.25 | 285/70R19.5 |
| 19.5X13.00 | 15.0X19.5 |
| 19.5X14.00 | 425/55R19.5 435/50R19.5 445/45R19.5 18-19.5 MPT |
| 22.5" | one-piece 15° DC | 22.5X5.5 | |
| 22.5X6.00 | 8.5R22.5 |
| 22.5X6.75 | 9R22.5 |
| 22.5X7.50 | 10R22.5 |
| 22.5X8.25 | 11R22.5 |
| 22.5X9.00 | 12R22.5 315/80R22.5 |
| 22.5X9.75 | 315/80R22.5 |
| 22.5X11.25 |
1522.5 15R22.5 16.5/70R22.5 350/60R22.5 365/70R22.5
400/55R22.5 375/90R22.5 385/65R22.5 385/55R22.5 425R22.5 |
22.5X12.25 | 425/65R22.5 |
| 22.5X13.00 | 16.5R22.5 16.5/70R22.5 400/55R22.5 425/65R22.5 |
| 22.5X13.5 | 15-22.5 16.5-22.5 |
| 22.5X14.00 | 18R22.5 415/45R22.5 425/65R22.5 435/45R55.5 445/75R22.5 |
| 22.5X16.00 | 22.5-25.5 500/45-22.5 500/60R22.5 550/45-22.5 550/60-22.5 |
| 22.5X20.00 | 600/50-22.5, 600/55-22.5 650-50-22.5 |
| 22.5X24.00 | 700/40-22.5 750/45-22.5 |
| 24.5" | one-piece 15° DC | 24.5X8.25 | 11R24.5 |
| 24.5X11.75 | 385/55R24.5 385/55R24.5 |
| 24.5X13.00 | 16.5R24.5 425/65R24.5 |
| 24.5X15.00 | |
| 26.5" | one-piece 15° DC | 26.5X20.00 | 600/55-26.5 |
| 26.5X24.00 | 700/50-26.5 750/45-26.5 |
| Agricultural wheels with 5°- rim bead seats and DW-rim profile |
| Wheel | Fitted Tire | Wheel | Fitted Tire | Wheel | Fitted Tire |
| DW15Lx24 | 16.9-24 | DW20x30 | 23.1-30 | DW20x38 | 650/65-38 |
| DW16Lx24 | 19.5L-24 18.4-24 | DW20x32 | 23.1-32 | DW23x38 | 710/70R38 |
| DW18Lx24 | 20.5-24 | DW21x32 | 24.5R32 | DW16x42 | 18.4-42 |
| DW20x26 | 23.1-26 24L-26 | DW27x32 | 30.5L-32 800/65R32 | DW18x42 | 20.8-42 |
| DW25x26 | 30.5L-26 28L-26 | DW10x34 | 12.4-34 | DW23x42 | 710/70R42 |
| DW15Lx28 | 16.9-28 | DW15x34 | 16.9-34 | DW27x42 | 900/60-42 |
| DW18x28 | 18.4-28 | DW16x34 | 18.4-34 | DW10x46 | 11.2-46 |
| DW20x28 | 21L-28 | DW20x34 | 23.1-34 | DW12x46 | 12.4-46 |
| DW14x30 | 16.9-30 | DW16x38 | 18.4-38 | DW13x46 | 14.9-46 |
| DW16Lx30 | 18.4-30 23.1-30 | DW18x38 | 20.8-38 600/65-38 | DW16x46 | 18.4-46 |
| Agricultural flotation wheels with 15°-rim beat seat |
| Wheel | Fitted Tire | Wheel | Fitted Tire |
| 22.5x16.00 | 500/60-22.5 550/60-22.5 550/45-22.5 | 26.5x24.00 | 700/50-26.5 |
| 22.5x20.00 | 600/50-22.5 650/50-26.5 600/55-22.5 | 26.5x28.00 | 800/45-26.5 |
| 22.5x24.00 | 700/50-22.5 | 30.5x20.00 | 600/50-30.5 800/60-30.5 |
| 26.5x16.00 | 500/60-26.5 | 30.5x24.00 | 650/80-30.5 700/50-30.5 750/60-30.5 |
| 26.5x20.00 | 600/55-26.5 | 30.5x28.00 | 800/45-30.5 800/55-30.5 850/50-30.5 |
| Agricultural irrigation wheels |
| Wheel | Fitted Tire | Wheel | Fitted Tire | Wheel | Fitted Tire |
| W8x20 | 9.5-20 | 8.25x22.5 | 9.5-22.5 | W12x24 | 13.6-24 14.9-24 |
| DW10x20 | 11.2-20 | W8x24 | 9.5-24 | 8.25x24.5 | 9.5-24.5 |
| DW11x20 | 13.6-20 | W10x24 | 11.2-34 | W10-38 | 11.2-38 |
