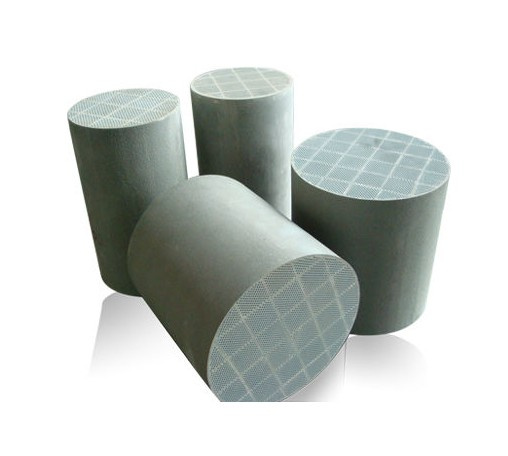

Sic-based Diesel Particulate Filter is a high-tech product. It is mainly used to produce new generation of diesel clean & emission system to
fulfill the carbon particulate cleaning target of the EUIII, EUIV standards
Working principle for Sic-based Diesel Particulate Filter: It can reduce 96.5% carbon particulates emission by holding up
the carbon particulates in tail gas of diesel at first, then clear up carbon particulates by means of
electric heat, fuel burner etc., finally to meet carbon particulate emission standards.

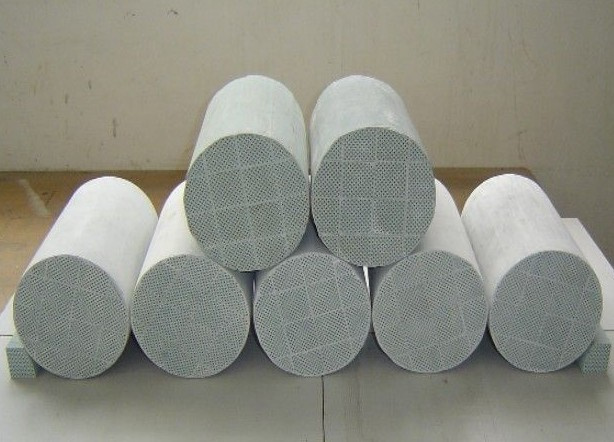

Diesel Particulate Filter adopts structure of honeycomb. It sets up independent opening and
blocking up passages in both ends and the waste gas enters from one open end, then goes
through the porous beehive wall, and finally discharges from adjoining passage. The carbon
particulates are left over on passage wall because they are too big to pass through wall hole
and won't be discharged to air.
SpecificationsGood thermal shock
High Porosity
Less backpressure
Long service span
Customization available
|
Size(Diameter × length) |
Filter volume(Liter) |
Cell density |
Shape |
|
mm |
Inches |
|
Φ70×152 |
Dia.2.76×6 |
0.58 |
100/200CPSI |
Rotundity |
|
Φ144×152 |
Dia.5.66×6 |
2.48 |
100/200CPSI |
Rotundity |
|
Φ144×205 |
Dia.5.66×8 |
3.34 |
100/200CPSI |
Rotundity |
|
Φ144×254 |
Dia.5.66×10 |
4.13 |
100/200CPSI |
Rotundity |
|
Φ144×305 |
Dia.5.66×12 |
4.96 |
100/200CPSI |
Rotundity |
|
Φ170×254 |
Dia.6.69×10 |
5.76 |
100/200CPSI |
Rotundity |
|
Φ190×200 |
Dia.7.48×7.87 |
5.67 |
100/200CPSI |
Rotundity |
|
Φ228×152 |
Dia.8.97×6 |
6.20 |
100/200CPSI |
Rotundity |
|
Φ228×254 |
Dia.8.97×10 |
10.37 |
100/200CPSI |
Rotundity |
|
Φ228×305 |
Dia.8.97×12 |
12.45 |
100/200CPSI |
Rotundity |
|
Φ240×240 |
Dia.9.45×9.45 |
10.85 |
100/200CPSI |
Rotundity |
|
Φ240×254 |
Dia.9.45×10 |
11.48 |
100/200CPSI |
Rotundity |
|
Φ240×305 |
Dia.9.45×12 |
13.79 |
100/200CPSI |
Rotundity |
|
Φ260×305 |
Dia.10.23×12 |
16.19 |
100/200CPSI |
Rotundity |
|
Φ270×305 |
Dia.10.63×12 |
17.45 |
100/200CPSI |
Rotundity |
|
Φ286×305 |
Dia.11.26×12 |
19.58 |
100/200CPSI |
Rotundity |
|
(98×195)×154 |
(3.8×7.7)×6 |
2.60 |
100/200CPSI |
Race track |
|
(98×195)×205 |
(3.8×7.7)×8 |
3.50 |
100/200CPSI |
Race track |
|
(98×195)×254 |
(3.8×7.7)×10 |
4.30 |
100/200CPSI |
Race track |
|
(98×195)×305 |
(3.8×7.7)×12 |
5.20 |
100/200CPSI |
Race track |
