Metal Honeycomb Substrate Catalytic Converter
| Price: |
US $ 11.5-12.5piece (depend on size) |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10piece (depend on size) |
| Pay Type: |
L/C,T/T,Western Union |

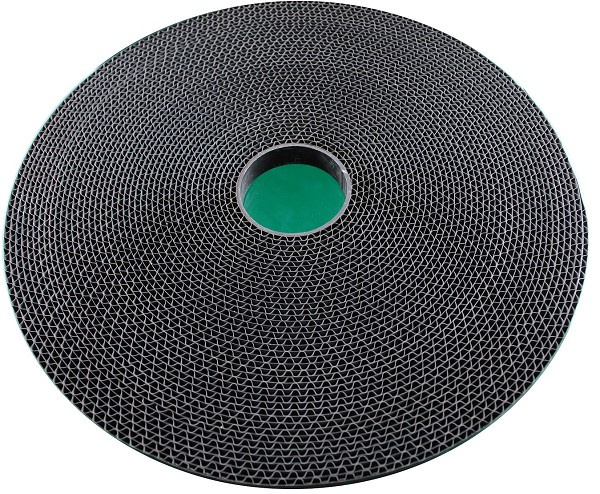

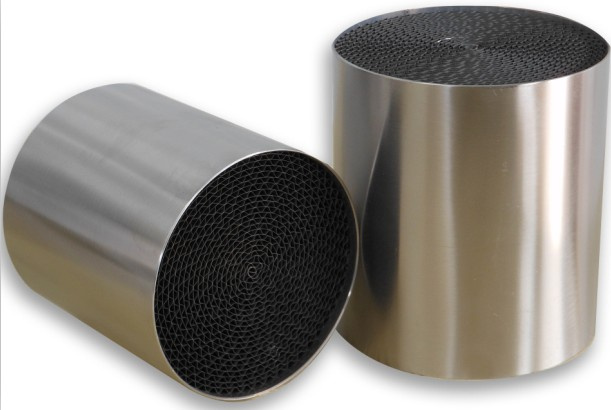

Metal Honeycomb Substrate

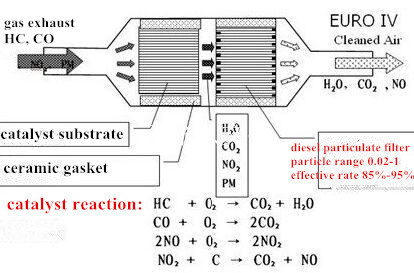

Honeycomb metal substrate has the advantages of fast burning, small volume, high mechanical
strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. We can
make 100CPSI, 200CPSI, 300CPSI, 400CPSI AND 600CPSI honeycomb metallic substrate

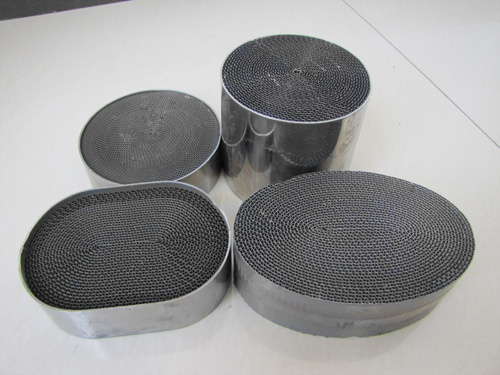

in various shapes, Such as round, oval, racetrack and other customized shapes. We constantly
improve the quality and service; our products get high reputation from customers.
Specifications
Suitable for Auto, diesel, motorcycle
Shape: Rotundity, oval, race track, rectangle
Euro II, III, IV
Customization available
| Shape | Shell size(mm) | Core size(mm) | Cell density(CPSI) |
| Rotundity | Φ 30×22 | Φ 28×20 | 100/200/300/400 |
| Rotundity | Φ 35×20 | Φ 33×20 | 100/200/300/400 |
| Rotundity | Φ 35×30 | Φ 33×30 | 100/200/300/400 |
| Rotundity | Φ 35×40 | Φ 33×40 | 100/200/300/400 |
| Rotundity | Φ 35×50 | Φ 33×50 | 100/200/300/400 |
| Rotundity | Φ 35×60 | Φ 33×60 | 100/200/300/400 |
| Rotundity | Φ35 × 70/100/130 | Φ33 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ42 × 70/100/130 | Φ40 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ45 × 70/100/130 | Φ43 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ63,5 × 85/100/130 | Φ60,5 × 74,5/90/120 | 200/300/400 |
| Rotundity | Φ73 × 70/100/130 L | Φ70 × 60/90/120 | 200/300/400 |
| Rotundity | Φ93 × 70/100/130 | Φ90 × 60/90/120 | 200/300/400 |
| Rotundity | Φ100,3 × 100/130 | Φ98,3 × 90/120 | 600 |
| Rotundity | Φ144 × 150/152,4 | Φ142 × 140/142,4 | 200/300/400 |
| Rotundity | Φ190 × 200 | Φ188 × 190 | 200/300/400 |
| Rotundity | Φ420 × 100/130 | Φ416 × 90/120 | 300/400 |
| Race track | 123×63×85 | 120×60×75 | 200/300 |
| Race track | 123×63×100 | 120×60×90 | 200/300 |
| Race track | 78,5×52×104 | 76,5×50×90 | 200/300 |
| Prod Model: |
HMS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Ss304, Ss316 |
| Specification: |
Diameter<120mm/Diameter<200mm, etc |
| Cell: |
100-400cpsi |
| Application: |
Auto/Motorcycle Gas Treatment |
| Body Material: |
Steel |
| Discharge Standard: |
Euro V |
| Certification: |
TS16949 |
| Component: |
Catalytic Converter |
