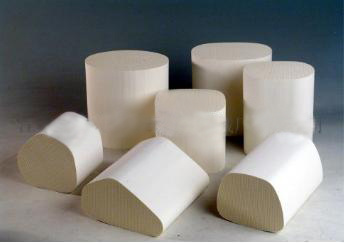

Ceramic Catalytic Converter Substrate Used in Cars
| Price: |
US $ 11.5-12.5piece (depend on size) |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10piece (depend on size) |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Honeycomb Ceramic Catalyst substrate used in cars:
used as catalystic converters of gasoline engines, the honeycomb ceramic catalyst substrates are coated by catalyst; at the same time, we improve the specific surface areas and cut down the heat capacity to increase the atalytic function. When the noxious emissions pass through, HC, CO and NOX will be converted into harmless components.
Diesel particulate filter bases on honeycomb ceramic substrate, whose materials are cordierite or carborundum. It could trap the particulate matter from disel exhaust emissions, so they are applied on cars, buses, trucks and so on.
Advantages:
>High specific surface area: ensure exhaust gas could contact with catalyst enough.
>Stable water absorption: guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it is no waste for too thick coating.
>Warm-up characters: after starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time.
>Low exhaust resistance: ask exhaust resistance of substrate to engine low, so that it will not affect the performance of engine.
>High intensity: substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
>Perfect assembly: substrates are parts of exhaust; perfect appearance and exact dimension could ensure assembly perfect.
| Item | Index |
Heat Property | Coefficient of heat expansion (40-800celsius degree) (x10-6/celsius degree) | <1.0 |
| Heat Property | Specific heat [J/(g.k)] | 0.84 |
| Heat Property | Softening temperature (celsius degree) | 1400 |
| Heat Property | Melting point (celsius degree) | 1455 |
| Heat Property | The highest working temperature (celsius degree) | 1350 |
| Physical Property | Fine mesh bulk (cm3/g) | 0.2 |
| Physical Property | Apparent porosity (%) | 36 |
| Physical Property | Average fine aperture (um) | 4 |
| Mechanical Property | Compress breaking strength (Mpa) | Aaxes>8.3 Baxes>1.1 Caxes>0.1 |
| Thermal Shock Resistance | Aire cooled temperature difference (celsius degree) | >650 |
| Prod Model: |
HCS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cordierite |
| Common Specification: |
Diameter<120mm/Diameter<200mm,etc |
| Discharge Standard: |
Euro IV |
| Certification: |
TS16949 |
| Component: |
Catalytic Converter |
| Body Material: |
Ceramic |
