Steel Body Single Side Spot Welder

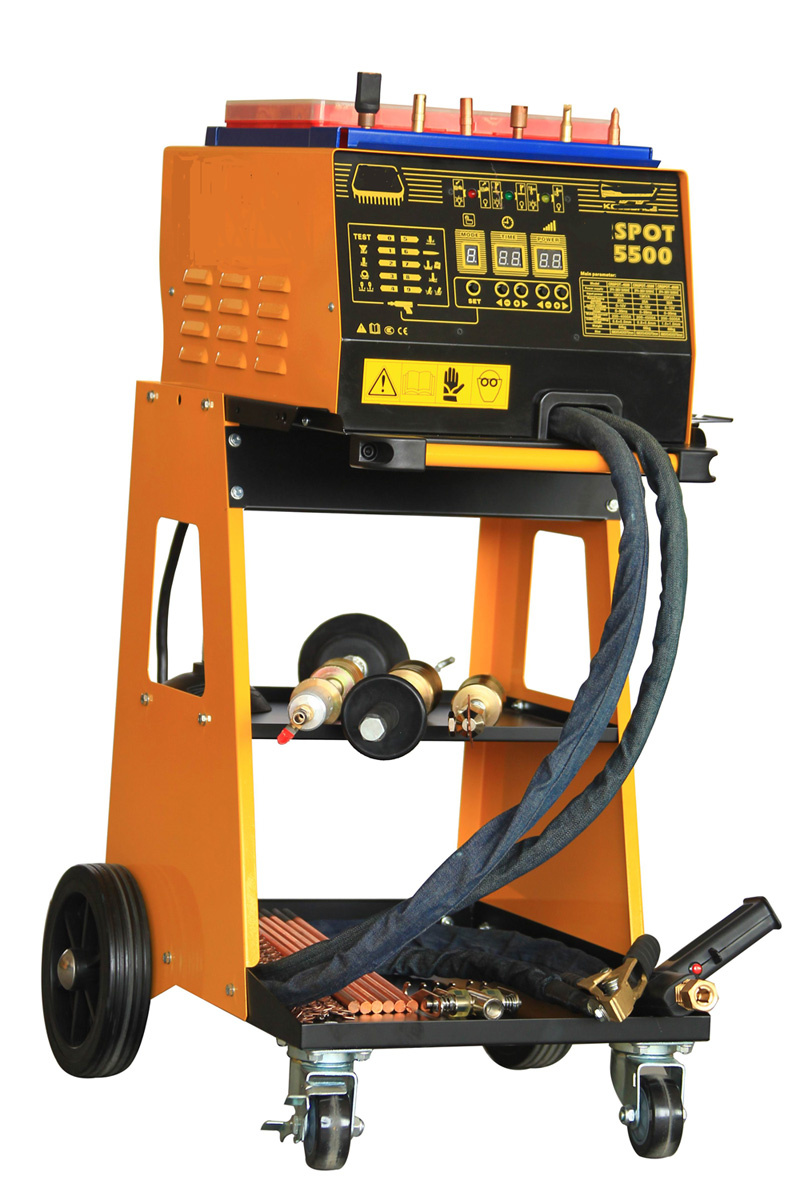

Name: Steel Body Single Side Spot Welder
Brand: ibuyautoparts.com
SKU: 612085514
Availability: InStock
Rating: 4.5 (27 reviews)

Price:	US $ 200-1000/Piece
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

The S-5500/6500 is integrated with functions of advanced washer welder, waved welding wire welder and spot welder in one.

1, Under control of SCR circuit, the output welding current can be stepless adjusted.

2, Appearance designed under national patent protection, convenient to move, aesthetics and practical.

3, Simple and practical operational interface and easily set current time, easy to use for the operator.

4, It is ideal for welding repair of ordinary.

Model	S-5500	S-6500
Input voltage	2PH/380V, 50/60Hz	2PH/380V, 50/60Hz
Input power (KVA)	19	22
Input current (A)	20	25
Max. output current (A)	5800	6800
Single side welding thickness (mm)	0.6+0.8/0.8+1.0/1.0+1.2	0.6+0.8/0.8+1.0/1.0+1.2
Output voltage	Welding materials melting AC4-8V Carbon rod heating AC3.5-5V Spot and butt welding AC8-10V	Welding materials melting AC4-8V Carbon rod heating AC3.5-5V Spot and butt welding AC8-10V
Timer regulation range (S)	0.1-1.2 S (99 steps)	0.1-1.2 S (99 steps)
Current and voltage regulation	Digital stepless regulation (99 steps)	Digital stepless regulation (99 steps)
Size (mm)	615× 435× 990	615× 435× 990
Weight (Kg)	60	62

Prod Model:	S-5500/6500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Steel Body Single Side Spot Welder:	5800A Spot Welder
Certification:	CE
Update Method:	by Internet
Type:	Auto Body Repair
